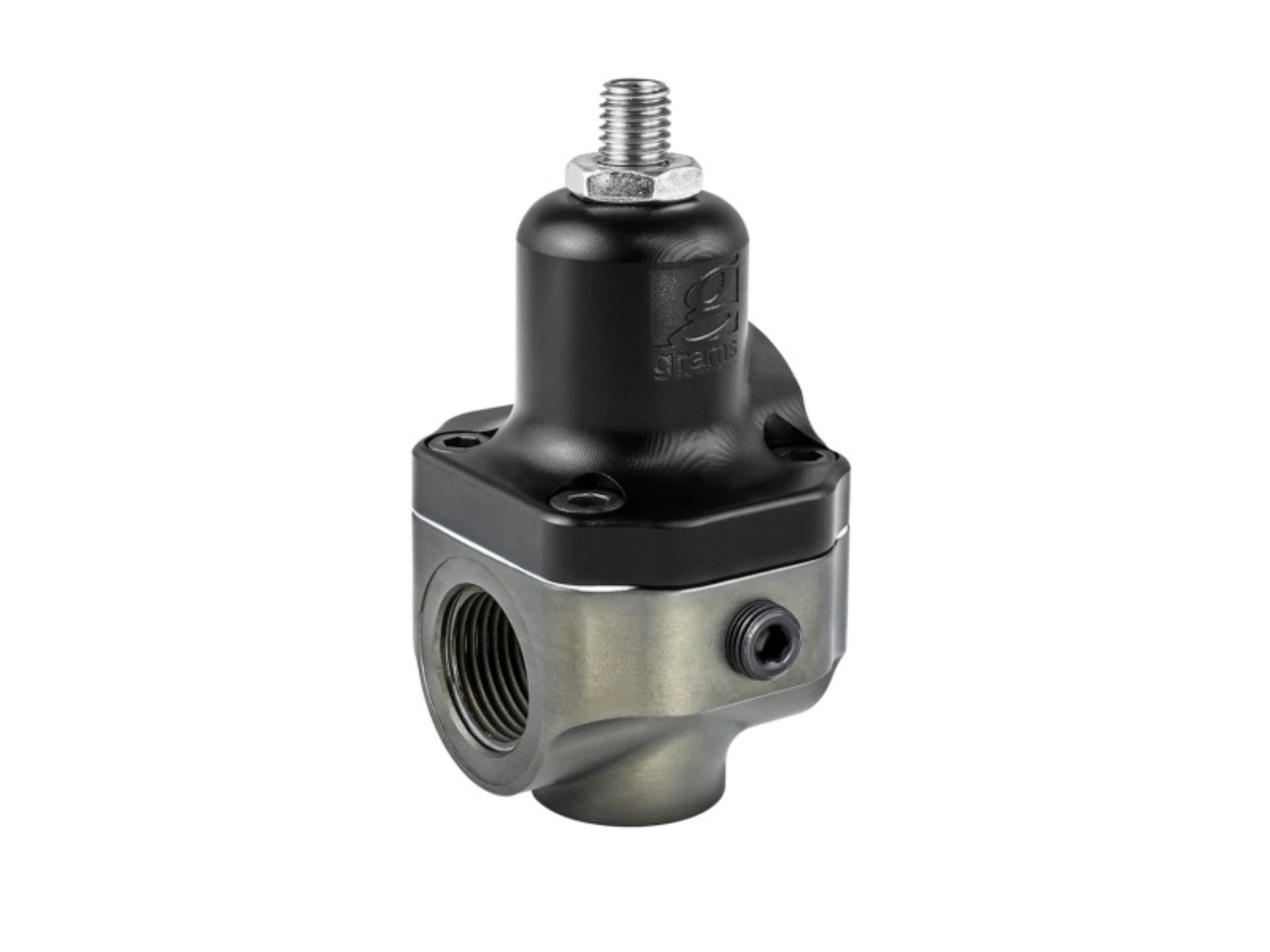

Grams Performance 35-115 PSI Fuel Pressure Regulator

Control your fuel system with the Grams Performance fuel pressure regulator. These regulators feature a black anodized top and high quality 6061 hard anodized aluminum bottom. At the heart of the regulator is a durable custom diaphragm, a stainless steel internal orifice, and a high pressure spring that allows for pressure adjustment ranging from 30 - 118 psi (2 – 8 bar). Each regulator features two AN -10 ORB inlets, one AN -06 ORB outlet, boost/vacuum port, gauge port and provisions for a mounting bracket. DID YOU KNOW? Grams Performance regulators are designed with simplicity and practicality in mind: a hard anodized aluminum bottom allows for all fuels types to flow freely through diaphragm.

Fuel Pressure Regulator; 35-112 psi./2.41-7.72 Bar; Compatible w/Gasoline/E85; 2-Port EFI; 1/8 in. NPT Gauge Port; For Fuel Injection;

Grams Performance 35-115 PSI Fuel Pressure Regulator

1/8 in. - 3.175mm NPT Boost/Vacuum Port

Compatible With All Fuel Types

M6x1.0 Mounting Location Size

One Outlet/Return at -06 ORB

30 - 118 PSI Pressure Range

1:1 Boost/Vacuum Rise Ratio

6061 Hard Anodized Aluminum

Fuel Pressure Regulator

Two Inlets At AN-10 ORB

Rebuildable Internal

FuelInjPresrRgultr

Black Anodized Top
