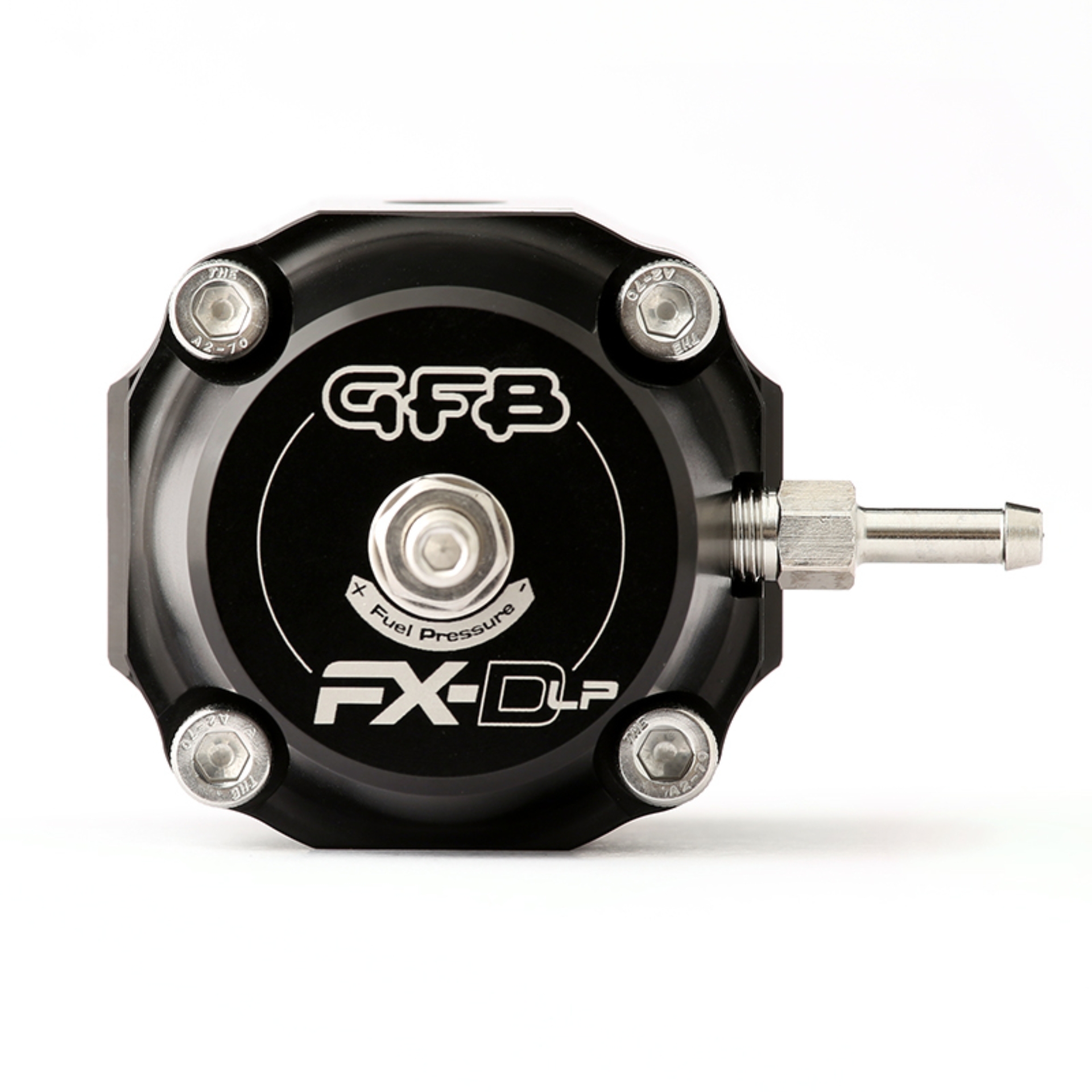

GFB FX-D Low Pressure Fuel Regulator w/8AN Ports

For engines that use an EFI type pump with a carburetor, the GFB FX-D LP bypass regulator is the perfect solution for fuel delivery. Dual -8AN inlet ports offer installation flexibility, whilst the two 1/8" NPT gauge ports allow the use of both a mechanical gauge and electronic pressure sensor if required. The FX-D LP features a Teflon valve seat for superior fuel pressure retention after shutdown, leading to easier starting. We also use a double layer reinforced diaphragm and stainless steel valve that offers a burst strength in excess of 500psi!

• Suitable for unleaded, ethanol, and diesel fuels • Teflon Co Polymer Seat with stainless valve • Fully Sealed Upper Boost Vacuum Reference Chamber • Multiple Body Ports Allow for A Large Variety of Setup Options

GFB's 8070-LP FX-D Low Pressure Fuel Regulator is adjustable from 2-10psi and features two -8AN ORB (O-Ring Boss) inlet ports, two 1/8" NPT gauge ports, and one -8AN ORB outlet port.

Low Pressure Fuel Regulator for Carburetor Applications

GFB FX-D Low Pressure Fuel Regulator w/8AN Ports

GFB FX-D Low Pressure Fuel Regulator

Fuel Pressure Regulator

FX-D LP Fuel Reg

Universal
