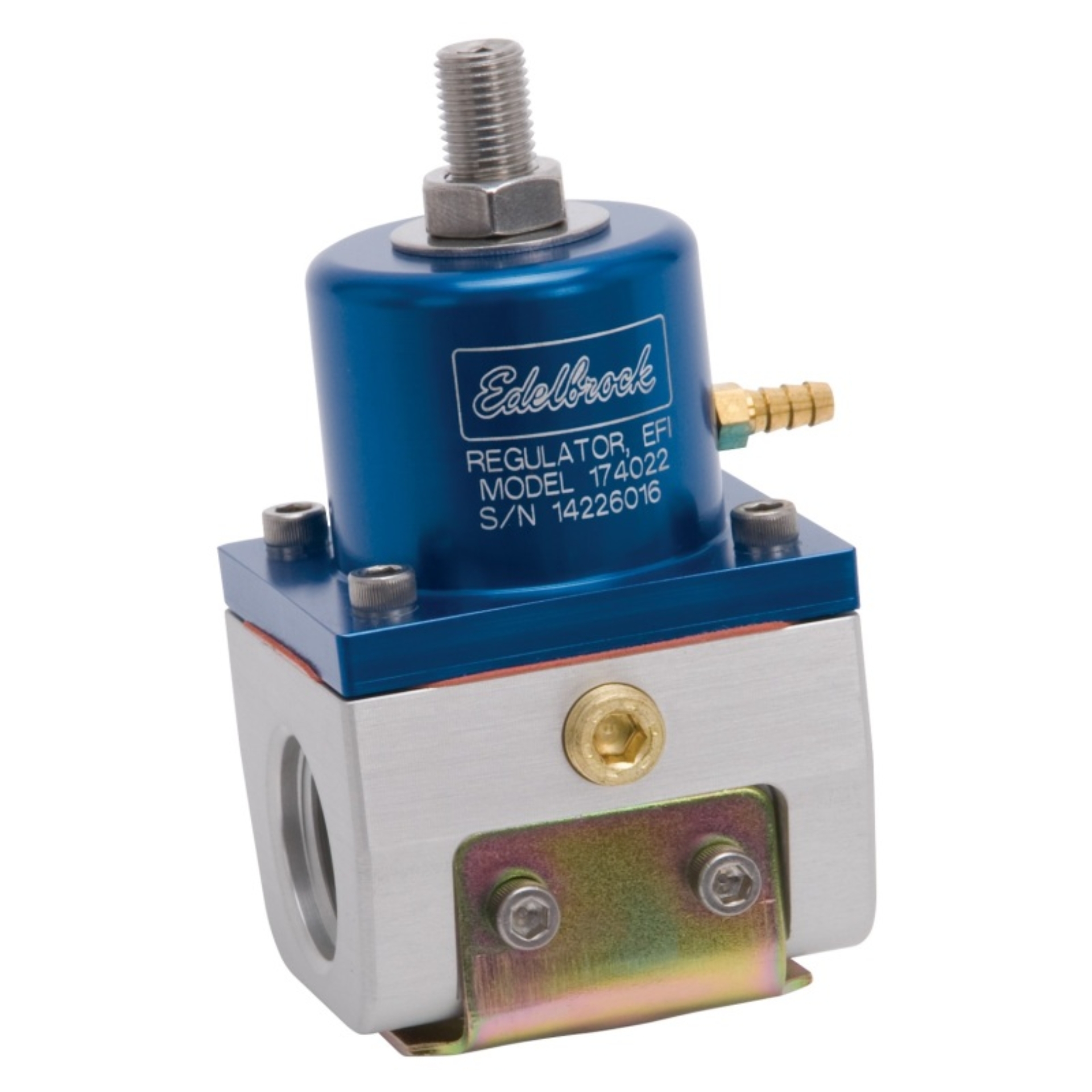

Edelbrock fuel pressure regulators #174022 are machined from aircraft quality aluminum for those who demand the best. These EFI fuel pressure regulators have an internal diaphragm made of fluorosilicone to ensure high temperature protection resulting in an extended life. They are compatible with all grades of gasoline, ethanol, methanol and E85 fuels. These regulators will hold fuel system pressure for at least 20 minutes after pump shutdown. Mounting bracket and hardware are included. Each regulator features a vacuum/boost compensating port for a supercharger, turbo or intake manifold vacuum connection.
Edelbrock fuel pressure regulators #174022 is machined from high quality aluminum. They are compatible with all grades of gasoline, ethanol, methanol and E85 fuels. Will hold fuel pressure for at least 20 min after pump shutdown.
REGULATOR EFI FUEL PRESSURE-10 AN INLET/OUTLET PORTS (X2)/6 AN RETURN PORT (X1) W/1/8in. NPT PORT ON BODY BLUE COVER/CLEAR BODY ANODIZED FINISH
Edelbrock; EFI; Fuel Delivery; Fuel Pressure Regulator; Adjustable EFI Applications;?174022
Edelbrock Fuel Pressure Regulator EFI 180 GPH 35-90 PSI -10In/Out -6 Return Blue/Clear
EFI Fuel Pressure Regulator -10 AN (180 GPH) in Blue/Clear Finish
EFI Fuel Pressure Regulator-10 AN (180 GPH) in Blue/Clear Finish
Mounting Bracket/Fittings/Hardware Included
Edel Fuel Injection Pressure Regulator
Fuel Injection Pressure Regulator
EFI Fuel Pressure Regulator
