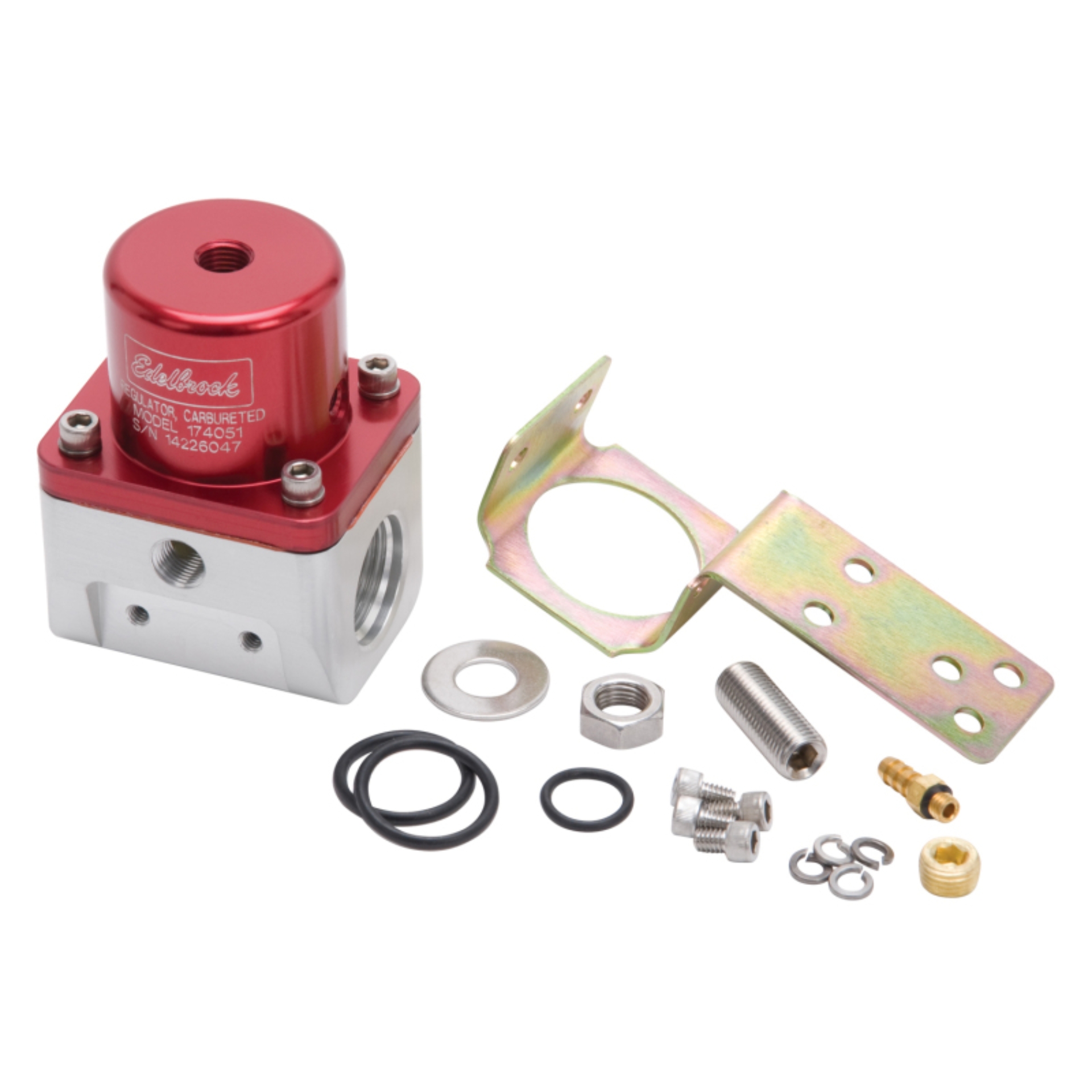

Edelbrock Fuel Pressure Regulator Carbureted 180 GPH 5-10 PSI -10 In/Out -6 Return Red/Clear

This Edelbrock fuel pressure regulator #174051 is machined from aircraft quality aluminum for those who demand the best. This carbureted fuel pressure regulator has an internal diaphragm made of fluorosilicone to ensure high temperature protection resulting in an extended life. This Edelbrock fuel pressure regulator #174051 is compatible with all grades of gasoline, ethanol, methanol and E85 fuels. Pressure regulation slope is 0.75 psi/gal of flow rate change. Will hold fuel system pressure for at least 20 minutes after pump shutdown. Developed for optimum compatibility with Edelbrock electric fuel pumps. This regulator is available with 1/8" NPT gauge port and a boost reference fitting for blow through or pressurized carburetor applications (even beyond 30 psi of boost).

174051; Edelbrock; fuel pressure; Fuel pressure regulator; Regulator; Carburetor; Carb; pressure; adjustable; boost port; Vac port; vacuum port; gauge port; return port; bypass-style; 180 GPH

Edelbrock Fuel Pressure Regulator Carbureted 180 GPH 5-10 PSI -10 In/Out -6 Return Red/Clear

Carbureted Adjustable Bypass Fuel Pressure Regulator (180 GPH) in Red Finish

Edelbrock Carbureted Bypass Style Fuel Pressure Regulator, 180 GPH

Mounting Bracket/Fittings/Hardware Included

Fuel Pressure Regulator
