Aeromotive A1000 Carbureted Bypass Regulator - 2-Port

Aeromotive Part number: 13204 In stock

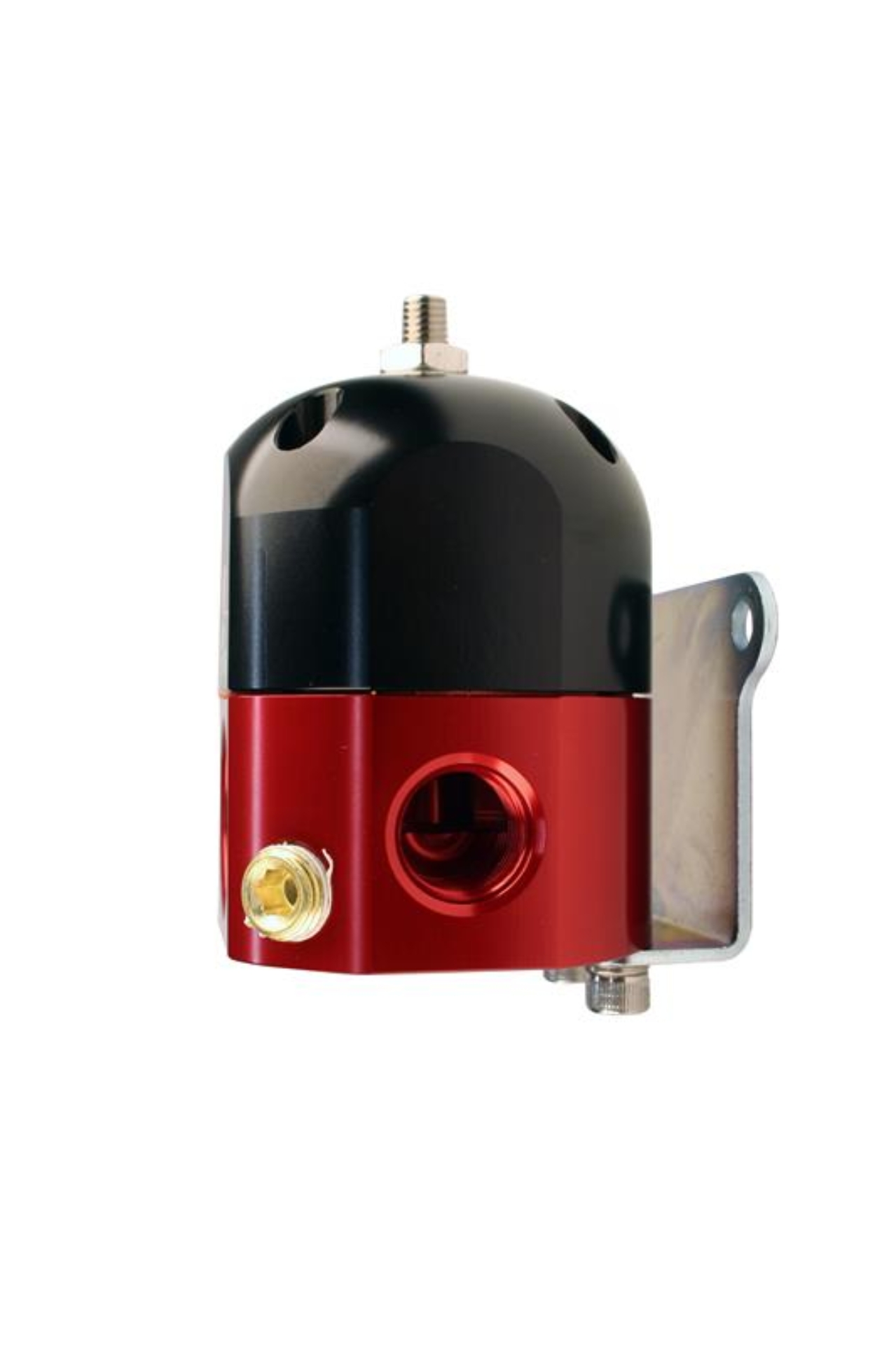

Picture of Aeromotive A1000 Carbureted Bypass Regulator - 2-Port Click image to zoom
Ready for checkout Secure this part for your build
$254.71
Secure checkout Availability and delivery details shown below Ask for fitment help
Availability: In stock
Part number: 13204
Manufacturer: Aeromotive
Aeromotive A1000 Carbureted Bypass Regulator - 2-Port
Be the first to review this product
In stock — usually ships within 1 business day

The A1000 Bypass Regulator was designed for use with our A1000 Fuel Pump or similar style EFI pumps in a carbureted application. This regulator is perfect for naturally aspirated or ?blow-through? supercharged engines. Base fuel pressure adjustable from 3-15 PSI. (1) ORB-10 inlet port and (1) ORB-08 return port. P/N 13204 provides (2) ORB-06 outlet ports and 1/8' NPT gauge port. Fuel pressure rises on a 1:1 ratio when referencing boost. Bypass design provides the ultimate, dynamic fuel delivery system. Ideal for converting from fuel injection to carburetion using the stock, in-tank pump. EFI conversions will require a larger-than-stock return line for proper low pressure control.?Note: Requires AN-08 return line from bottom of regulator back to top of the tank.

The A1000 Bypass Regulator was designed for use with our A1000 Fuel Pump or similar style EFI pumps in a carbureted application. This regulator is perfect for naturally aspirated or blow-through supercharged engines. Base fuel pressure adjustable from 3-15 PSI. (1) ORB-10 inlet port and (1) ORB-08 return port. P/N 13204 provides (2) ORB-06 outlet ports and 1/8' NPT gauge port. Fuel pressure rises on a 1:1 ratio when referencing boost. Bypass design provides the ultimate, dynamic fuel delivery system. Ideal for converting from fuel injection to carburetion using the stock, in-tank pump. EFI conversions will require a larger-than-stock return line for proper low pressure control. Note: Requires AN-08 return line from bottom of regulator back to top of the tank.

A1000 carbureted bypass regulator; adjustable from 3-15 PSI; perfect for naturally aspirated engines; bypass desing provides the ultimate, dynamic fuel delivery system.

Aeromotive A1000 Carbureted Bypass Regulator - 2-Port

A1000 Carbureted Bypass Regulator - 2-Port.

A1000 Carbureted Bypass Regulator

Fuel Pressure Regulator

Aeromotive Regulator

Regulator

No vehicle listing found We do not have a vehicle-specific fitment row for this product yet.

This does not automatically mean the part is universal. Send us your year, make, model, trim, and the part number before ordering.
