The Edelbrock part #1032 Non-Progressive Linkage Kits are designed to facilitate the synchronous operation of multiple two-barrel carburetors. The #1032 kit is designed to support dual two-barrel applications and it should also be noted that the #1033 Progressive Linkage Kit can be installed in a non-progressive configuration to operate dual or triple carburetor applications- If you have another make or model of manifold, it may be necessary to alter some of the details of this installation. This kit has a relatively universal application and can be safely installed in a variety of configurations- It is recommended that the linkage be installed with the manifold out of the vehicle, sitting on a level surface. A throttle linkage control arm and ball end stud are provided to connect to the vehicle's throttle rod or cable. Identify where the vehicle's throttle rod or cable will terminate so that the linkage control arm can be mounted to the linkage operating shaft accordingly. Also make note of any valve cover features that could interfere with the linkage, such as breathers and/or PCV valves.- All adjustments made to the carburetor arms should be conducted with all carbs at the wide open throttle position to ensure synchronized operation of such- Be sure to always check that the arms will not become inverted after any adjustment. Some trial and error will berequired to achieve a properly balanced set up- Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage
It is recommended that the linkage be installed with the manifold out of the vehicle, sitting on a level surface. A throttle linkage control arm and ball end stud are provided to connect to the vehicle's throttle rod or cable. Identify where the vehicle's throttle rod or cable will terminate so that the linkage control arm can be mounted to the linkage operating shaft accordingly. Also make note of any valve cover features that could interfere with the linkage, such as breathers and/or PCV valves.
The Edelbrock part #1032 Non-Progressive Linkage Kits are designed to facilitate the synchronous operation of multiple two-barrel carburetors. The #1032 kit is designed to support dual two-barrel applications and it should also be noted that the #1033 Progressive Linkage Kit can be installed in a non-progressive configuration to operate dual or triple carburetor applications.

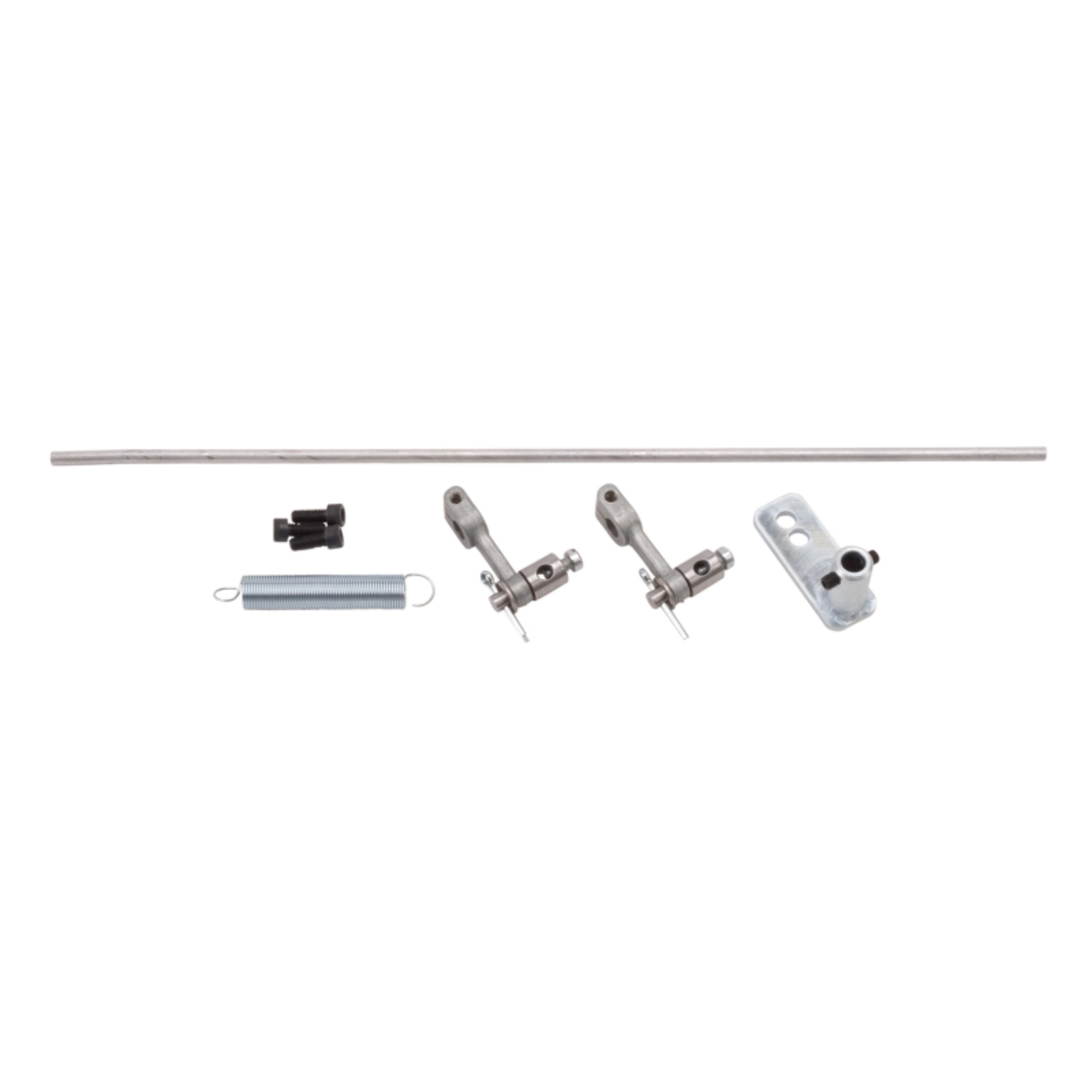

The Edelbrock 1032 throttle linkage kit is an adjustable non-progressive linkage kit for dual (2) Edelbrock 94 2 bbl carburetors. The kit comes with return spring and bracket, linkage with provision for kick down and throttle connection.
If you have another make or model of manifold, it may be necessary to alter some of the details of this installation. This kit has a relatively universal application and can be safely installed in a variety of configurations.
Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.
Be sure to always check that the arms will not become inverted after any adjustment. Some trial and error will be required to achieve a properly balanced set up.
2 bbl; 1032; Edelbrock; 2 Deuce; Dual 2 Barrell; 2 Barrell; small block Chevy; 3 bolt; linkage; throttle linkage; progressive linkage; C-357-B; 2-Carbs; SBC
All adjustments made to the carburetor arms should be conducted with all carbs at the wide open throttle position to ensure synchronized operation of such.
94â„¢ Carburetor Straight Throttle Linkage Kit for Dual Carb Set-up
Edelbrock Two Barrel Carb Non Progressive Throttle Linkage Kit 2X2
Carburetor Straight Throttle Linkage Kit for Dual Carb Set-up
TWO BARREL CARB NON PROGRESSIVE THROTTLE LINKAGE KIT 2 X 2
Edelbrock 94™ Straight Throttle Linkage Kit
Carburetor Accelerator Linkage Kit
Edelbrock Throttle Linkage Kit
