If you're concerned about redline RPM and the possibility of over-reving the engine, the FAST E6 Ignition Control is also available with an adjustable rev limiter. Not only is our rev limiting technology extremely accurate, it is the smoothest limit available thanks to our advanced sequential limiting technology. The RPM limit is easily set with two rotary dials on the side of the ignition and can be adjusted within 100 RPM increments all the way through 9,900 RPM. This E6 is supplied with Weatherpak connector and harness to help route the wiring, as well as sturdy vibration mounts. It can be used on distributor triggered, 4, 6 and 8-cylinder engines and is compatible with FAST EFI systems or carbureted applications.
Built-in engine protecting rev limiter is adjustable in 100 RPM increments up to 9,900 RPM. Sequential rev limiting technology produces smooth, accurate rev limiting action. Multi-strike CD ignition produces high output through redline RPM
Multi-Spark CD, for race or street, up to 14.5:1compression ratio, nitrous-oxide, supercharged and turbo
Bigger rotary switches with precise "Click-In" detentsfor easy rev limit adjustments
Sequential rev limiting stops engine damaging"popping and banging" at rev limit
Fully potted with new, soft urethane for heat, dirt andmoisture protection

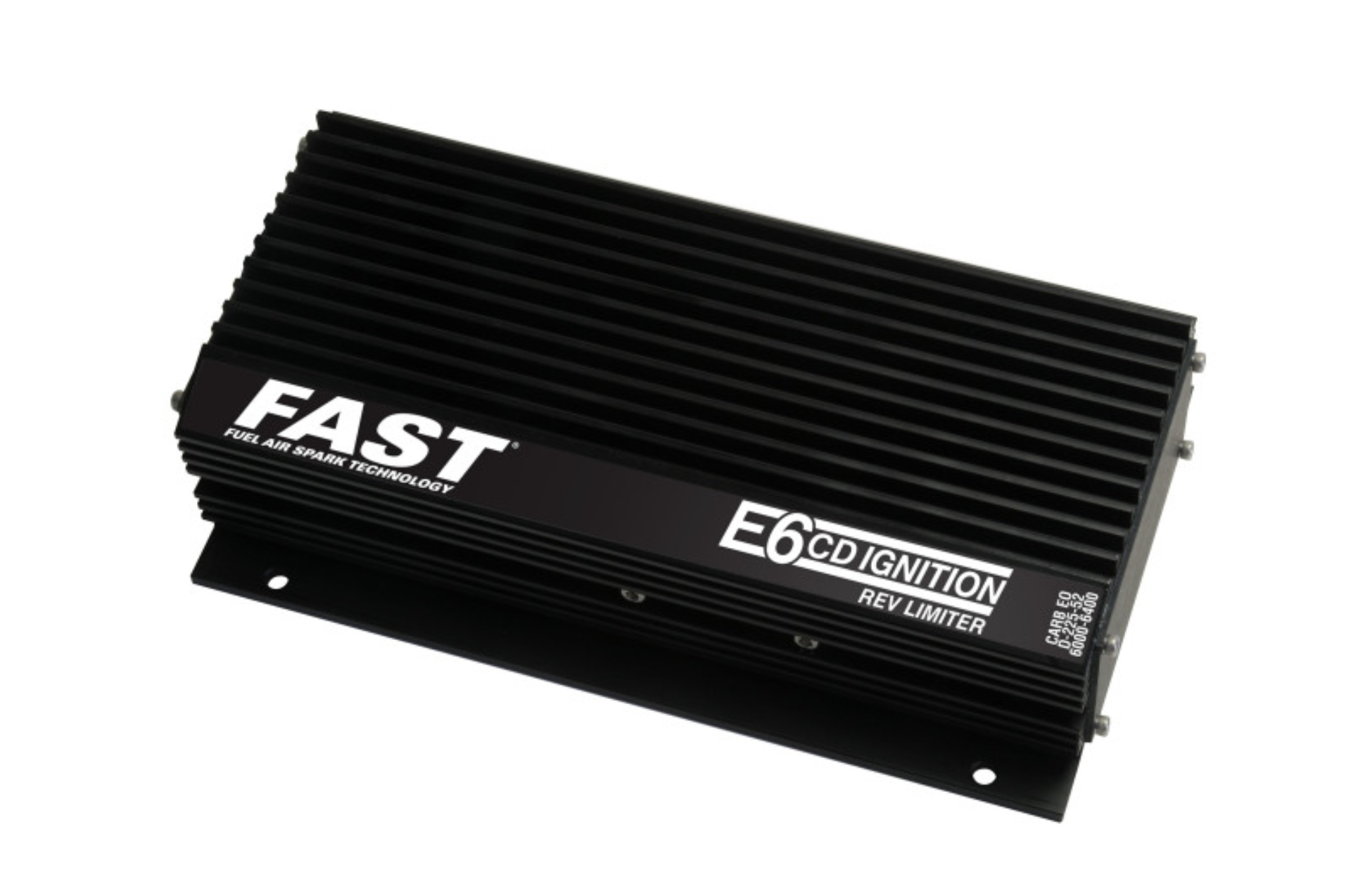

FAST Ignition Controller E6 CD Ignition System - Single Stage Rev Limiter
E6 delivers higher spark-gapcurrent than comparable digital CD ignitions
Ignition, E6 CD, Digital, Single Stage Rev Limiter
More HP, torque, crisper throttle response
Shock mounts included for race conditions.
E6 CD Ignition w/ Single Stage Rev Limiter
Surface-mount, fully digital components
"Plug-n-Go" universal harness included
the mostreliable CD ignition available
For4, 6, 8 cylinder with distributor
adjusts in 100 RPM increments
Points, module, mag triggered
Electronic Ignition System
CARB E.O., D-225-52
no "chips" needed
E6 w/ Rev Limit
E6 Rev Limit
