Firestone's most popular and comprehensive air helper spring line, Ride-Rite kits can be installed on most light trucks, motor-homes, RVs, SUVs and vans. Each application is specifically designed to maximize the vehicle's safe load-carrying capacity, stability, ride quality and brake effectiveness. Firestone Ride-Rite air helper springs provide load support through the use of air pressure that can be adjusted for changing loads. They enhance the ride by reducing inter-leaf friction. The system features individual inflation valves that allow for separate side-to-side or front-to-rear adjustment, which helps keep the vehicle level when carrying off-center loads and maintains ride quality under differing load conditions. Most Ride-Rite kits are no-drill systems, designed to use the vehicle's factory holes and mount between its frame and suspension. All the components are included in the kit for an easy installation that typically takes 1 to 2 hours. Kits come with a two-year limited warranty.
Ride-Rite kits can be installed on most light trucks, motor-homes, RVs, SUVs, CUV's and vans. Each application is specifically designed to maximize the vehicle's safe load-carrying capacity, stability, ride quality and brake effectiveness. Firestone Ride-Rite air helper springs provide load support through the use of air pressure that can be adjusted for changing loads. They enhance the ride by reducing inter-leaf friction. The system features individual inflation valves that allow for separate side-to-side or front-to-rear adjustment, which helps keep the vehicle level when carrying off-center loads and maintains ride quality under differing load conditions. Most Ride-Rite kits are no-drill systems, designed to use the vehicle's factory holes and mount between its frame and suspension. All the components are included in the kit for an easy installation that typically takes 1 to 2 hours. Kits come with a two-year limited warranty.
No Drill Installation - This kit uses existing holes in the frame to mount the upper and lower brackets. Modification of the frame or factory suspension is required. Installing this kit does not void the factory warranty

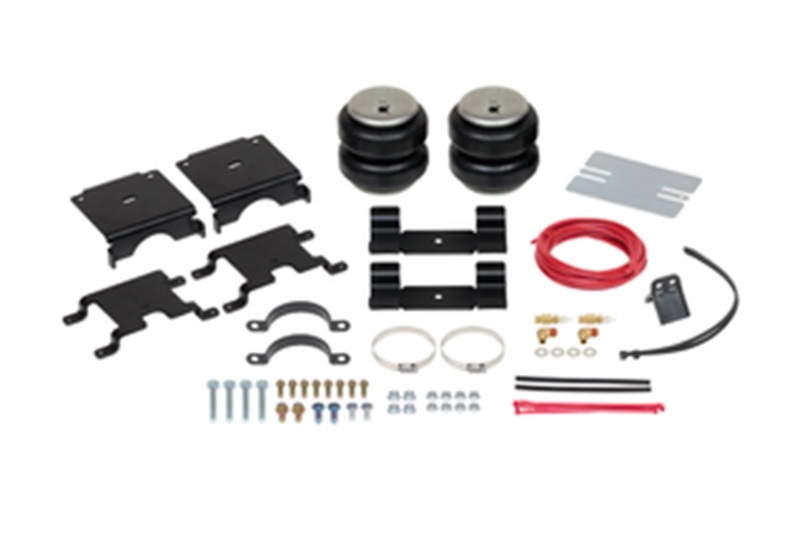

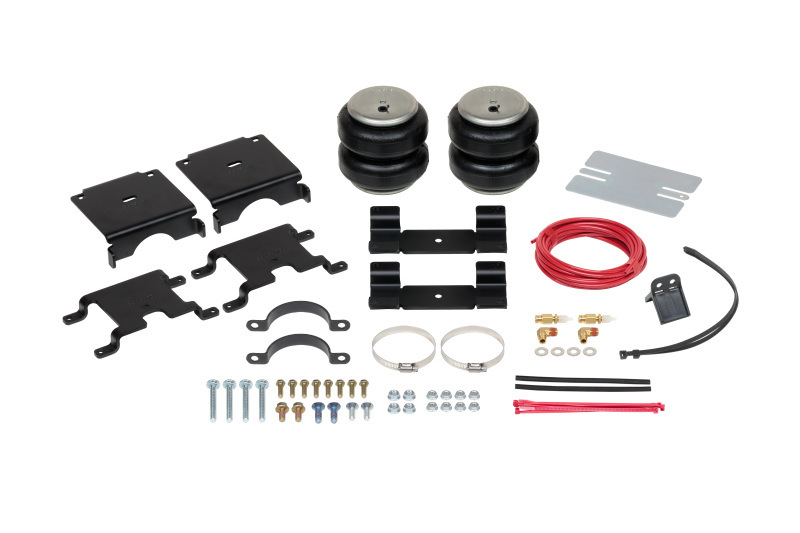

Kit includes both left and right assemblies. Kit comes with commercial grade air springs, upper and lower brackets that are industrial coated to prevent rust, DOT rated tubing, Automotive standard hardware and fittings.
2015-2025 Ford Transit 250 Single Rear Wheel, 2015-2025 Ford Transit 350 Single Rear Wheel, 2015-2025 Ford Transit-350 HD Single Rear Wheel
Eliminates bottoming out, improves ride quality in loaded conditions by returning your vehichle back to factory ride height
Firestone Ride-Rite Air Helper Spring Kit 13-20 Ford Transit 250/350 Single Rear Wheel (W217602621)
Lift spacers sold separately - lifted applications may require a lift spacer.
Air Helper Springs, Air Springs, Helper Bags, Air Leveling Kit
5 psi minimum air pressure recommend for unloaded conditions
No Drill Installation For Chasis Cab Or Cutaway Vehicles
Rated up to 5,000 lbs. of carry capacity
Manual Fill - Compressor Not Included
100 psi maximum for loaded conditions
Drill Installation For Transit Van
Typical Installation Is 60 Minutes
Ride-Rite® Air Helper Spring Kit;
Ride-Rite® Air Helper Spring Kit
Do not exceed the vehicles GVWR.
Air Suspension Helper Spring
Ride-Rite Air Helper Springs
Installs in 1-2 hours
Assembled in the USA
SuspLoadLvlingKt
Ride-Rite Kit
