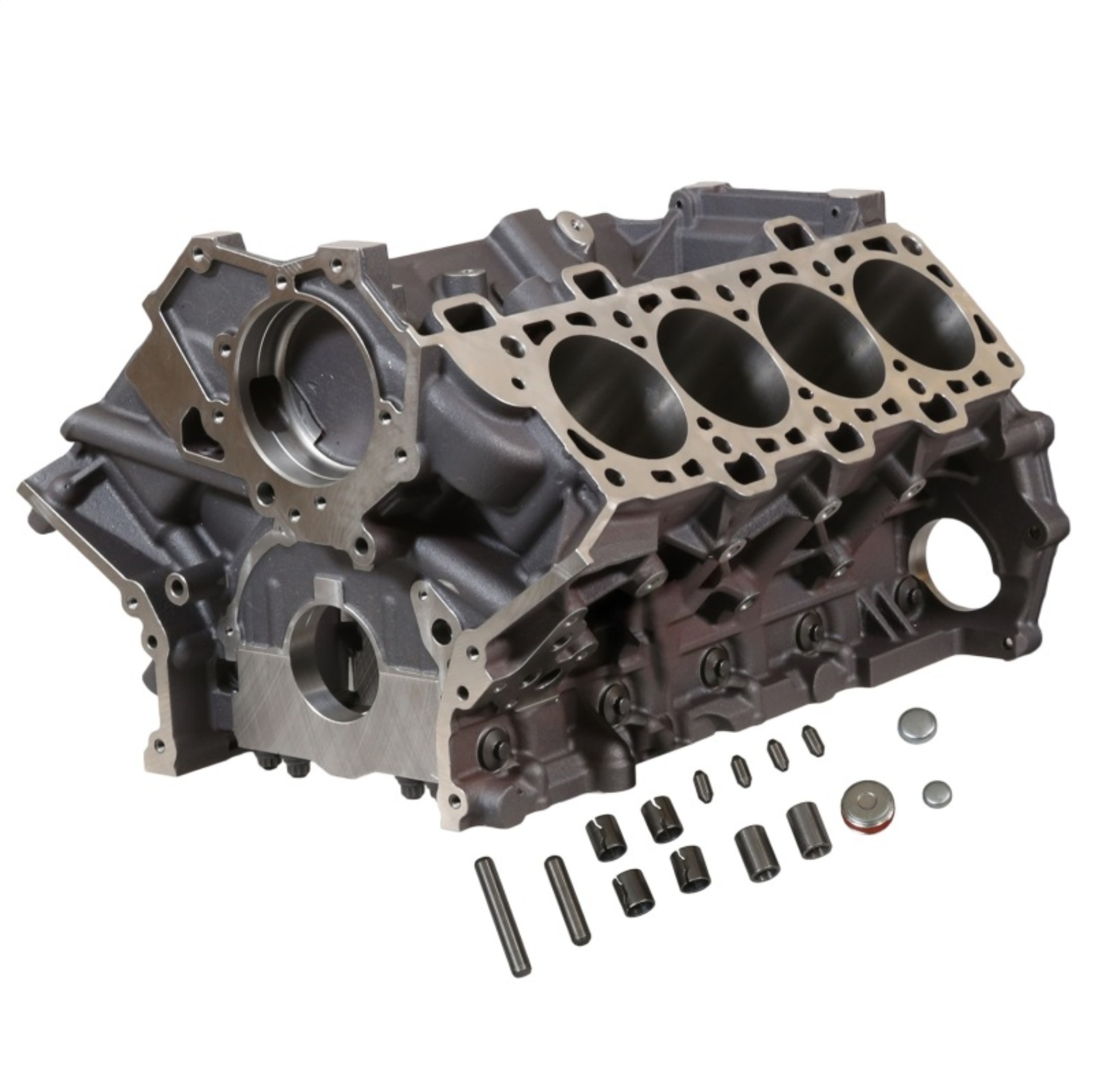

Ford Racing Coyote Cast Iron Race Block

Ford Performance cast iron version of the 2011-2017 Coyote engine block. Cast from a proprietary grade class 50 iron. Designed for extra strength for max-effort/boosted Coyote engine builds.

Revised Deck Design For Added Strength Around The Water Jackets

Accepts Gen 1; Gen 2 And Gen 3 Gt350 5.2L Cylinder Heads

Accepts Gen 1 And Gen 2 Coyote 5.0L Cylinder Heads

Billet Steel 6 Bolt Main Caps w/Arp Hardware

Coyote Production Engine Block; Iron; Race;

Gen 2 And Gen 3 Gt350 5.2L Cylinder Heads

Ford Racing Coyote Cast Iron Race Block

Standard Coyote 100 mm Bore Spacing

Lengthened Bores For Added Strength

Finished Bore 92.2 mm [3.630 in.]

Finished Bore 92.2 mm (3.630 in.)

Maximum Stroke 99 mm (3.897 in.)

Maximum Bore 95.0 mm [3.740 in.]

Maximum Bore 95.0 mm (3.740 in.)

Maximum Stroke 99 mm [3.897 in.]

Coyote Production Engine Block

Deck Height 227 mm [8.937 in.]

Deck Height 227 mm (8.937 in.)

Coyote Cast Iron Race Block

Engine Block - M-6010-M50X

Maximum Displacement 5.6L

Utilizes 12 mm Head Bolts

Accepts Gen 1

Engine Block
