This long block assembly is a replacement for your 2024 Mustang Dark Horse™ 5.0L and an upgrade for your 2024 Mustang GT 5.0L. The 2024 Mustang 5.0L DOHC 32-valve V-8 uses advanced features such as direct and port fuel injection, twin independent variable camshaft timing (Ti-VCT), high-flow cylinder heads, dual throttle bodies and high compression to deliver 500 horsepower in the Dark Horse™.
The lightweight plasma transferred wire arc spray aluminum cylinder block features cross-bolted main bearing caps, thick main bearing bulkheads for bottom-end strength, and optimized oil drainback and windage control to improve high-rpm performance.
Aluminum block that features plasma transferred wire arc spray weld liner coating
NOTE: Driver side exhaust flange utilizes 5.2L bolt pattern

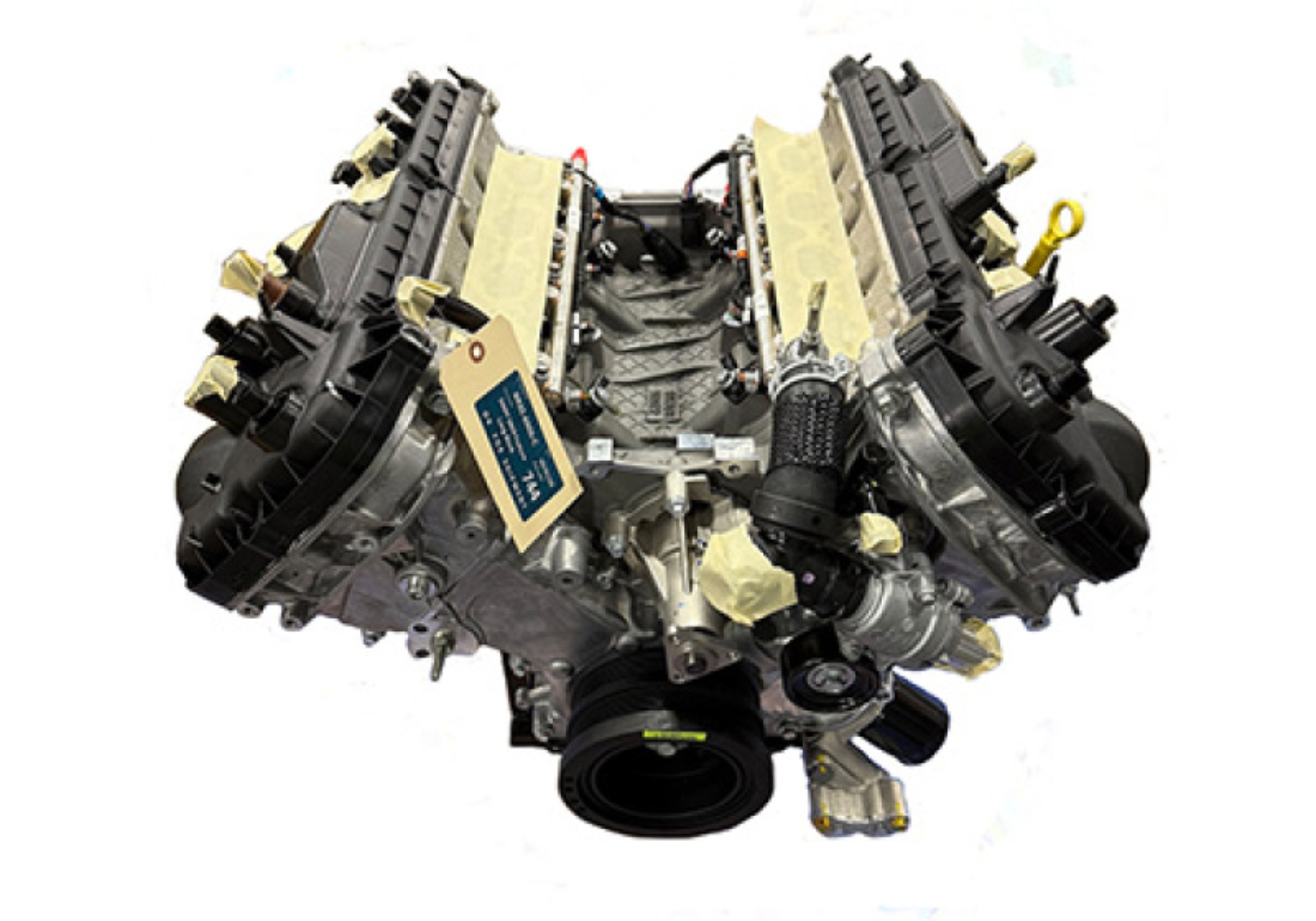

Ford Racing 2024 Gen 4 5.0L Coyote Dark Horse Long Block
Longer, 12 mm head bolts for higher clamp load
The long block assembly does NOT include:
Gen 4 5.0L Coyote Dark Horse Long Block
Intake manifold/throttle bodies
Hypereutectic aluminum pistons
Sintered steel connection rods
9.5 qt capacity steel oil pan
Bore 93 mm x Stroke 92.7 mm
Fuel rails/fuel injectors
Long Block - M-6006-M50DH
12.0:1 Compression ratio
Engine Complete Assembly
Forged steel crankshaft
Flywheel/flex plate
Water pump pulley
Exhaust manifolds
Engine wiring/PCM
Long Block
Alternator
