Edelbrock Supercharged LS 416 crate engine part #46760 produces 720 horsepower and 695 ft-lbs. of torque, on 91 octane pump gas. The foundation is a brand new, aluminum LS3 block with a forged and balanced Manley crankshaft, forged Manley H-Beam connecting rods and Manley forged aluminum pistons.Sitting on top is an Edelbrock E-Force supercharger system with Eaton TVS 2300cc/rev rotors. Also included are supercharger kit components, such as the electric intercooler water pump, intercooler plumbing and intercooler recovery tank, as well as fuel rails, 60 lb./hr. fuel injectors, mass air flow sensor (MAFS) housing and re-usable air filter. The supercharger on this engine has a driver's side throttle body orientation for ease of intake routing and a Corvette belt offset. Pair with universal heat exchangers for a complete installation.Engine Specifications: - Displacement: 416 c.i.d.- Bore: 4.065"- Stroke: 4.000"- Bore: 4.065"- Stroke: 4.0"- Horsepower: 720 hp- Torque: 695 ft-lbs.- Compression: 9.5:1- Block: LS3 Aluminum- Crankshaft: Forged 4340- Pistons: Forged Aluminum - 18cc- Rods: Forged H-Beam- Camshafts: 215 Deg /247 Deg , .629/.656, 121 LSA- Rocker Arms: LS3, 1.7 ratio- Induction: E-Force Supercharger System #1540- Cylinder Heads: GM with Edelbrock Valve Springs #5768- Finish: Black powder coated- Warranty: 2-year / Unlimited mileage

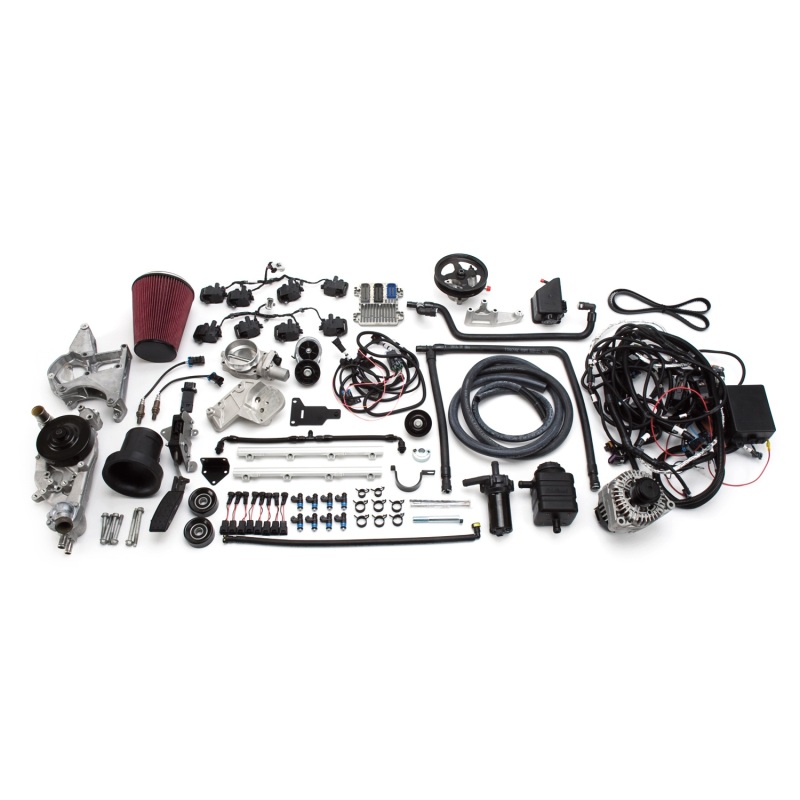

Edelbrock Supercharged LS 416 crate engine part #46760 produces 720 horsepower and 695 ft-lbs. of torque, on 91 octane pump gas. The foundation is a brand new, aluminum LS3 block with a forged and balanced Manley crankshaft, forged Manley H-Beam connecting rods and Manley forged aluminum pistons. Sitting on top is an Edelbrock supercharger system with Eaton TVS 2300cc/rev rotors. Also included are supercharger kit components, such as the electric intercooler water pump, intercooler plumbing and intercooler recovery tank, as well as fuel rails, 60 lb./hr. fuel injectors, mass air flow sensor (MAFS) housing and re-usable air filter. The supercharger on this engine has a driver's side throttle body orientation for ease of intake routing and a Corvette belt offset. Pair with universal heat exchangers for a complete installation. Engine Specifications: Displacement: 416 c.i.d.
Edelbrock; Edelbrock Valve Cover; Valve Cover; PCV; Breather; PCV Baffle; Baffle; Breather hole; PCV hole; 1-1/4in. diameter hole; Aluminum roller rocker; Aluminum; Stamp steel; sand cast; 4683; Signature Series Valve Covers; Chevrolet; 396-502; V8; 65 lat
Edelbrock part #46760 Supercharged LS 416 crate engine is a complete 416 c.i.d. supercharged, LS engine, that produces an astounding 720 horsepower and 695 ft-lbs. of torque, on 91 octane pump gas
Edelbrock Crate Engine Eforce Supercharged Ls 416 CI w/ Complete EFI And Access
Crate Engine #46760 GM LS3 Gen V 416, Supercharged, 720 HP, 695 ft-lbs
Cylinder Heads: GM with Edelbrock Valve Springs #5768
Supercharged LS 416 Crate Engine and Electronics
Camshafts: 215 Deg /247 Deg , .629/.656, 121 LSA
CRATE ENGINE LS3 SC W/COMPLETE EFI/ACCESSORIES
Chevrolet:Small-Block Gen IV LS3:416 (6.8L)
Induction: Supercharger System #1540
Warranty: 2-year / Unlimited mileage
Supercharged GM LS 416 crate engine
Supercharged LS 416 Crate Engine
Pistons: Forged Aluminum - 18cc
Rocker Arms: LS3, 1.7 ratio
Finish: Black powder coated
Engine Complete Assembly
Black Powder-Coat Finish
Crankshaft: Forged 4340
Torque: 695 ft-lbs.
Block: LS3 Aluminum
Rods: Forged H-Beam
Horsepower: 720 hp
Compression: 9.5:1
Stroke: 4.000in
Bore: 4.065in
Stroke: 4.0in
CRATE ENGINE
{ eo : 8in.}
