The torque arm relocation kit from UMI is designed to remove the front mounting point of the torque arm off the transmission and protect the tail shaft from damage. General Motors tail shaft mounted design works great for a stock driven vehicle however it is not designed to take abuse and hard launches. This setup replaces your transmission cross member with a new stronger cross member with a built in torque arm mount. The relocation kit is designed to fit the heavy duty GM 4L80E transmission and will work with virtually any stock style aftermarket torque arm as well as the factory torque arm (Must use bushing #3004 to use a stock torque arm). This unit is built using USA steel tubing, 3/16” mild steel mounting plates and includes all necessary hardware needed for the installation. The torque arm mount is laser cut from 1/4” thick mild steel and features a new clam shell for appropriately attaching the torque arm to the new cross member. Please use the FAQ’s below for additional information. Note: When running a factory torque arm you must purchase #3004 bushing below.
A: This kit is 100% bolt in and requires no drilling, no cutting and no welding. It bolts in place of the stock cross member using the existing holes. Note: This product must be used with a solid one-piece polyurethane bushing. It will not work with the factory bushing that utilizes a two-piece design. If using a stock torque arm with this relocation kit an aftermarket polyurethane bushing must be purchased. This item can be purchased below, Item # 3004.*
A: This set-up will work with virtually any torque arm on the market as long as it bolts into the stock location. It will also work excellent with the stock torque arm.
A: Our transmission cross member is supplied with a built in torque arm mount removing the torque arm from the transmission tail shaft and protecting it from failure.
A: No, our cross member is designed to tuck tight against the vehicle chassis and will not affect vehicle ground clearance.
A: No, this cross member in most cases will save weight over the stock unit while being structurally stronger.

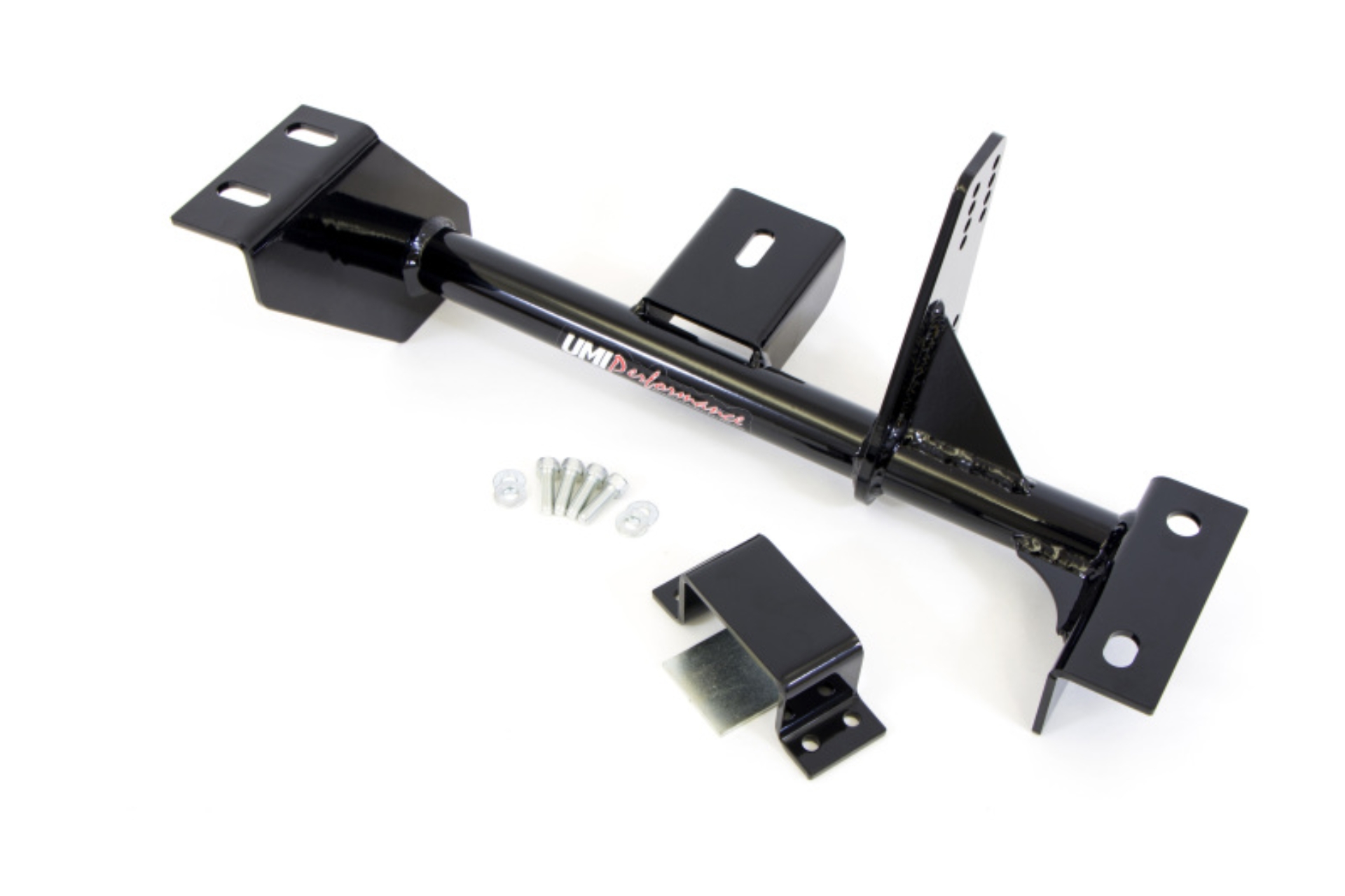

UMI Performance 98-02 GM F-Body Torque Arm Relocation Kit - 4L80E
2237-1998-2002 GM F-Body Torque Arm Relocation Kit – 4L80E
Q: Does this new relocation kit reduce ground clearance?
Q: Does this add additional weight to my vehicle?
Q: Does this kit require any drilling or welding?
Q: Which brand torque arms will this work with?
Q: What does this kit do?
UMI- Relocation Bracket
Relocation Bracket
