Improve the street and track performance of your GM truck and achieve that precise Pro-Touring feel by combining our popular P/N 3033 upper a-arms with ½” taller premium ball joints. P/N 3033-2 a-arms combine the benefit of additional caster with increased negative camber potential throughout the suspension travel. The relocated ball joint plate offers up to six degrees caster without excessive shimming while the ½” taller ball joint creates up to one additional degree negative camber at full bump travel. Expect improved steering feel courtesy of increased caster and an overall increase in lateral grip due to the camber improvement. Features include greaseable, low deflection UMI designed and manufactured Delrin bushings, CrMo cross shafts, improved header clearance and polyurethane bump stops. These track-tested, jig built DOM a-arms are supplied with a durable gloss red or black powder coat finish which guarantees your performance parts stay beautiful on your street truck, drag truck, autocrosser or Pro-touring machine. Designed and manufactured with pride in Philipsburg, PA - USA.
UMI 3033-2 a-arms boost handling with added caster and camber for better grip and steering feel. Features include tall ball joints, Delrin bushings, CrMo shafts, and durable powder coat—perfect for street, autocross, or Pro-Touring builds.
Hardware kit, Part # 3012 - Upper A-Arm hardware kit includes 12mm Grade 10.9 bolts, washers and nylock nuts. Kit includes everything needed to mount your new UMI Performance a-srms to your vehicle.
Package includes recommended alignment specs & detailed installation instructions
Direct bolt-in compatible with factory or UMI lower a-arm & factory spindle
May also work in conjunction with other brand lower A-arms and/or spindles
UMI built, greaseable & fluted CNC machined no deflection Delrin bushings
UMI 3033-2 arms add camber & caster for sharper feel and more grip.
Relocated ball joint pad for increased caster without excess shims
New premium ½” taller ball joints for improved camber curve

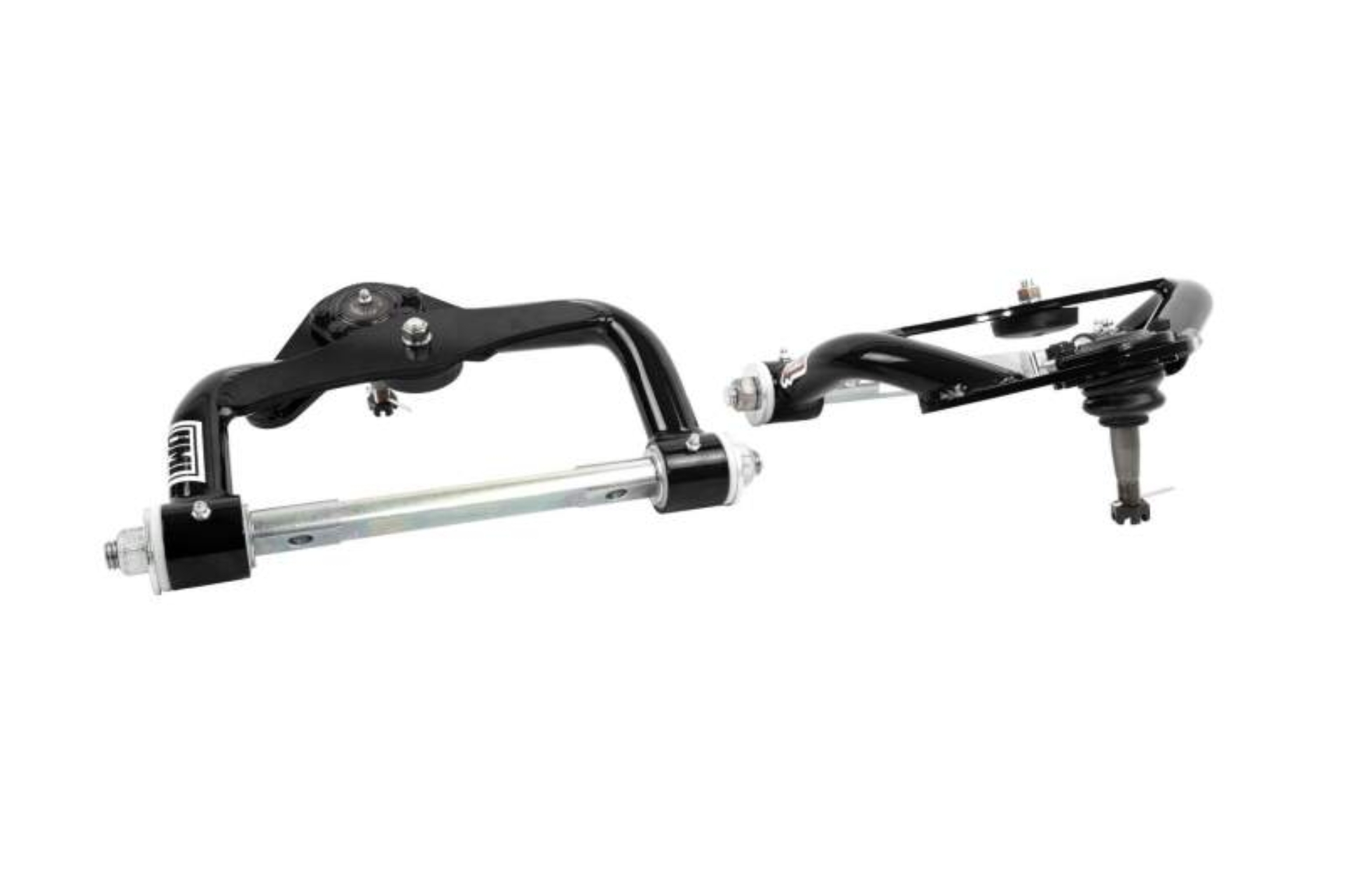

UMI Performance 78-88 G-Body S10 Tubular Front Upper A-Arms
4140 CrMo cross shafts, CNC machined & zinc plated
Precision bent tubing on programmable tube bender
CNC machined ball joint mount & tubing radiuses
TIG welded for superior strength & clean looks
Robust tubular design with machined gussets
Polyurethane bump stops included
UMI- G-body/S10 Tall Upper A-Arm
Upper A-Arm
