UMI’s heavy duty boxed arm kit with adjustable rod ends provides a rock-solid foundation for your autocross, road race or corner carving 4th Gen. The lower a-arms fully gusseted box tubing construction, while appearing heavy-duty, affords a five pound weight savings per set over factory lower a-arms. These arms have double shear sway bar mount tabs with endlink set included as well as a double shear shock mount to fit most 1/2" bolt race shocks. Lower arms are compatible with UMI/Strano, Viking, Penske, JRi, and most other race shocks. Upper arms feature caster and camber adjustment with premium rod ends. Laser cut ball joint pads feature improved ball joint angle and increased caster (up to additional 2 degrees - depending on chassis tolerances) for lowered cars and come assembled with premium ball joints. UMI’s newest design features the most travel and clearance of any a-arm on the market and is a must for lowered vehicles. This A-arm kit designed to work with the factory K-member, UMI k-members, and virtually all stock mounting point aftermarket K-members. Crafted with pride in Philipsburg, PA- USA.
Hardware kit P/N 2303 - A-arm hardware kit includes Grade 10.9 bolts, washers and Ny-lock nuts. Kit includes everything needed to mount your new UMI a-arms to the vehicle.

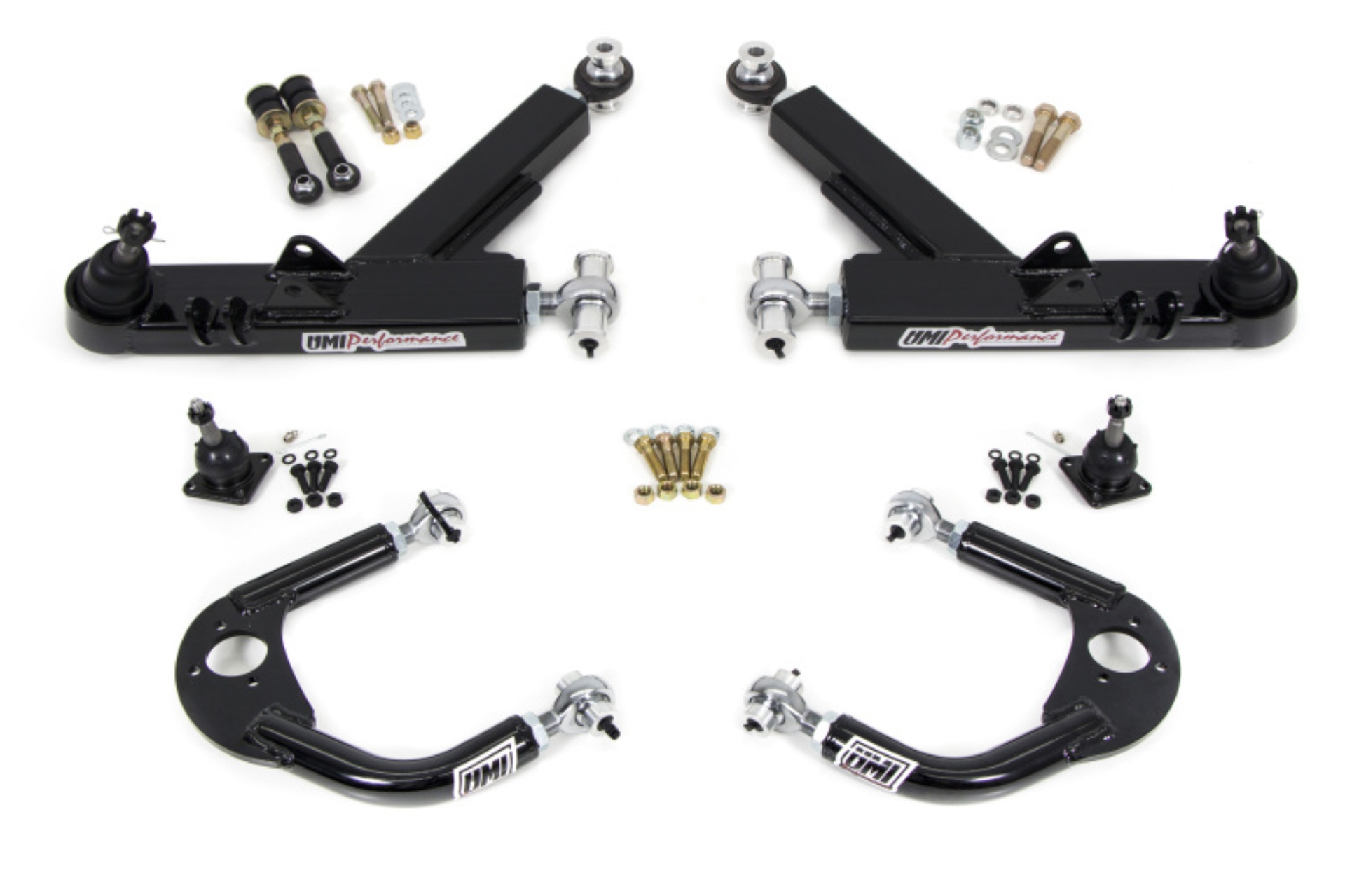

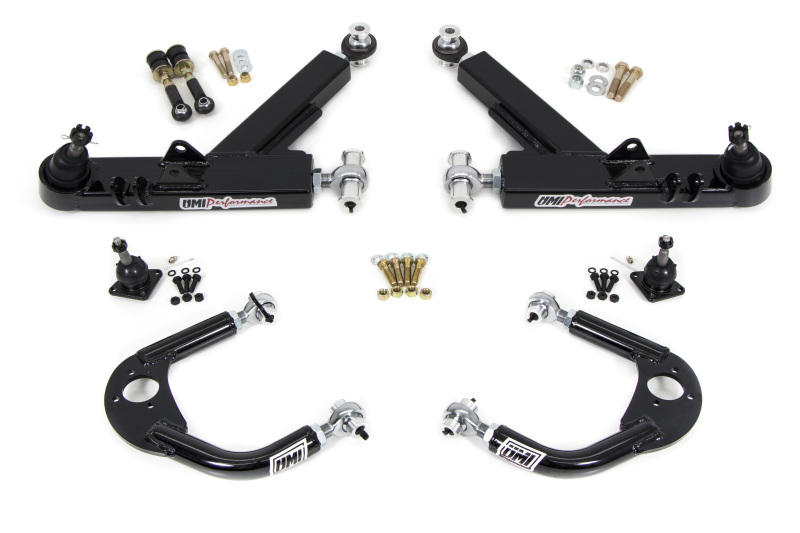

UMI Performance 93-02 GM F-Body A-Arm Kit Double Shear Mount Boxed Lower + Adj Upper
231410 - 1993-2002 GM F-Body A-Arm Kit, Dbl Shear Mount Boxed Lower, Adj Upper
Teflon lined, high load capacity race rod ends= less suspension friction.
Adjustment allows additional caster and camber to be achieved.
Uses balance of OEM hardware or use new UMI hardware kit.
Race quality high misalignment rod end on vertical mount
Double shear sway bar mount with endlink set included
½” dia x 1-¼” width racing coilover mount
Double gusset design for flex-free operation
Up to 2 degrees additional caster built-in
0.120” wall mild steel box tubing lower
Durable red or black powder coat.
Made in Philipsburg, PA – USA
Premium ball joints installed
5 lb weight savings per kit
UMI- A-Arm Set
A-Arm Set
Features:
