More about Roto-Joint Technology….. UMI's Roto-Joint, short for Rotational Joint, allows 28 degrees of total rotation and unrestricted movement throughout the vehicles suspension. The Roto-Joint is designed to work like a spherical rod end while maintaining streetable qualities of a softer bushing. The Roto-Joint is designed to articulate and prevent suspension bind, and since the installed delrin race does not deflect like softer bushings, there is an improvement in traction and a significant reduction in wheel hop. The construction of the Roto-Joint features a 4140 chromoly, hard chrome plated spherical ball which rotates in a delrin race. The 4140 chromoly material and hard chrome plating are designed for extensive wear resistance against hard driving and accumulated miles. The spherical ball rotates in the CNC machined delrin bushing, which is contoured for the spherical ball to allow unrestricted movement as the ball rotates. Delrin is the bushing material of choice due to its high resistance against wear, great tensile strength, and ability to maintain its physical properties. The housing of the Roto-Joint features 4140 chromoly threads, and a CNC machined bushing holder TIG welded together for the utmost in strength and durability. The UMI Roto-Joint is adjustable and 100% rebuildable. This means as the delrin race wears the adjuster ring can be tightened using the optional spanner wrench to apply tension to the ball. If the delrin race would ever wear completely it can be replaced easily.
This kit is for the serious enthusiast, it includes UMI's Roto-Joints on all ends for maximum performance, extreme handling and no bushing deflection. This complete kit features on car adjustment on both the control arms and the panhard bar. Adjustments are made by simply loosing two jam nuts on each item to simply shorten or lengthen it while it stays attached to the vehicle. Adjustable items are used to center the rear end after vehicle lowering, when tire clearance is needed or when installing large aftermarket rear ends. This kit features chromoly tube adapters that are TIG welding into place for the utmost in strength and thread durability. The tube adapters are CNC machined with left and right hand threads making for easy on car adjustments with out having to unbolt and remove the item. The installed Roto-Joint design improves performance over the factory rubber and aftermarket polyurethane bushings by allowing the suspension to articulate correctly. The Roto-Joint is designed to articulate and prevent suspension bind, and since the installed delrin race does not deflect like softer bushings, there is an improvement in traction and a significant reduction in wheel hop. The installed delrin race, which lines the spherical ball, absorbs shock and road noise for a quiet and smooth operation working well on the street and at the track. The included Roto-Joints are greaseable and low maintenance making an excellent street setup for your cruiser or race car!
Spanner Wrench- This spanner wrench is used for adjusting and disassembling Roto-Joints used in all UMI Performance products. Over time if the delrin race inside the Roto-Joint would wear the spanner wrench is used to tighten the adjusting ring applying more pressure to the delrin inside. The spanner wrench is also used to disassemble the Roto-Joint for cleaning, inspection and rebuilding.

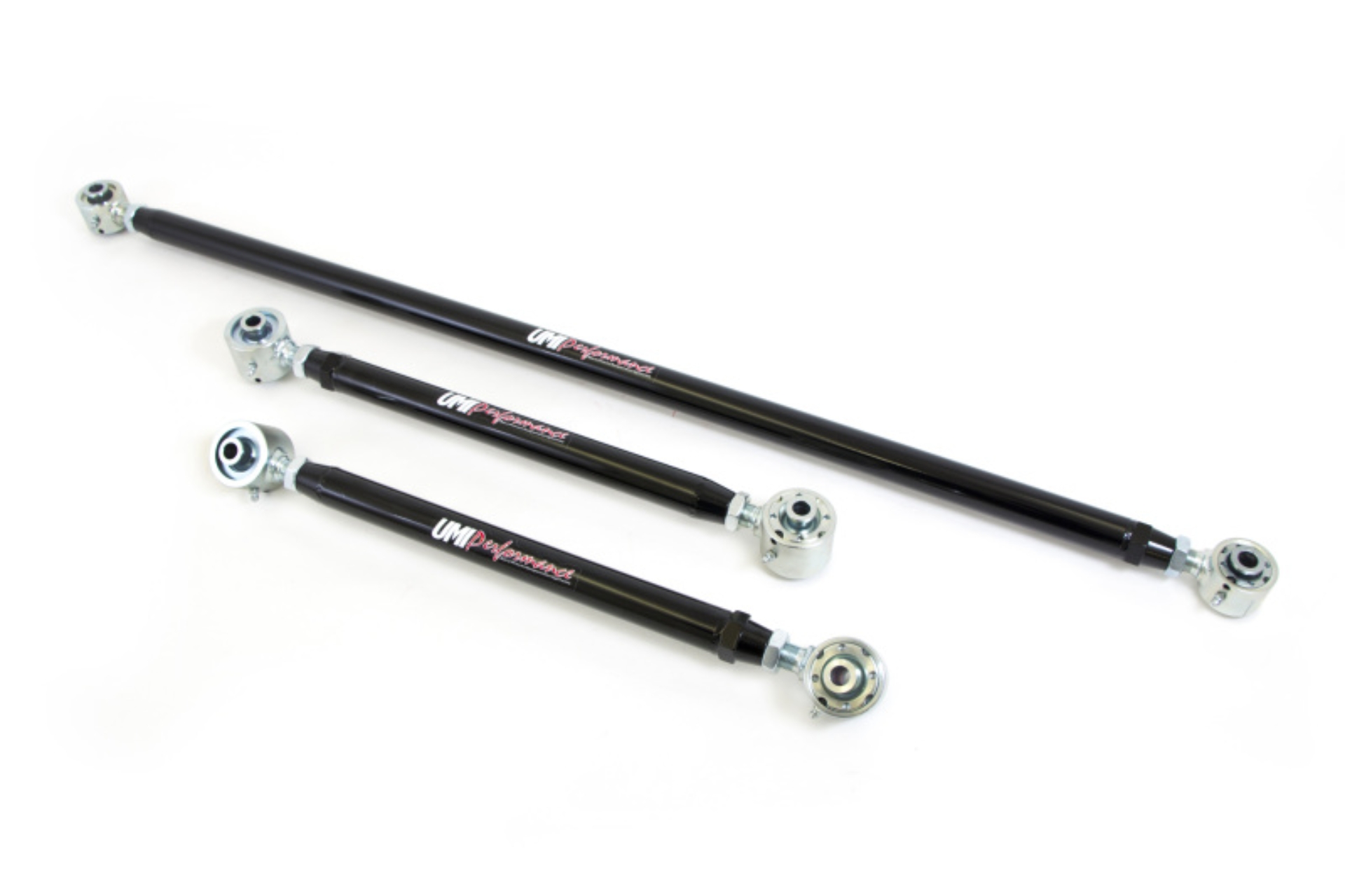

UMI Performance 82-02 F-Body Double Adjustable Lower Control Arm Panhard Bar Kit
Spherical Roto-Joints installed for easy adjustments and bind free performance
203538 - 1982-2002 F-Body Double Adjustable Lower Control Arm Panhard Bar Kit
Delrin race offers low deflection for improved traction
CNC machined 4140 chromoly threaded tube adapters
Shipped fully assembled and ready to install
Brilliant and durable powder coat finish
Constructed of DOM mild steel tubing
Both items feature on car adjustment
Kit is fully TIG welded
UMI- Control Arm Kit
Uses OEM hardware
Control Arm Kit
Features:
