When it comes to H-Beam connecting rods, not all are created equal. Manley H-Beam Series stands out as a superior choice, offering exceptional quality at an economical price point. These connecting rods are meticulously crafted to meet the same high-quality standards as our renowned Sportsmaster® and Pro Series rods.
Attention to Detail: Every aspect, from final hone size to thread detail, bend, and twist, is treated with utmost seriousness to deliver connecting rods of the highest quality.
Exceptional Performance: Manley's H-Beam rods are designed to outperform others on the market, giving you a competitive advantage on the track.
Center To Center Length: 5.365 in. - Big End Bore: 2.008 in. - Pin Bore: 0.8671 in. (22mm Pin) - 3/8" ARP 2000 Bolts - Approx. HP Rating: 600+
Flexible Bolt Options: Tailor your connecting rods to your specific requirements with a choice of ARP 8740 or ARP 2000 bolts.
Exacting Tolerances: Our H-Beam rods are finished to exacting tolerances to ensure precision and performance.
Rod Bolt: 42350-1 Rec. Torque w/ 30wt. oil: 60 ft./lbs. Rec. Bolt Stretch w/ 30wt. oil: .0058”-.0062”

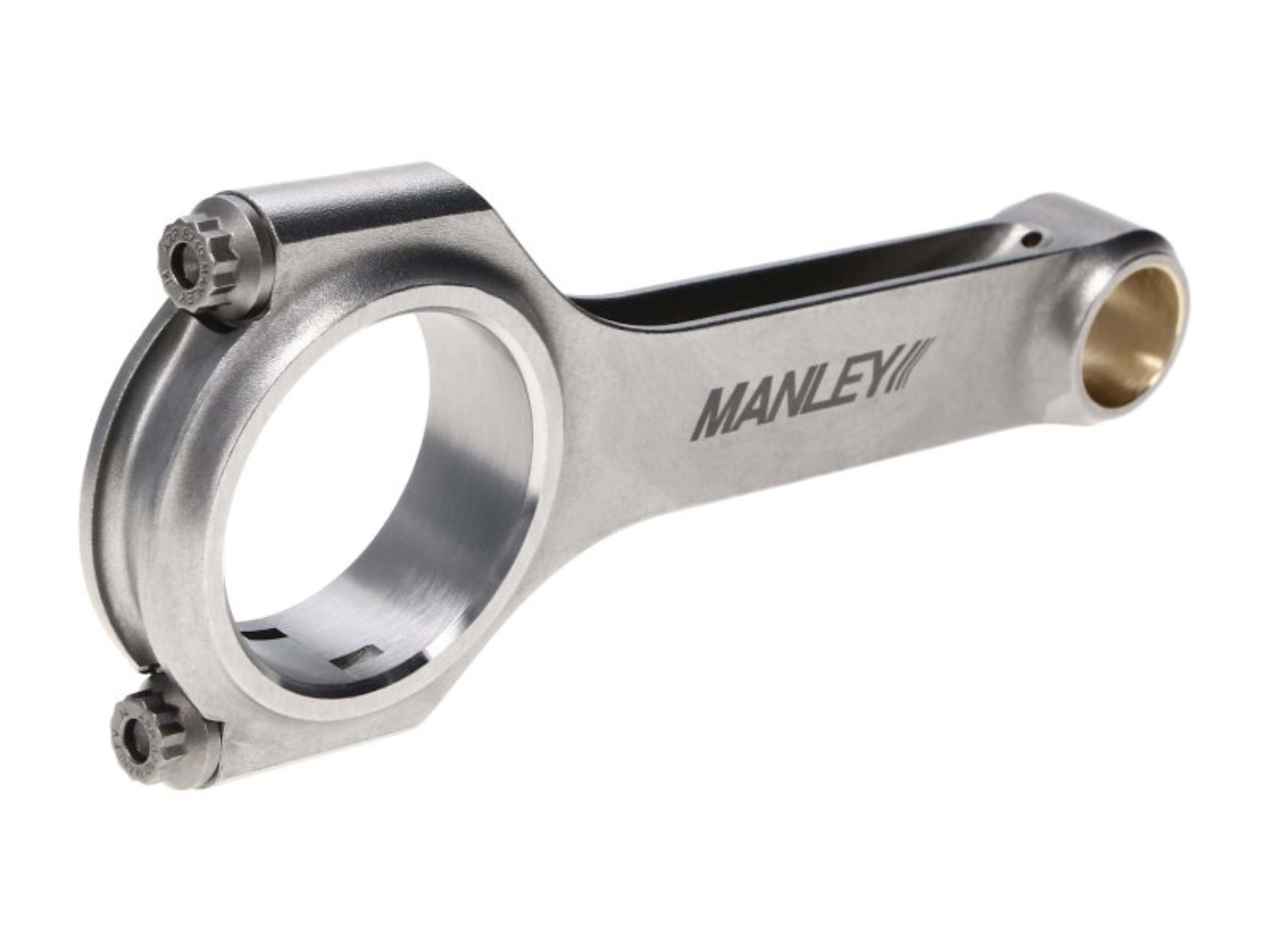

Manley 91-02 Nissan 2.0 (SR20DE SR20DET) H Beam Connecting Rod (Single Rod)
Manley H-Beam Connecting Rod - Nissan 2.0 SR20DE(T)
Engine Connecting Rod
ROD-NISSAN 2.0 SR20
Connecting Rod
