When it comes to H-Beam connecting rods, not all are created equal. Manley H-Beam Series stands out as a superior choice, offering exceptional quality at an economical price point. These connecting rods are meticulously crafted to meet the same high-quality standards as our renowned Sportsmaster® and Pro Series rods.
Recommended bearings to be used: ACL 4B1185/H or Clevite® CB-1643P - Eclipse GST, GSX, & Eagle Talon TSi 2.0 (7 Bolt 4G63, 4G63T 1993.5-1999), Evolution VIII, IX (4G63T 2003-2006) - Also available in H-Tuff/H-Tuff Plus design
Attention to Detail: Every aspect, from final hone size to thread detail, bend, and twist, is treated with utmost seriousness to deliver connecting rods of the highest quality.
Exceptional Performance: Manley's H-Beam rods are designed to outperform others on the market, giving you a competitive advantage on the track.
Center To Center Length: 5.905 in. - Big End Bore: 1.890 in. - Pin Bore: 0.8671 in. (22mm Pin) - 3/8" ARP 2000 Bolts - Approx. HP Rating: 600+
Flexible Bolt Options: Tailor your connecting rods to your specific requirements with a choice of ARP 8740 or ARP 2000 bolts.
Exacting Tolerances: Our H-Beam rods are finished to exacting tolerances to ensure precision and performance.

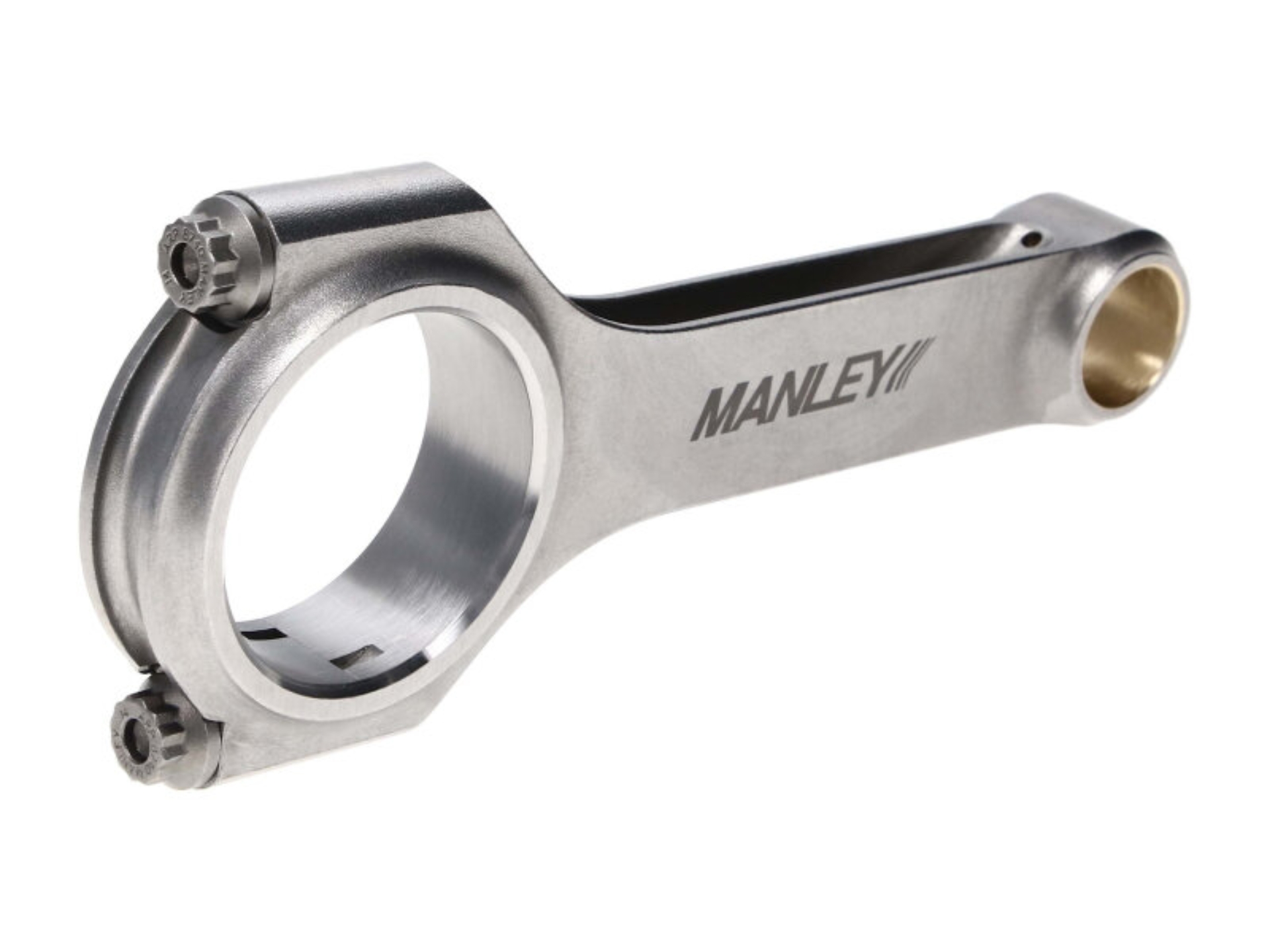

Manley 7 Bolt 4G63 4G63T / 03-06 Evo VIII IX H Beam Single Connecting Rod
Manley Connecting Rod, MITSUBISHI 4G63 ECLIPSE 2.0 H/B
Engine Connecting Rod
ROD-4G63 H-BEAM
Connecting Rod
