Alpha Series Rods are forged from select 4340 chromoly steel and feature a straight H-beam design, resulting in the ultimate strength-to-weight ratio. 4340 chromoly is one of the strongest materials available, however, not all 4340 chromoly is the same. As such, Skunk2 relies on extensive material testing and works closely with its foundry to produce high-quality rods at an affordable price. Comprehensive heat-treating, tempering, and shot-peening processes together ensure that each Alpha Series Rod remains consistent and strong. Finally, each rod is magna-fluxed to ensure integrity and that each process has been completed thoroughly and according to Skunk2's rigid specifications.
Alpha Series Connecting Rod Set; 149.70mm Length; 543 Grams; Rated to 900HP; H-Beam; Incl. 3/8 ARP2000 Bolts/Lube; 4340 Chromoly Steel; Set of 4;
Dual-Pin Oil Passages For Increased Lubrication And Strength
Pin End Compatible w/Most Pistons w/o Machining

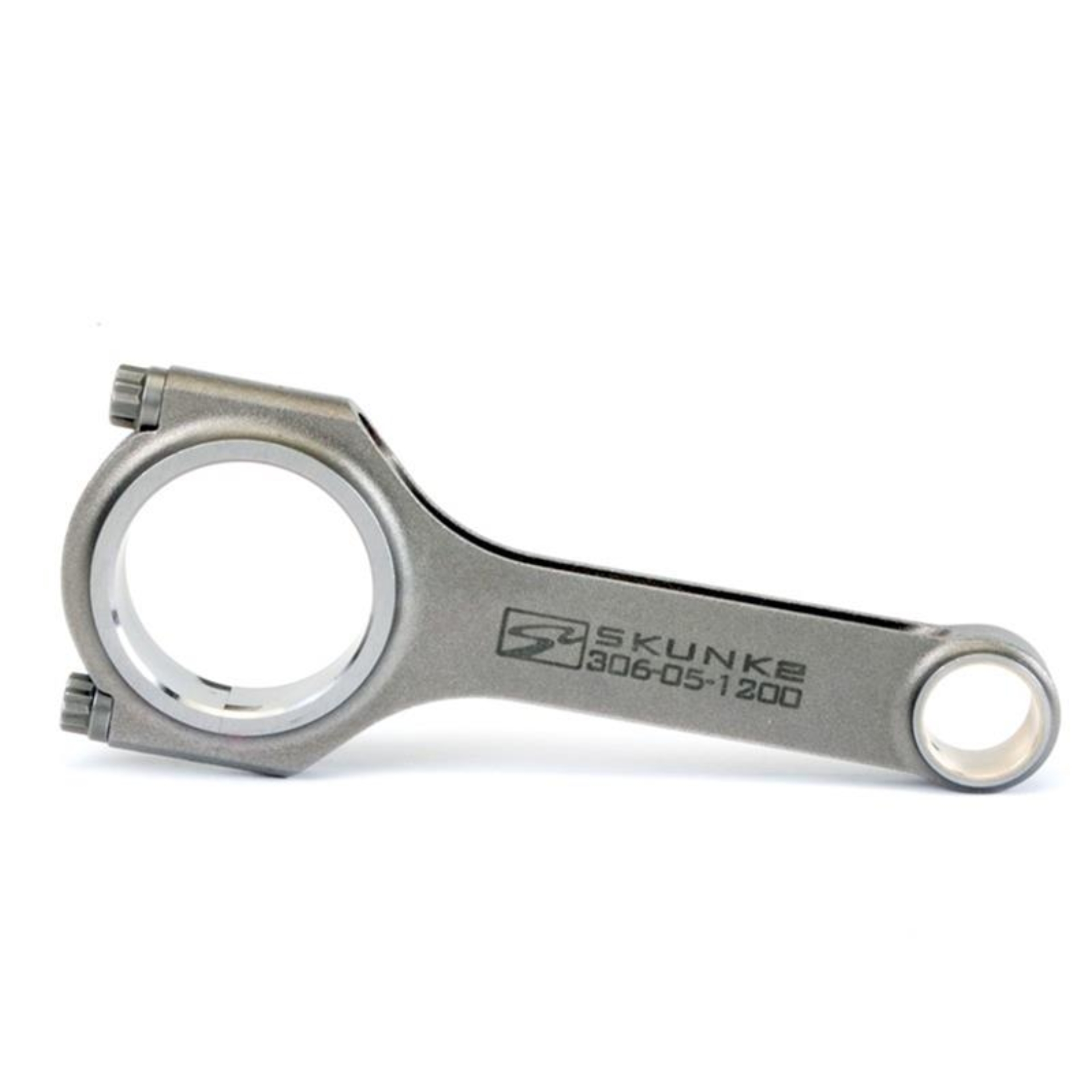

Skunk2 Honda F22C Alpha Series Connecting Rods
Alpha Series Connecting Rod Set
Shot-Peened For Reduced Fatigue
3/8-in. ARP2000/Skunk2 Bolts
Bronze Wrist Pin Bushings
Magna-flux Inspected
Balanced +/- 1 Gram
Connecting Rod Set
Weight 546 grams
Length 149.70mm
900+ HP Capable
Heat Treated
FEA Analyzed
