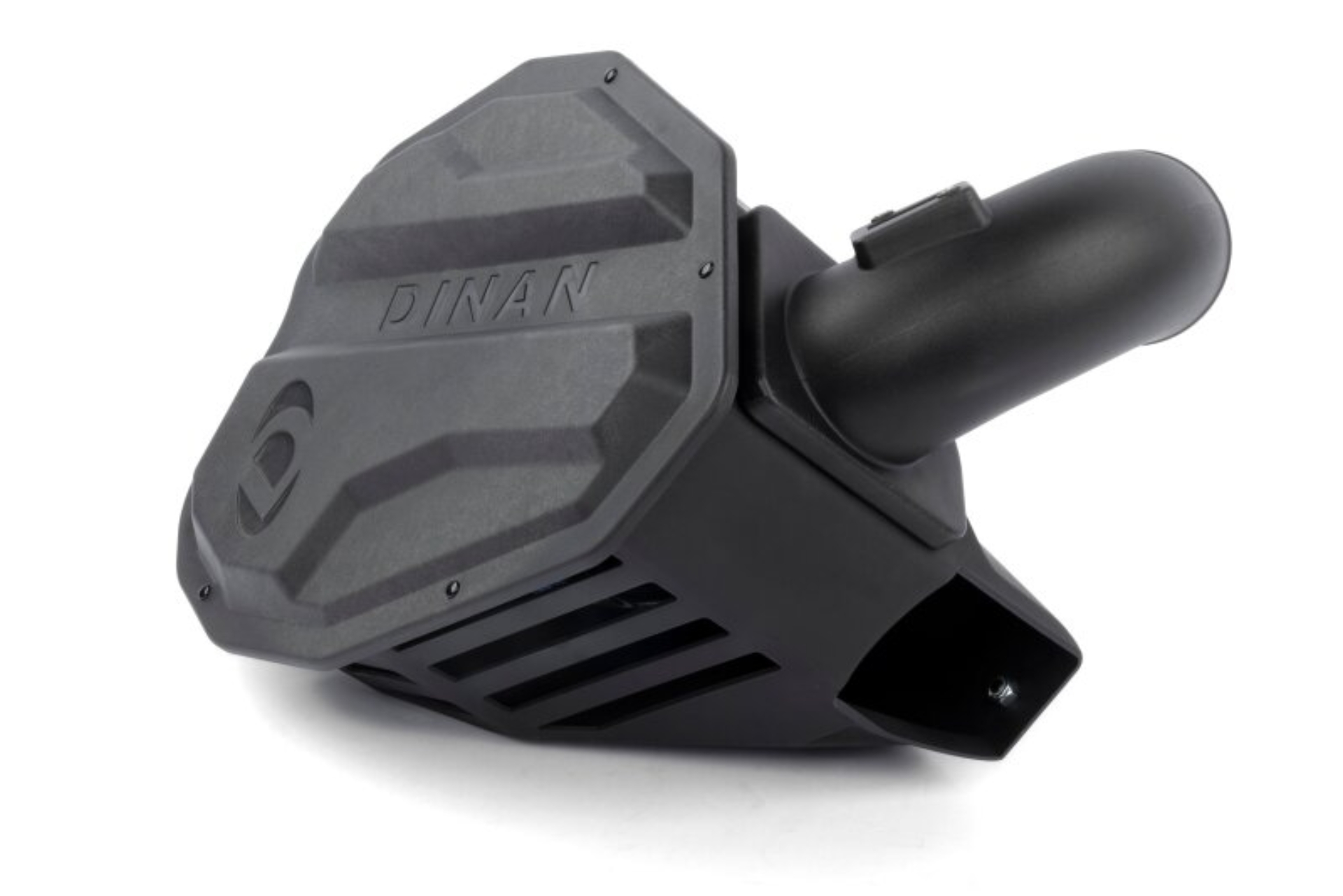

To accomplish the feat in flow that sets the Dinan intake system apart the entire lower box of the system, and not just the lid, has been reworked and enlarged to make use of as much of the available real estate as possible within the engine bay. In turn, this allows a 40% larger, custom, free flowing filter to be housed within and maximum flow to be realized. However, a secondary inlet has always been desired by Dinan in order to effectively fill the volume of the enlarged air box and increased filter surface area. This desire led to a multitude of experiments being conducted on the effectiveness of a possible open-air inlet in the system. With different shapes, locations, and sizes of openings being tested, the goal was to ensure that the added secondary inlet did not cause any unwarranted side effects such as an increase in air temps in the system. This is commonplace with open-air intake systems where overheated engine bay air is employed in the intake tract. The results of these tests showed that the patterned openings present in the final iteration of the box on the opposite side from the engine provided a perfect balance of additional volume to assist the factory snorkel all the while not causing an increase in turbo inlet temperatures. This was the case regardless of testing conditions (single/multiple gear pulls, constant speed, 0-100mph runs, etc.).
In the quest to be all things to all people at an attractive price point the x30i's have been reduced to a mundane, albeit pragmatic, core with elements devoid of any character both outwardly and inwardly. For example, in stock trim, the 230i/330i/430i comes with a utilitarian and lifeless air box swaddled by seemingly unfinished braces (where applicable) and housing a basic panel filter that is also accompanied by an intake resonator whose job it is to eliminate turbo/intake noises. The same noises that those in the performance world relish. Essentially, BMW has seen fit to give x30i owners an air box that looks uninspiring, flows adequately but not ideally, and emits no noise. The Dinan PEX intake for the platform rights these wrongs and delivers a semi-open intake capable of flowing 58% more air than the stock system resulting in improved throttle response and the elimination of a potential roadblock when opting to pursue a high-powered build (upgraded turbo, fueling, etc.). At the same time revealing an enhanced OEM-like appearance that blends seamlessly with surrounding factory plastic under hood components, and an increase in sound courtesy of the removal of the intake resonator and implementation of a semi-open design.
While the additional flow does not translate to any noteworthy rise in power output for stock or basic bolt-on equipped vehicles, the Dinan intake system does expand the potential of the platforms power ceiling. Put simply, those striving to build a more potent and robust solution, complete with turbo and fueling upgrades, will be allowed to maximize the results without worry of the intake system being a limiting factor. Regardless of the level of build, the secondary air inlets allow the intake system to be more audible so the turbo spool and BOV can be appreciated. A stark difference from Dinan's traditional fully sealed systems where induction noise is not nearly as recognizable. While increased flow and sound are the stars, the modest PEX construction fuses effortlessly into the factory engine bay for a reserved visual that despite basic materials still manages to draw attention. It's an economical solution to form and function for a vehicle that permeates both.
Looking for more, for less? The all new G2x/G4x x30i PEX Intake delivers all the performance and sound benefits as its carbon fiber sibling -- just with less showmanship -- resulting in the best dollar-per-horsepower B46/B48 intake system available from Dinan.
40% increase in filter area (stock: 82 in², Dinan: 115 in²) for optimum flow
Compatible with all G2x/G4x x30i's with and without factory bracing
High heat deflection PEX construction and an OEM look
Dinan Cold Air Intake - 2019-2024 BMW 330i/430i
Larger volume air box (60% larger than stock)
Dinan Cold Air Intake - 2023-2026 BMW 230i
Outflows factory intake by 58% or more
Dinan 21-24 BMW 430i Cold Air Intake
Enjoyably louder, sportier sound
COLD AIR INTAKE G2xG4x x30i PEX
Quick and easy installation
Improved throttle response
PEX - G20/G22/G23/G26/G42
Cold Air Intake
DIN AIK
