UMI’s F-Body front coilover kit permits installation of a true 2-1/2” racing coilover spring and shock into your 1993-2002 GM F-Body. Factory style lower t-bar fits factory GM, UMI and most other brands of lower arms intended for stock t-bar. The factory GM rubber shock mount tends to rust out and allow unwanted movement while being costly to replace. The UMI coilover kit replaces that unit with a bolt-in, race proven double shear upper mount which drains nicely and is powder coated for durability. The UMI designed upper brackets capture a Viking double adjustable coilover specific shock and a 300, 350, 450 and 550 lb-in spring. We recommend 550 for auto-x and road racing, 450 for hot street and corner carving, 350 for general use and 300 for drag specific use. Included Viking shocks use upper and lower bearings eliminating polyurethane and rubber for crisp response and great reliability. This kit is generally used for 1-3” lowering from factory location and does not make any permanent changes to the upper spring mount or chassis. All UMI products are manufactured tested and raced out of Philipsburg, PA and always use US materials.
Spanner Wrench & Thrust Bearing Kit: Spanner wrench tool is used to adjust vehicle height while shock stays mounted. This wrench is needed to make height adjustments. The thrust bearing kit is designed to be placed between the spring and the spring seat attached to the shock. This makes for easier adjustments since the spring seat is rotating on a bearing. This kit is recommended for easier adjustments but is not needed to complete the installation. We do not recommend adjusting height on the car without a thrust bearing kit.
Double bearing shock for crisp response, zero deflection and high reliability (withstands drag wheel stands and high loads from auto-x/road race sticky tires).

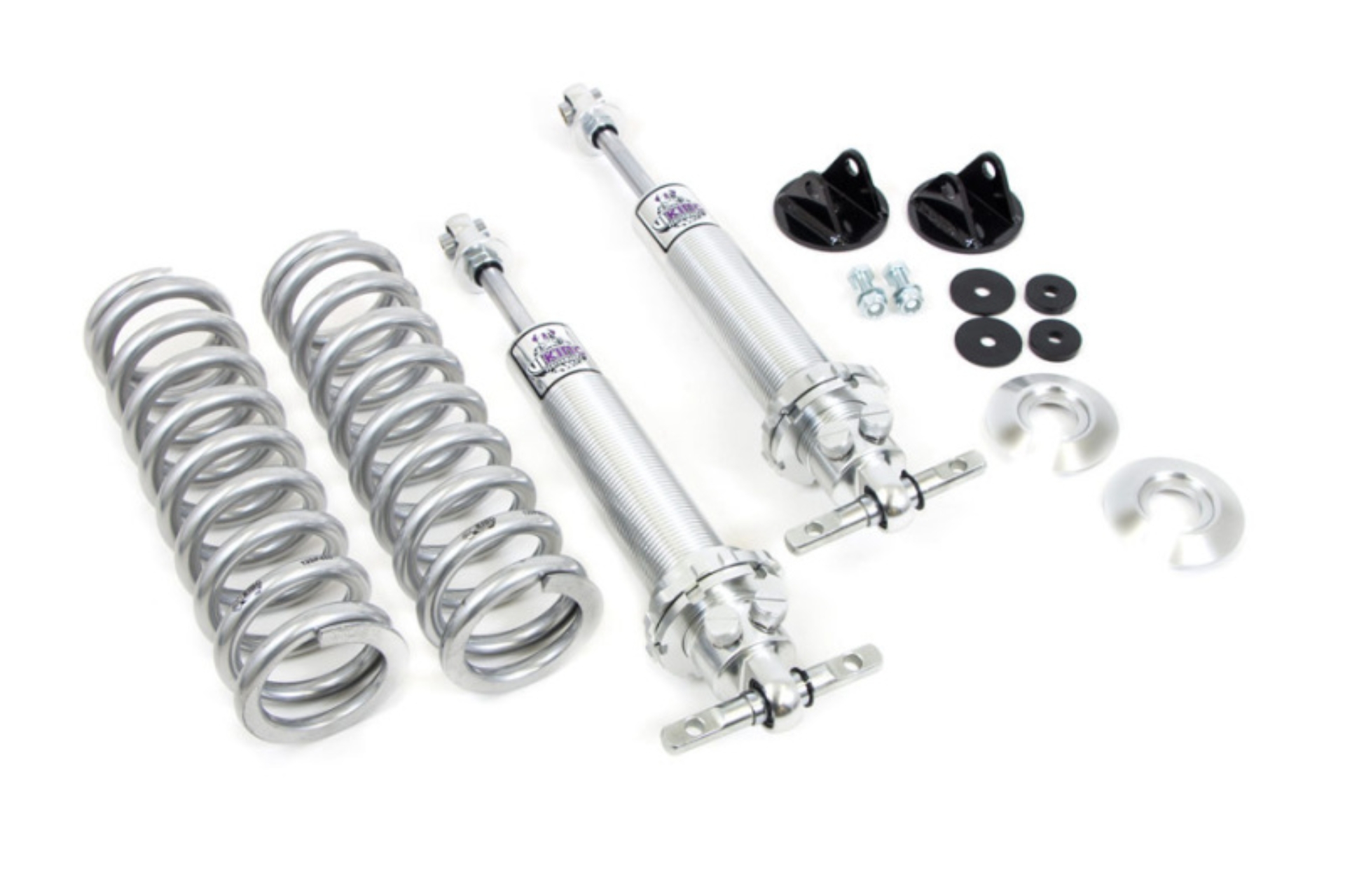

UMI Performance 93-02 Chevrolet Camaro Double Adj. Front Coilover Kit (Spring Rate 350lb)
Viking Warrior double adjusdtable shocks offer 19 compression and 19 rebound adjustments.
Fabricated upper mount saves cost by replacing rust-prone GM rubber upper shock mount.
Four standard spring rates for drag, cruise, corner carving and auto-x/road race.
2048-350 - 1993-2002 GM F-Body UMI Front Coil Over Kit, Dbl Adj, Bearing Mounted
CNC laser cut brackets offer a precision fit and finished in black powder coat.
Designed, tested, manufactured and raced in Philipsburg, PA- USA
100% bolt in design using high grade hardware.
UMI- Coil Over Kit
Coil Over Kit
Key Features:
