UMI’s Corner Max front end kits are a comprehensive system with our best corner carving parts under one easy to find part number. The Corner Max system combines geometry corrected a-arms with tall ball joints, higher rate springs, UMI rebound adjustable monotube shocks, heavy duty sway bar and a bump steer kit. The foundation of the kit includes our coilover-only lower a-arms featuring caster improvement, tall ball joints, and the ability to remove the spring and shock without taking the spindle apart. The upper a-arm features rod ends for smooth operation and the ability to adjust without shims. The 1-5/16” sway bar upgrade complete with UMI’s fabricated end links reduces body roll and helps speed transitions. Racing coilover springs are paired with UMI’s rebound adjustable coilover monotube shocks. Fine tuning is accomplished with a UMI bump steer kit. The Corner Max kit is built to make the stock GM clip work as well as it possibly can with a true bolt-on kit. All UMI Performance parts are fabricated and raced with pride out of Philipsburg, PA – USA. Race proven on the UMI LeMans.
UMI’s Corner Max front kit includes geometry-corrected A-arms, tall ball joints, Viking shocks, 1-5/16” sway bar, racing coilover springs, and a bump steer kit. Bolt-on, 0–2” lowering, 10° caster, and track-ready performance. Made in USA.
Exceptional handling at 0-2” lowering. For additional lowering see Corner Max kit with drop spindles included, P/N 4065xx.
UMI rebound adjustable monotube shock with road race valving, 40 clicks of adjustment.
Easily change shocks and springs at the track with UMI’s unique quick change system.
Shocks have easy access adjustment in engine bay area for quick changes at the track.
Easily change shocks and springs at the track with UMI’s unique quick change system

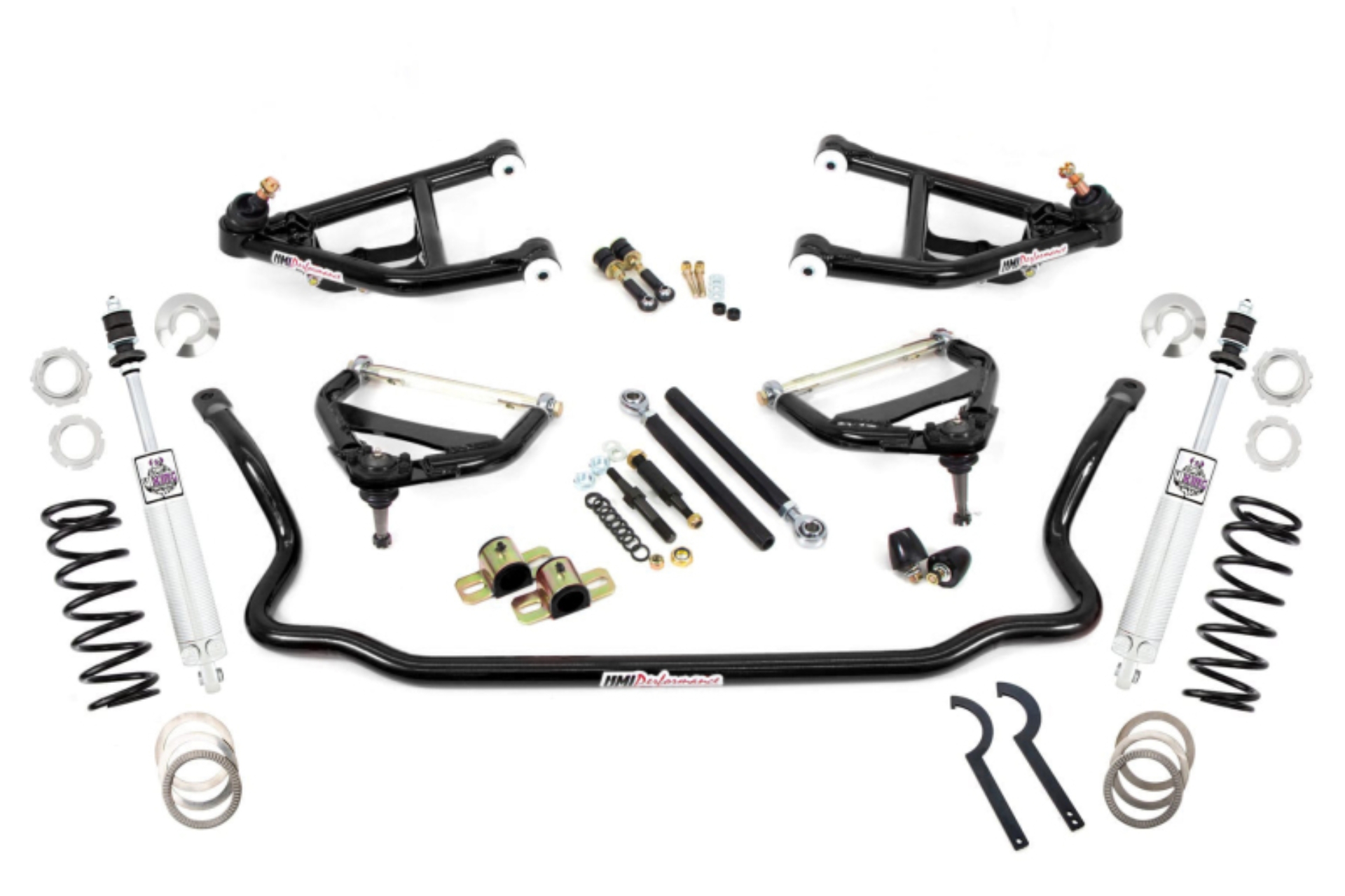

UMI Performance 68-70 GM A-Body Corner Max Street Handling Race Package - Black
UMI Corner Max Kit: A-arms, shocks, sway bar & springs for ultimate cornering.
All UMI suspension components are designed and manufactured in the USA.
1-5/16” solid sway bar with swivel end links to balance kit properly.
Thrust bearings and adjusting wrench included for easy height changes.
All UMI suspension components are designed and manufactured in the USA
1-5/16” solid sway bar with swivel end links to balance kit properly
Thrust bearings and adjusting wrench included for easy height changes
Up to 10 degrees static caster without moving the spindle pin.
Up to 10 degrees static caster without moving the spindle pin
850 lb/in race proven spring rates for exceptional handling.
850 lb/in race proven spring rates for exceptional handling
½” tall lower and 0.9” tall upper ball joints.
½” tall lower and 0.9” tall upper ball joints
Raced and tested on UMI’s 1972 LeMans test car.
Raced and tested on UMI’s 1972 LeMans test car
Designed to work with factory spindles.
Up to 1.2 degrees per inch camber gain.
Exceptional handling at 0-2” lowering
Designed to work with factory spindles
Up to 1.2 degrees per inch camber gain
Bump steer kit for fine tuning.
Bump steer kit for fine tuning
UMI- Cornermax Handling Kit
CornerMax Kit
Viking shocks
Features:
