UMI's complete lowering kit gives your truck a sleek, aggressive lowered stance with performance to match. UMI brackets, leaf spring shackles, flip kit and coilover front springs are paired with industry leading Viking adjustable shocks to round out the high performance package. Front ride height is adjustable via the coilover while the rear has multiple settings available from the shackle kit. Double adjustable shocks featuring 19 position compression, 19 position rebound adjustments help dial in the ride and handling, giving you a truck you still enjoy to drive. This lowering kit is at home as a daily driver, carving corners in the mountains or navigating cones at your local autocross. UMI's complete lowering kit includes all components needed to lower your truck up to 4" in the front and 6.5" in the rear.
Fitment Note: Does not fit trucks equipped with PowerBoost due to drive shaft clearance. Vehicles equipped with headlight sensors will require bracket PN 6576. Most Platinum and Lariat models featured headlight sensors. Most trucks can lower up to 3-4 inches in the front while still aligning properly using factory a-arms.
UMI’s complete lowering kit delivers up to a 1.5-4″F/3.5-5″R drop with coilovers, flip kit, and shackles. Viking double adjustable shocks fine-tune ride and handling for daily driving, mountain runs, or autocross performance.
Viking dampers front and rear, 19 position compression and 19 position rebound adjustable
Heavy duty 4 position adjustable rear shackle with precision squeak-free Delrin bushings
2.5 degree pinion shims and transmission spacer allow for drive line angle adjustment

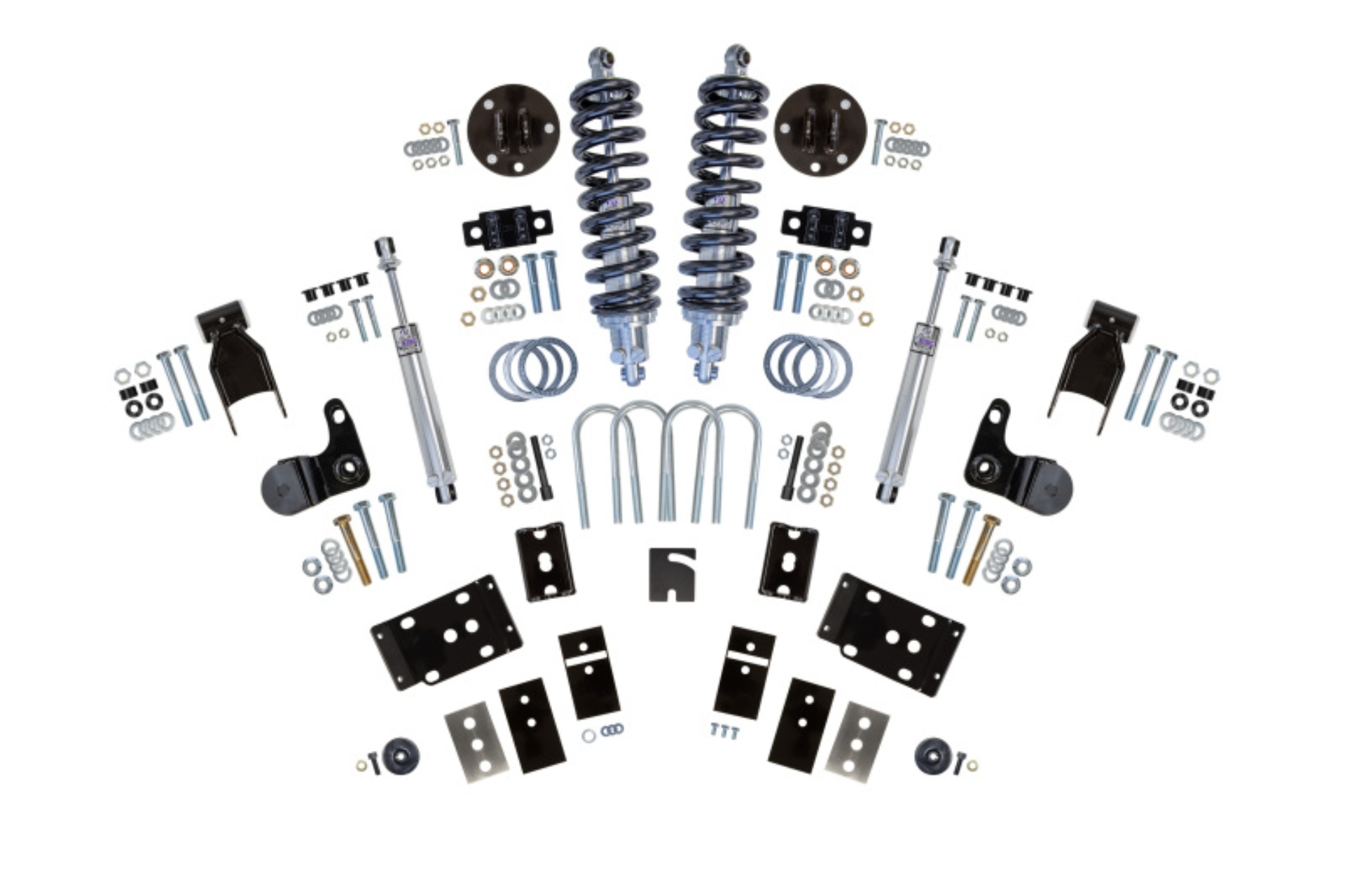

UMI Performance 15-24 Ford F-150 Complete Lowering Kit (Adjustable Height)
UMI kit 1.5-4″/4-6.5″ with coilovers, shackles, and Viking shocks, 4wd
Strong double shear front mounts compatible with factory lower a-arms
600 lb/in (2WD) and 850 lb/in (4WD) front spring rate options
Longer leaf spring pins and new bump stops included with kit
U-bolt plates feature shock relocation kit mounting holes
Works on trucks with steel or composite leaf springs
Easy front height adjustment using coilover design
100% Direct bolt in design
UMI- Complete Lowering Kit
Street and Race Proven
4WD lowering kit
100% Made In USA
see p/n 6564
