ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2023-2026 F-250 and F-350 pickup trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.
APPLICATION NOTE #464: Due to tight clearances and varying placement of vehicle’s wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness. If adequate clearance cannot be achieved, please contact ICON Customer Service.
ICON's 2.5 Series Remote Reservoir Bolt-In Coilover Kit will add a new level of performance and adjustability to the 23-25 Ford Super Duty. Increasing the overall damping ability while allowing for user-defined ride height adjustment.
APPLICATION NOTE #462: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
APPLICATION NOTE #677: Also requires appropriate caster cams, aftermarket radius arm kit, or 4-link conversion to correct caster angle for lift height. All sold separately.
APPLICATION NOTE #463: If installing with ICON 2.5 Series remote reservoir secondary shocks, reservoir doubler kit part number 611003 is also required
APPLICATION NOTE #458: 2023-2026 Super Duty diesel models equipped with Tremor package will have front lift height range of 1.5-2" over stock
APPLICATION NOTE #460: 2023-2026 Super Duty gas models equipped with Tremor package will have front lift height range of 2-2.5" over stock
APPLICATION NOTE #457: 2023-2026 Super Duty diesel models without Tremor package will have front lift height range of 2.5-3" over stock
APPLICATION NOTE #459: 2023-2026 Super Duty gas models without Tremor package will have front lift height range of 3-3.5" over stock
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with fender trimming and modifications required)
APPLICATION NOTE #88: Removal of the coil centering cup in factory coil bucket required for installation
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
APPLICATION NOTE #30: An adjustable track bar is recommended to realign the axle but not required.

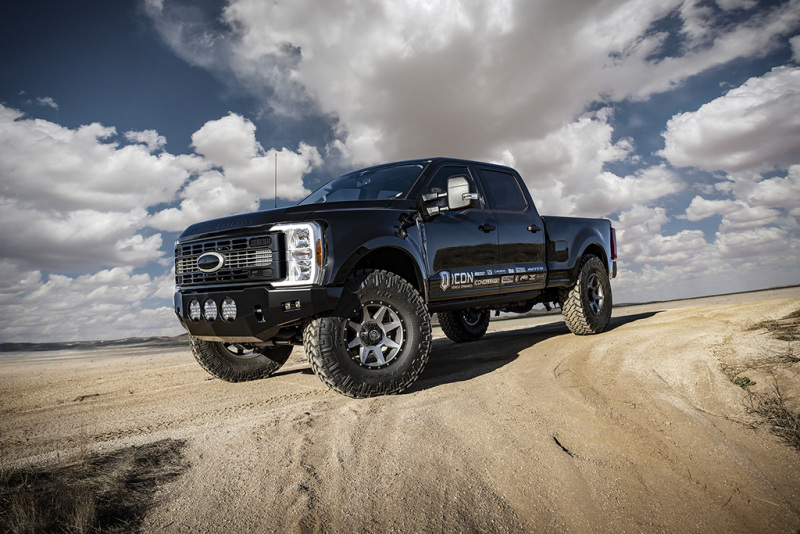

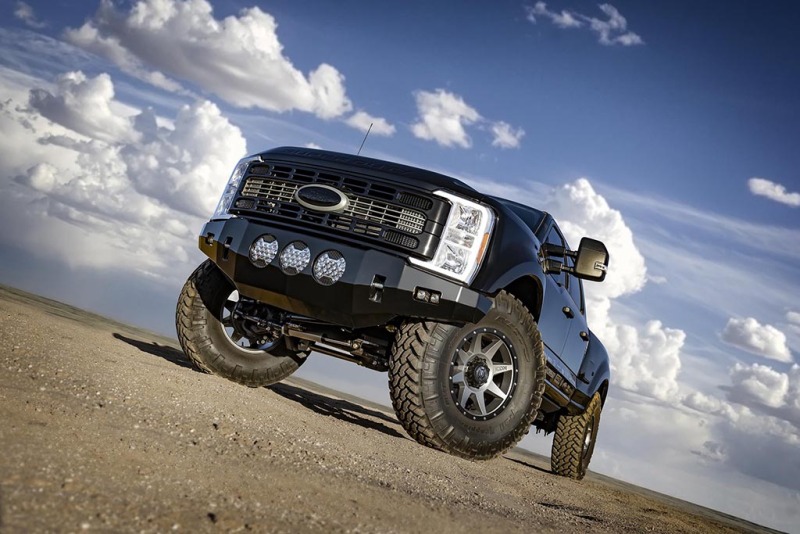

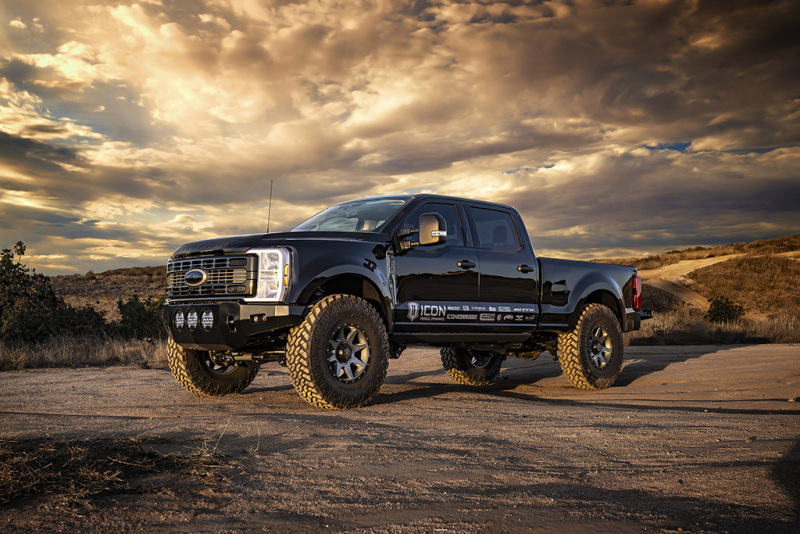

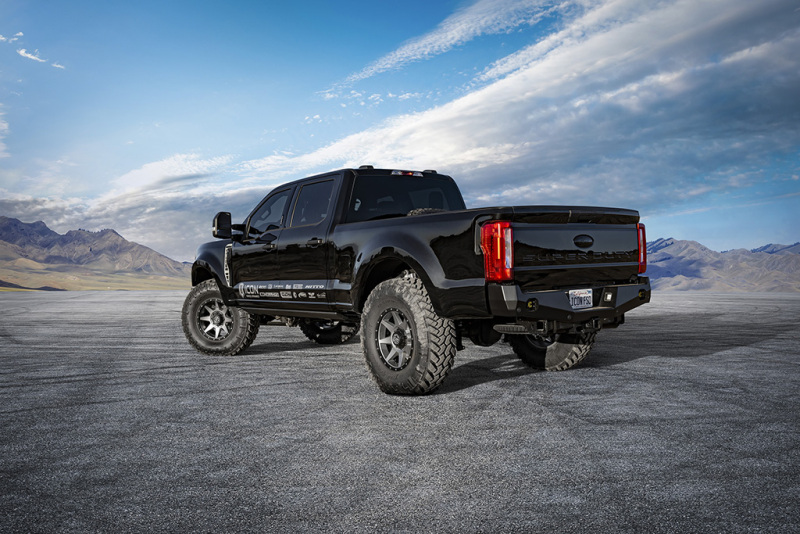

ICON 23-25 Ford F-250/F-350 Super Duty 4WD 2.5-3in Lift VS 2.5 Series Coilover Conversion Kit
APPLICATION NOTE #120: Secondary shock options available, contact ICON for more details.
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Vehicle-specific shock valving provides unparalleled ride quality and control
ICON engineered coil springs guaranteed for life against sagging or breakage
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
FK Rod End bearings for extended longevity and minimal deflection
23-26 F250/F350 4WD 2.5-3" 2.5 VS RR BOLT IN CO CONVERSION KIT
Decreased body roll and improved on and off-road ride dynamics
Coilover conversion allows for addition of secondary shock
Ride height adjustable coilovers provide 2.5-3"
Bolt-in system fits in OE coil bucket location
Shocks are fully rebuildable and revalveable
APPLICATION NOTE #1: Only fits 4WD models
Factory Wheels & Tires Fitment: Yes
COILOVER KIT
Coilover Set
61723
