This Stage 4 system features the 2022-2025 Toyota Tundra VS 3.0 Series remote reservoir front coilovers equipped with CDE Valves. These adjustable coilovers allow up to 2-3.25” of lift height adjustability over stock when using the ICON tubular front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. The larger 3.0 Series shocks offer 50% more piston surface area in the ride zone of the shock's travel, and 100% in the “Bump Zone”, compared to 2.5 Series shocks. The multi-stage hydraulic Bump Zone exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. Additionally, ICON’s Vehicle-specific shock length yields the maximum travel possible (up to 40% increase over stock), all translating into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions.
Rounding out the Stage 4 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2022-2025 Tundra. The 2.5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Also equipped with CDE Valves, these offer active, on the fly compression damping adjustment from soft to hard. Their pairing with the ICON V.S. 3.0 Series CDEV front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.
The ICON Vehicle Dynamics Stage 4 3.0 complete suspension system for the 2022-2025 Toyota Tundra builds upon the Stage 1 3.0 suspension system with the upgrade to CDEV and ICON Intelligent control (IIC) for in vehicle, active compression damping adjustment. To compliment the 3.0 Series coilover shocks, 2.5 Aluminum Series CDEV rear remote reservoir shocks are included along with billet aluminum front upper control arms and a billet rear upper/lower link combo, and a front sway bar drop kit. This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires.
ICON tubular steel adjustable rear upper and lower links are made from 1-3/4 x .313 wall DOM tubing and a multi-stage black powder coat finish for corrosion resistance. These rear link arm kits feature PTFE-lined FK rod ends for increased suspension articulation, reduced deflection, and link arm length adjustability. Additionally, multi durometer bushings are installed that allow for noise free operation and maximum angularity without the need for periodic greasing and/or other maintenance.
The included ICON tubular upper control arm kit is designed to improve the overall performance of the new 2022-2025 Toyota Tundra with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind.
TECH NOTE: Included rear shocks are compatible with 0-1.5" of rear lift over stock on models equipped with rear coil springs without TRD suspension package. Rear shocks are compatible with 0-1" of rear lift over stock on models equipped with rear coil springs with TRD suspension package and TRD Pro.
APPLICATION NOTE #149: For 4WD models without TRD Off-Road package ICON recommends using ICON Diff Drop (Part# 55156) or using Toyota TRD axles (Part# 434200C020 Driver / 434100C020 Pass). Failure to do so could result in front axle damage. Not required for TRD Pro.
Stage 4 includes 3.0 remote reservoir coilovers for 1.25-3.25” of lift, max off-road performance and 35” tire fitment. Tubular UCAs, links and 2.5 Series remote reservoir shocks for balanced shock tuning. CDEV for active damping adjustment.
The included sway bar drop brackets help minimize sway bar link bind through the suspension travel range. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components.
ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
APPLICATION NOTE #141: Tundra/Sequoia equipped with automatic leveling headlights or Load-Leveling Rear Height Control Air Suspension, part # 55153 is also required
APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift lange.
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
2.5 Aluminum Series rear remote reservoir shocks provide increased performance, 20% increase in wheel travel, and balanced tune with coilovers
TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 2-2.75" over stock
TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 2-3.25" over stock
APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
TECH NOTE: Tundra SR5 equipped with TRD Sport Suspension package will have lift height range of 3-4.5” over stock
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
Adjustable front ride heights from 2-3.25” of front lift over stock when used with included tubular UCAs
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
Tubular rear upper and lower links improve rear end articulation and allow for pinion angle adjustment
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
APPLICATION NOTE #171: If equipped with TRD aluminum skid plate part # 55164 is also required
APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control app
Tubular UCAs for added strength, durability, and alignment correction for better drivability
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset

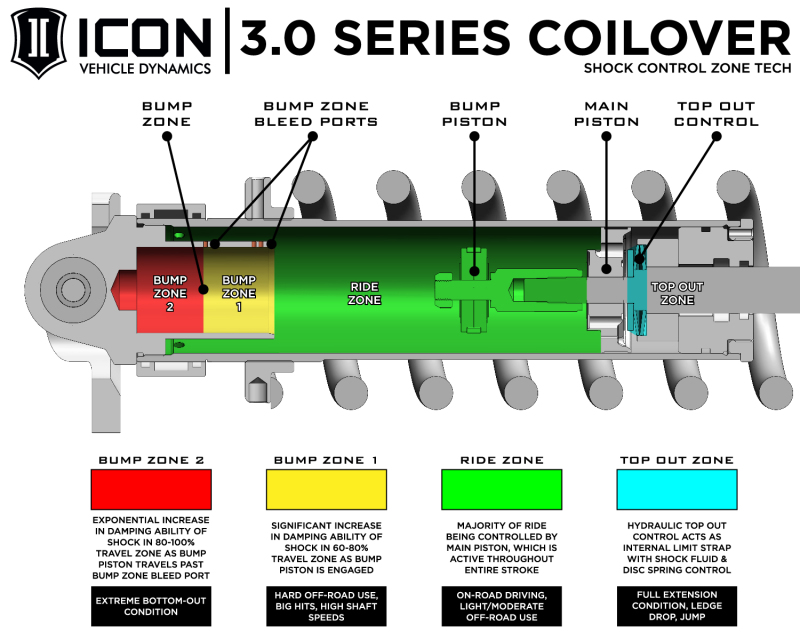

3.0 Series front coilovers with ICON’s multi-stage, tunable hydraulic “Bump Zone”
TECH NOTE: Tundra TRD Pro will have front lift height range of 0-1.75" over stock
ICON 22-23 Toyota Tundra 2-3.5in Stage 4 3.0 Suspension System - Tubular
Included sway bar drop brackets reduce bind in OE sway bar links
All ICON shock absorbers are fully rebuildable and re-tunable
22-25 TUNDRA 2-3.25" STAGE 4 3.0 SUSPENSION SYSTEM TUBULAR
Vehicle specific design for 2022-2025 Toyota Tundra
OEM Wheels & Tires Fitment: Yes
Suspension Lift Kit
SUSPENSION SYSTEM
K53214T
