Compared to the 2.5” diameter coilovers the 3.0 Series shocks see a piston surface area increase of 50% in the ride zone, and 100% in the “Bump Zone”. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. The multi-stage hydraulic Bump Zone featured in these 3.0 Series shocks exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles.
While ICON’s 2.5 Series coilovers are an excellent choice for drivers looking for a great all-around performance upgrade, there are a select few drivers seeking to drive their vehicles in a manner and in terrain that beckons for more. The ICON Vehicle Dynamics 2007-2021 Toyota Tundra/2008-2022 Toyota Sequoia 3.0 Series Coilover Kit was designed to take the off-road capability of the truck to new levels by increasing wheel travel and significantly improving the damping ability of the front shocks.
These 3.0 Series coilovers were designed as an OEM shock replacement, making install a simple and straightforward bolt-on affair. Built in ride height adjustability yields 1.63-3.5” of front lift height allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components such as ICON engineered coil springs and FK Rod End bearings are used to ensure these shocks function to their maximum potential without issue.
These 3.0 Series coilovers were designed as an OEM shock replacement, making install a simple and straightforward bolt-on affair. Built in ride height adjustability yields 1.63-3.5” of front lift height allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components such as Eibach coil springs and FK Rod End bearings are used to ensure these shocks function to their maximum potential without issue.
These ICON coilovers feature 3.0 Series shocks and coil springs optimized for this application. The shock’s larger 3.0” body and increased piston area improves damping ability and ride quality across varying types of terrain.
Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations
ICON’s multi-stage, tunable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Increased wheel travel and vehicle specific valving provides comfortable and consistent ride quality on and off-road
10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping with temperature increase
APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
“ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
Significant increase in damping ability for excellent performance in extreme off-road conditions
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms ONLY
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset
High quality ICON-engineered coil springs offer increased travel and performance
PTFE lined COM12 spherical bearings ensure maximum strength and durability
Adjustable coilovers provide 1.63-3.5” of front lift height over stock
Multi stage CAD plated shock body with hard anodized piston and top cap

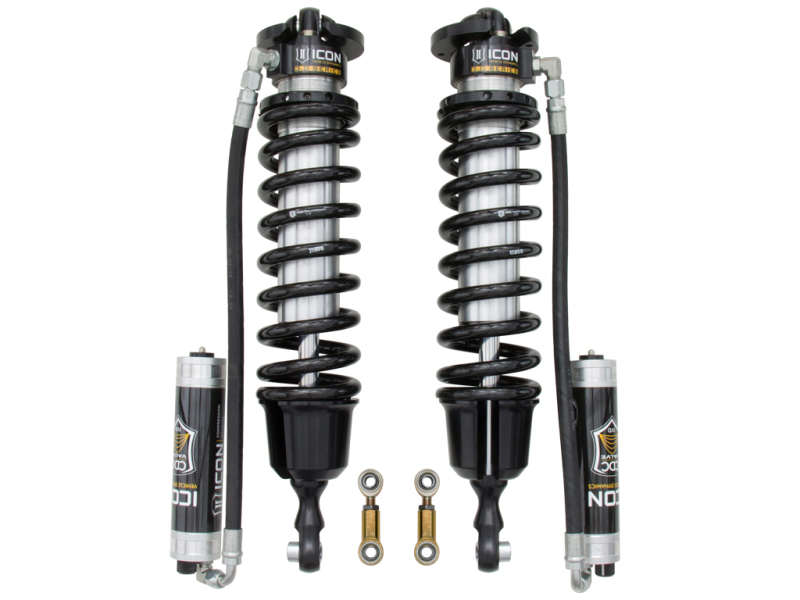

ICON 2007+ Toyota Tundra 3.0 Series Shocks VS RR CDCV Coilover Kit
APPLICATION NOTE #110: Trimming required for recommended tire size
2007-2021 TOYOTA TUNDRA 3.0 VS REMOTE RESERVOIR CDCV COILOVER KIT
Direct bolt-in to OEM shock location makes for an easy install
07-21 TUNDRA/08-22 SEQUOIA 3.0 VS RR CDCV COILOVER KIT
Heavy duty 1” CNC machined shock shafts
07-21 TUNDRA 3.0 VS RR CDCV COILOVER KIT
OEM Wheels & Tires Fitment: Yes
07-21 TUNDRA 3.0 COILOVER KIT
Fully serviceable
COILOVER KIT
Coilover Set
58755
