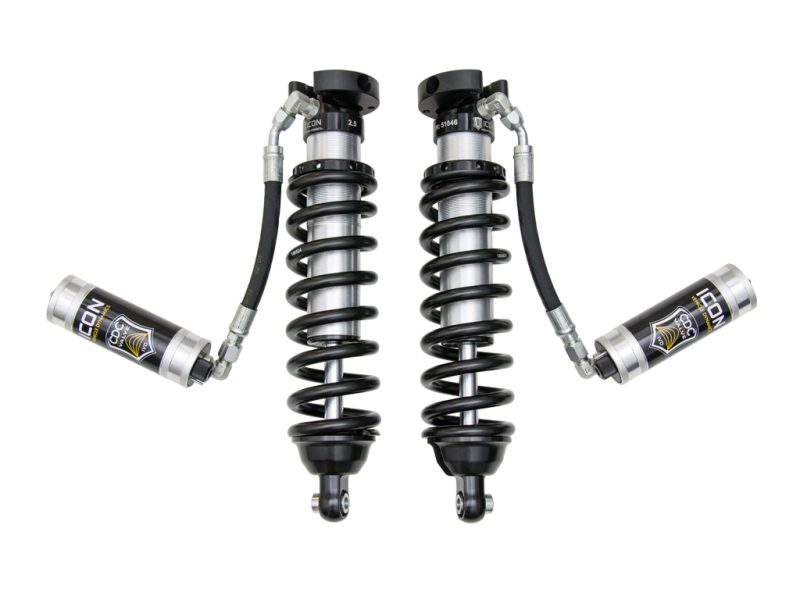

ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 1996-2004 Toyota Tacoma 4WD/Prerunner. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON rear 2.0 Aluminum Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Tacoma.
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
Corrosion resistant CAD plated shock body with 7/8" induction hardened, chrome plated shaft
External reservoir to attain cooler operating temperatures during extended off-road use
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
APPLICATION NOTE #47: 700Lb/In Expedition Coil available for heavier equipped vehicles
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
ICON 96-04 Toyota Tacoma Ext Travel 2.5 Series Shocks VS RR CDCV Coilover Kit
ICON CDCV equipped for 10 settings of external compression damping adjustment
Vehicle specific tuned front shocks for superior shock damping and control
TECH NOTE: Aftermarket front upper control arms required for installation
1996-2004 TACOMA EXT TRAVEL 2.5 VS REMOTE RESERVOIR CDCV COILOVER KIT
APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
FK Rod End bearings for extended longevity and minimal deflection
Height-adjustable coilovers offer 0-3" of lift height adjustment
100% Bolt-on - no cutting or welding necessary for installation
6061 Aircraft grade aluminum CNC machined components
96-04 TACOMA EXT TRAVEL 2.5 VS RR CDCV COILOVER KIT
Improved ride quality over stock on and off-road
96-04 TACOMA EXT 2.5 VS RR CDCV CO KIT
Increased wheel travel over stock
OEM Wheels & Tires Fitment: Yes
ICON engineered coil springs
TACOMA COILOVERS
COILOVER KIT
Coilover Set
58715C
