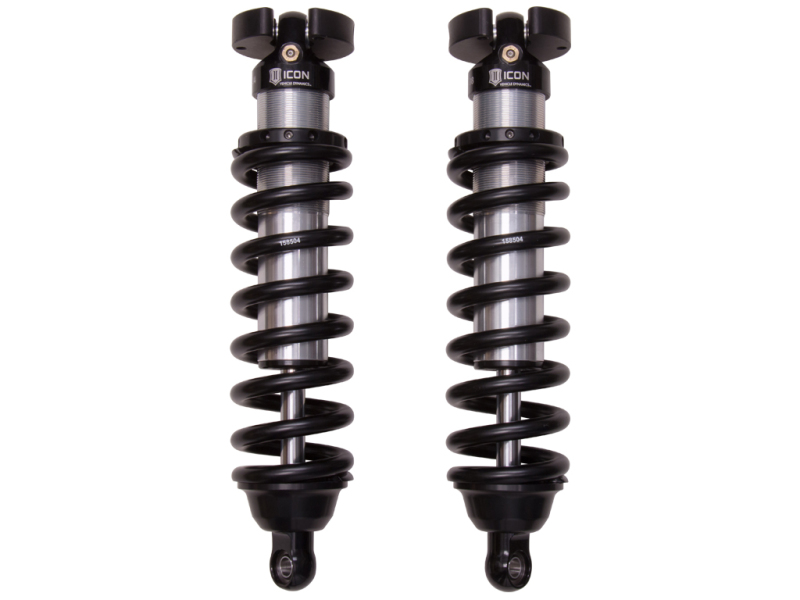

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 1996-2004 Toyota Tacoma or 1996-2002 Toyota 4Runner. These adjustable coilovers allow up to 0-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma or Toyota 4Runner.
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.
TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.
Recommended Aftermarket Tires (4Runner): 33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Tires (Tacoma): 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation
APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
ICON 96-04 Toyota Tacoma / 96-02 Toyota 4Runner Ext Travel 2.5 Series VS IR Coilover Kit w/700lb SR
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
Extended Travel length requires installation of aftermarket front upper control arms
1996-2004 TACOMA/1996-2002 4RUNNER EXT TRAVEL 2.5 VS IR COILOVER KIT 700LB COILS
Height-adjustable coilovers offer 0-3" of front lift height adjustment
APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
96-04 TACOMA/96-02 4RUNNER EXT TRAVEL 2.5 VS IR COILOVER KIT 700LB
FK rod end bearings for extended longevity and minimal deflection
Vehicle specific tuned for superior shock damping and control
Increased wheel travel and improved ride quality over stock
6061 Aircraft grade aluminum CNC machined components
TACO/T4R EXT TRAVEL COILOVER KIT 700LB
Fully rebuildable and re-tunable
OEM Wheels & Tires Fitment: Yes
TACOMA COILOVERS
COILOVER KIT
Coilover Set
58615-700
