ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 1996-2004 Toyota Tacoma or 1996-2002 Toyota 4Runner. These adjustable coilovers allow up to 0-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma or Toyota 4Runner.
These adjustable coil-over shocks have proven their strength and longevity for years on end and they keep going. These shocks offer the best ride quality and handling. They increase suspension travel and dramatically increase the capabilities of your Tacoma or 4Runner's front suspension. These are a Race-Proven shock designed for the daily driver and the avid off-roader all in one!
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.
Recommended Aftermarket Tires (4Runner): 33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Tires (Tacoma): 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation
Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
APPLICATION NOTE #47: 700Lb/In Expedition Coil available for heavier equipped vehicles
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset

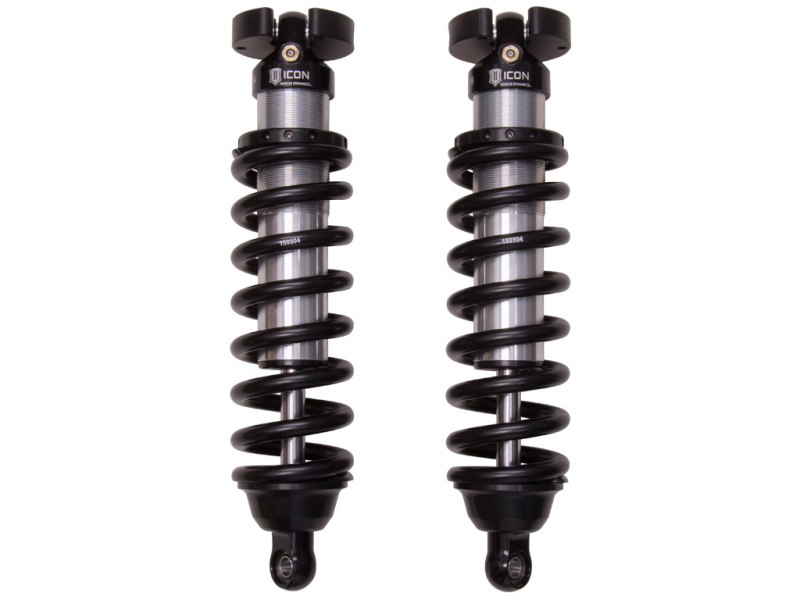

ICON 96-04 Toyota Tacoma / 96-02 Toyota 4Runner 2.5 Series Shocks VS IR Coilover Kit
Height-adjustable coilovers offer 0-3" of front lift height adjustment
APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
FK rod end bearings for extended longevity and minimal deflection
Vehicle specific tuned for superior shock damping and control
Increased wheel travel and improved ride quality over stock
1996-2004 TACOMA/1996-2002 4RUNNER 2.5 VS IR COILOVER KIT
6061 Aircraft grade aluminum CNC machined components
96-04 TACOMA/96-02 4RUNNER 2.5 VS IR COILOVER KIT
250 PSI nitrogen-charged internal reservoir
TACOMA/4RUNNER 2.5 VS IR COILOVER KIT
Fully rebuildable and re-tunable
OEM Wheels & Tires Fitment: Yes
ICON engineered coil springs
FRONT COILOVER KIT
COILOVER KIT
Coilover Set
58610
