ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 1996-2002 Toyota 4Runner. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. When paired with ICON rear 2.0 Aluminum Series or 2.5" Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 4Runner.
ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 1996-2002 Toyota 4Runner. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. When paired with ICON rear 2.0 Aluminum Series or 2.5" Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Tacoma.
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation
APPLICATION NOTE #35: Remote reservoir mounting brackets may interfere with aftermarket bumper mounts/windshield washer bottles
Recommended Aftermarket Tires: 33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
Corrosion resistant CAD plated shock body with 7/8" induction hardened, chrome plated shaft
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
External reservoir to attain cooler operating temperatures during extended off-road use
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
APPLICATION NOTE #47: 700Lb/In Expedition Coil available for heavier equipped vehicles
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
Vehicle specific tuned front shocks for superior shock damping and control

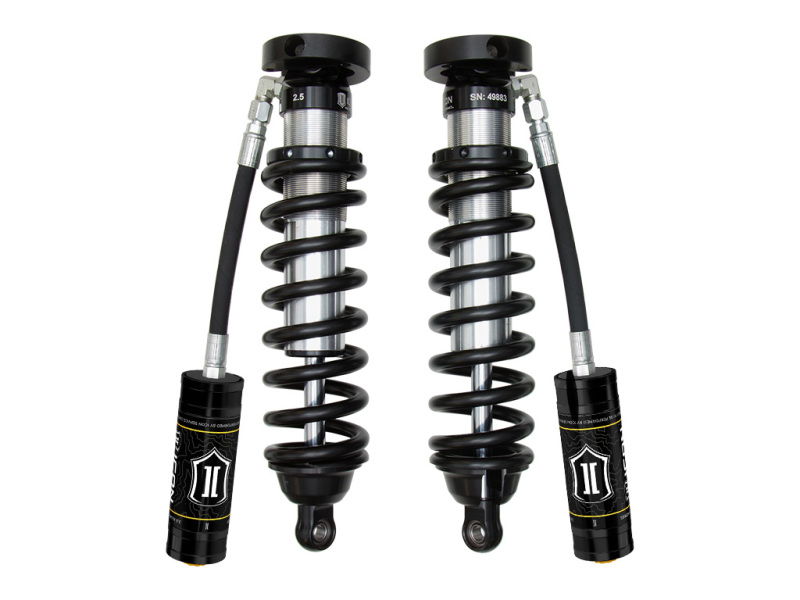

ICON 96-02 Toyota 4Runner Ext Travel 2.5 Series Shocks VS RR Coilover Kit
1996-2002 4RUNNER 2.5 VS EXTENDED TRAVEL REMOTE RESERVOIR COILOVER KIT
FK Rod End bearings for extended longevity and minimal deflection
Height-adjustable coilovers offer 0-3" of lift height adjustment
100% Bolt-on - no cutting or welding necessary for installation
Aftermarket front upper control arms required for installation
Increased wheel travel over ICON standard travel coilovers
Improved ride quality over stock both on and off-road
6061 Aircraft grade aluminum CNC machined components
96-02 4RUNNER 2.5 VS EXT TRAV RR COILOVER KIT
4RUNNER 2.5 VS EXT TRAV RR COILOVER KIT
OEM Wheels & Tires Fitment: Yes
ICON engineered coil springs
4RUNNER COILOVERS
COILOVER KIT
Coilover Set
58716
