The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 1996-2002 4Runner. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 adjustment settings from soft to hard. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 4Runner.
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation
APPLICATION NOTE #35: Remote reservoir mounting brackets may interfere with aftermarket bumper mounts/windshield washer bottles
Recommended Aftermarket Tires: 33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
Corrosion resistant CAD plated shock body with 7/8" induction hardened, chrome plated shaft
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
External reservoir to attain cooler operating temperatures during extended offroad use
APPLICATION NOTE #47: 700Lb/In Expedition Coil available for heavier equipped vehicles
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset

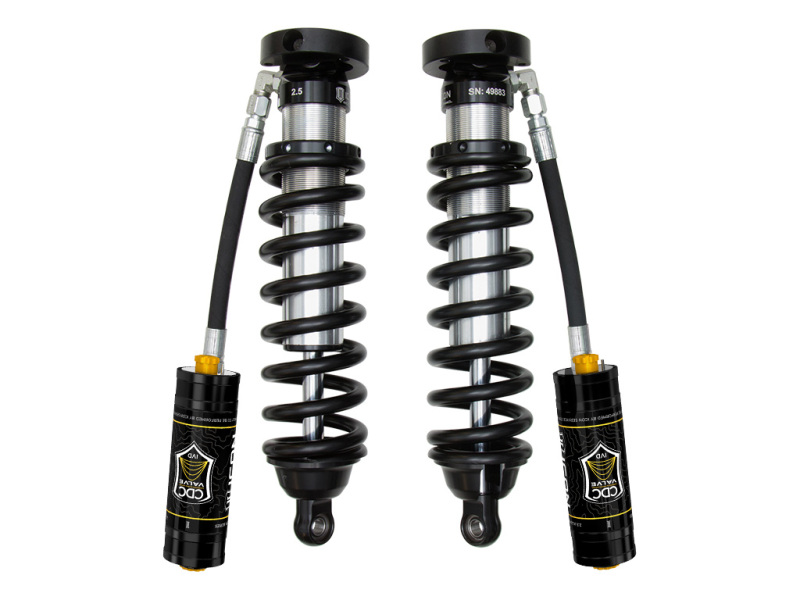

ICON 96-02 Toyota 4Runner Ext Travel 2.5 Series Shocks VS RR CDCV Coilover Kit
1996-2002 4RUNNER 2.5 VS EXTENDED TRAVEL REMOTE RESERVOIR CDCV COILOVER KIT
FK Rod End bearings for extended longevity and minimal deflection
100% Bolt-on - no drilling or welding necessary for installation
Aftermarket front upper control arms required for installation
Vehicle specific tuned for superior shock damping and control
ICON CDCV equipped for external tunability of your shocks
Height-adjustable coilovers offer 0-3" of lift height
6061 Aircraft grade aluminum CNC machined components
96-02 4RUNNER 2.5 VS EXT TRAV RR CDCV COILOVER KIT
Increased wheel travel and ride quality over stock
96-02 4RUNNER 2.5 EXT RR CDCV COILOVERS
OEM Wheels & Tires Fitment: Yes
ICON engineered coil springs
FRONT COILOVERS
COILOVER KIT
Coilover Set
58716C
