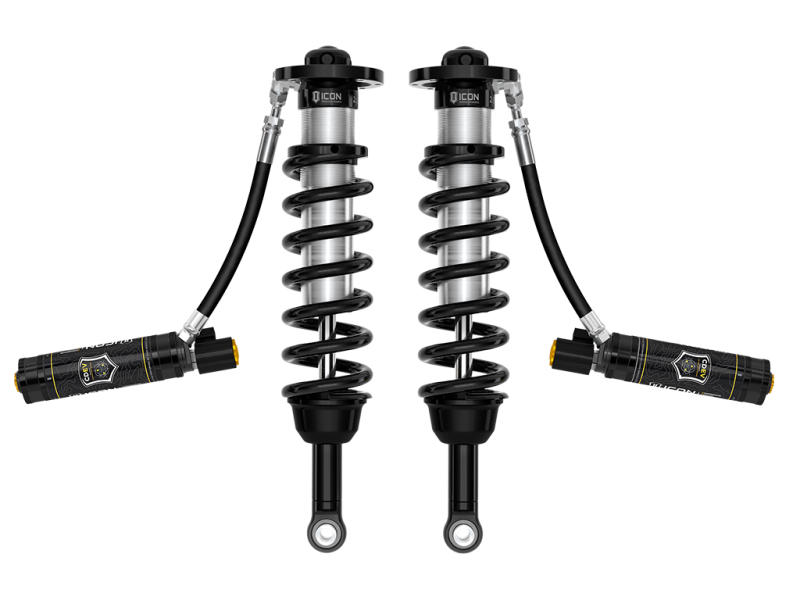

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2026 Toyota Tundra. These adjustable coilovers are specifically designed for use the ICON 6" Lift Performance Suspension System and allow up to 5-6” of front lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with 2.5 Aluminum Series CDEV rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra.
ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.
APPLICATION NOTE #383: Requires additional components to complete system. DO NOT attempt install without part numbers 51010, 51011, 51012, 51014, and 51017.
APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
APPLICATION NOTE #406: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 4.5-5.5" over stock.
APPLICATION NOTE #405: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 5-6" over stock.
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
APPLICATION NOTE #407: Tundra SR5 with TRD Sport package will have front lift height range of 6-7" over stock.
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
APPLICATION NOTE #408: Tundra TRD Pro will have front lift height range of 3.25-4.25" over stock.
APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles.
APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control app
APPLICATION NOTE #203: Also requires installation of applicable IIC kit and CDEV rear shocks
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
Remote reservoirs maintain cooler operating temperatures during extended off-road use
Specific length designed for use with ICON 6" Lift Performance Suspension System
APPLICATION NOTE #152: ICON Delta Joint Pro upper control arms required
Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
FK rod end bearings for extended longevity and minimal deflection
APPLICATION NOTE #381: Requires minimum of 20" diameter wheels.
Vehicle specific tuned for superior shock damping and control
Increased wheel travel and improved ride quality over stock
Adjustable ride height offers 5-6" of front lift over stock
ICON 22-23 Toyota Tundra 2.5 VS RR CDEV 6in Coilover Kit
6061 Aircraft grade aluminum CNC machined components
22-26 TUNDRA 2.5 VS RR CDEV 6" COILOVER KIT
Fully rebuildable and re-tunable
OEM Wheels & Tires Fitment: No
ICON engineered coil springs
Coilover Set
COILOVER KIT
58771E
