ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir rear coilover shocks with CDEV are the ideal upgrade for the rear end of the 2021-2026 Ford Bronco. These adjustable coilovers allow up to 2-3” of rear lift height adjustability on 4-door Broncos without the Sasquatch package or 1.25-2.25” of rear lift over stock 4-door Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Electronic Valves (CDEV) are included to allow for lightning fast, precise electronic shock tuning, on-the-fly, at any speed and in any terrain. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the CDEV at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. ICON 2.5 Series front coilovers with CDEV and matching IIC module are required for installation but vehicle control will be actively balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.
These rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive dual rate coil springs that provide extra weight capacity for those who frequently load out their Broncos with extra gear and equipment while maintaining excellent on- and off-road performance characteristics. Their shaft up orientation requires the reservoir hose to be routed along the rear lower links so ICON offers hose bracket options for the OE or ICON tubular links while ICON billet links incorporate this bracketry into their design.
APPLICATION NOTE #273: ICON Heavy Rate Rear Coil Springs are optimized for increased rear ride height on Broncos with additional weight added to the rear. ICON Heavy Rate Rear Coil Springs will result in a slight positive rake when the Bronco is unloaded.
These ICON coilovers feature 2.5 Series shocks with remote reservoirs and coil springs optimized per application. The shock’s bigger 2.5” body and larger piston area improves damping ability and ride quality across varying types of terrain.
ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
APPLICATION NOTE #272: Lift height ranges advertised are for 4-door models. 2-door models will net approximately .5" of additional rear lift over stock.
APPLICATION NOTE #186: Rear reservoir brackets may interfere with some aftermarket step or rock slider mounts. Modifications may be required.
Recommended Aftermarket Tires (Without Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers)
Recommended Aftermarket Tires (With Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers)
Recommended Aftermarket Wheels (Without Sasquatch Package): ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset
Recommended Aftermarket Wheels (Without Sasquatch Package): ICON Alloys - 18x9" w/ 6.00" Backspace / 25mm Offset
Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
Adjustable up to 2-3" of rear lift height on non-Sasquatch or 1.25-2.25” of rear lift on Sasquatch Broncos
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
Unique ICON engineered dual rate coil springs with increased spring rates for heavier equipped Broncos
APPLICATION NOTE #133: When Running 37" Tires Use Up Travel Limiter's Part #611074 For The Rear
APPLICATION NOTE #204: Also requires installation of applicable IIC kit and CDEV front shocks
APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control app
Remote reservoirs maintain cooler operating temperatures during extended off-road use
APPLICATION NOTE #136: When Running ICON Tubular Lower Links Use Part #611073

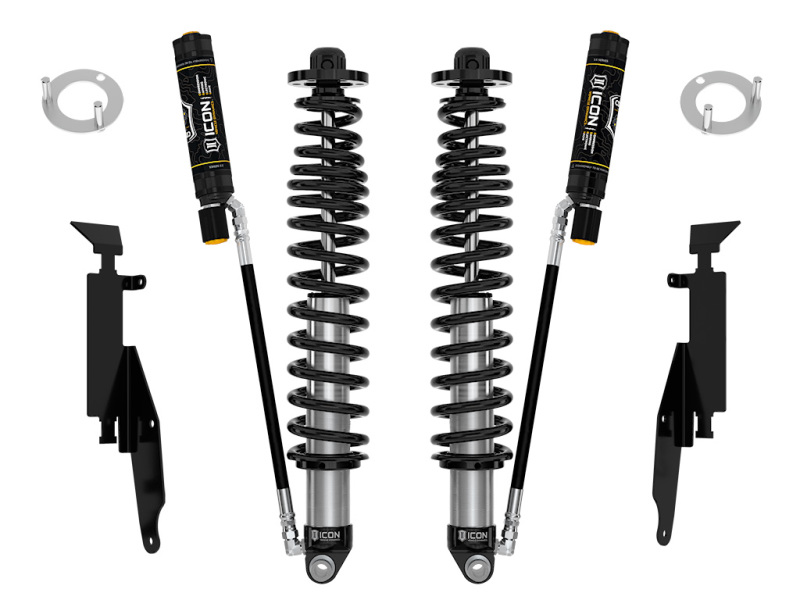

ICON 21-23 Ford Bronco Rear 2.5 VS RR CDEV Coilover Kit Heavy Rate Spring
100% Bolt-on - no drilling, cutting or welding necessary for installation
APPLICATION NOTE #137: When Running Factory Lower Links Use Part #611072
APPLICATION NOTE #66: 2 door models will sit taller than 4 door models
Corrosion resistant CAD plated shock bodies with 7/8" diameter shaft
FK rod end bearings for extended longevity and minimal deflection
Increased wheel travel (up to 14”) and ride quality over stock
21-26 BRONCO REAR 2.5 VS RR CDEV COILOVER KIT HEAVY RATE SPRING
Vehicle specific tuned for superior shock damping and control
6061 Aircraft grade aluminum CNC machined components
APPLICATION NOTE #150: Shocks are fully serviceable
APPLICATION NOTE #10: Will not fit Bronco Raptor
Fully rebuildable and re-tunable
OEM Wheels & Tires Fitment: Yes
CDEV COILOVER KIT
Coilover Set
48711E
