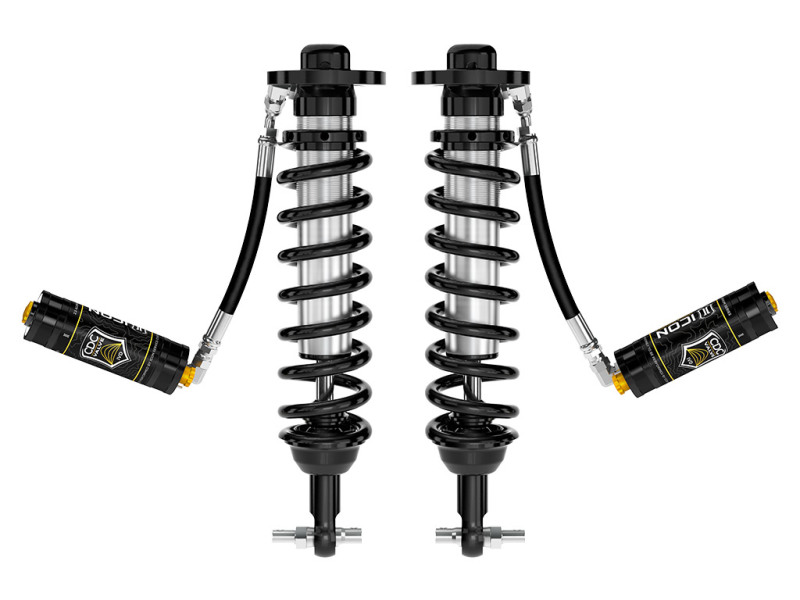

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2021-2026 Ford F-150 4WD truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-2.75” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings from soft to hard. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 2021-2026 F-150 4WD.
The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2021-UP Ford F-150 4WD truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-2.75” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings from soft to hard. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 2021-UP F-150 4WD.
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s 2.5” body and increased piston area improves damping and remote reservoirs with CDCV allow for compression damping adjustment.
OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
APPLICATION NOTE #179: Only compatible with stock or original ICON Delta Joint UCAs. Not compatible with ICON Delta Joint Pro UCAs.
Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
APPLICATION NOTE #659: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.25" over stock
APPLICATION NOTE #658: Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.5" over stock
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
APPLICATION NOTE #129: Will not work with factory installed electronically controlled suspension.
Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
External reservoirs to attain cooler operating temperatures during extended off-road use
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
ICON 2021+ Ford F-150 4WD 0-2.75in Front 2.5 Series Shocks VS RR CDCV Coilover Kit
2021-UP F150 4WD 0-2.75" LIFT 2.5 VS REMOTE RESERVOIR CDCV COILOVER KIT
TECH NOTE: F-150 Tremor trim lift height range 0-1.25" over stock
FK rod end bearings for extended longevity and minimal deflection
APPLICATION NOTE #234: Will not fit F-150 Tremor or F-150 Raptor
100% Bolt-on - no cutting or welding necessary for installation
Vehicle specific tuned for superior shock damping and control
ICON CDCV equipped for external tuneability of your shocks
2021-UP F150 4WD 0-2.75" 2.5 VS RR CDCV COILOVER KIT
6061 Aircraft grade aluminum CNC machined components
Increased wheel travel and ride quality over stock
21-26 F150 4WD 0-2.75" 2.5 VS RR CDCV COILOVER KIT
High strength alloy CNC machined lower bar pins
APPLICATION NOTE #1: Only fits 4WD models
2021-UP F150 4WD CDCV RR COILOVER KIT
Adjustable 0-2.75" lift height
ICON engineered Eibach Springs
FRONT COILOVER KIT
COILOVER KIT
Coilover Set
91823C
