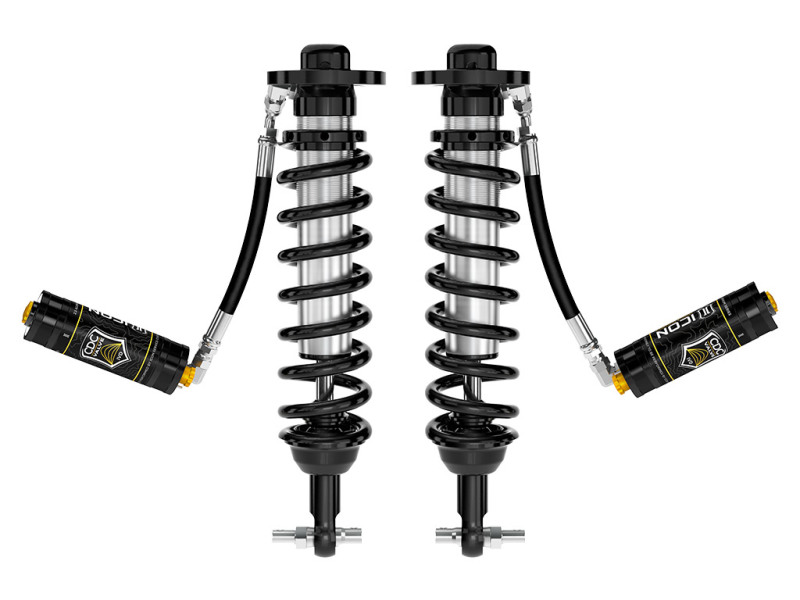

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2021-2026 Ford F-150 2WD truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings from soft to hard. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 2021-2026 F-150 2WD.
The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2021-UP Ford F-150 2WD truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings from soft to hard. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 2021-UP F-150 2WD.
ICON 2.5 Series coilovers with remote reservoirs with CDCV provide ride height adjustability from 0-3" of lift over stock. The larger 2.5” shock body and piston area over stock components provides improved damping ability and ride quality.
APPLICATION NOTE #179: Only compatible with stock or original ICON Delta Joint UCAs. Not compatible with ICON Delta Joint Pro UCAs.
Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
APPLICATION NOTE #649: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.5" over stock
APPLICATION NOTE #648: Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.75" over stock
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
APPLICATION NOTE #129: Will not work with factory installed electronically controlled suspension.
TECH NOTE: Not compatible with models equipped with Continuously Controlled Damping (CCD) system
External reservoirs to attain cooler operating temperatures during extended off-road use
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
2021-UP FORD F150 2WD 0-3" LIFT 2.5 VS REMOTE RESERVOIR CDCV COILOVER KIT
ICON 2021+ Ford F-150 2WD 0-3in 2.5 Series Shocks VS RR CDCV Coilover Kit
FK rod end bearings for extended longevity and minimal deflection
100% Bolt-on - no cutting or welding necessary for installation
Vehicle specific tuned for superior shock damping and control
APPLICATION NOTE #7: Only fits rear-wheel drive (2WD) models
Corrosion resistant CAD plated shock bodies with 7/8" shafts
ICON CDCV equipped for external tuneability of your shocks
6061 Aircraft grade aluminum CNC machined components
Increased wheel travel and ride quality over stock
High strength alloy CNC machined lower bar pins
21-UP F150 2WD 0-3" 2.5 VS RR CDCV COILOVER KIT
21-26 F150 2WD 0-3" 2.5 VS RR CDCV COILOVER KIT
Adjustable 0-3" lift height over stock
2021-UP F150 2WD CDCV RR COILOVER KIT
Factory Wheels & Tires Fitment: Yes
ICON engineered Eibach Springs
FRONT COILOVER KIT
COILOVER KIT
Coilover Set
91818C
