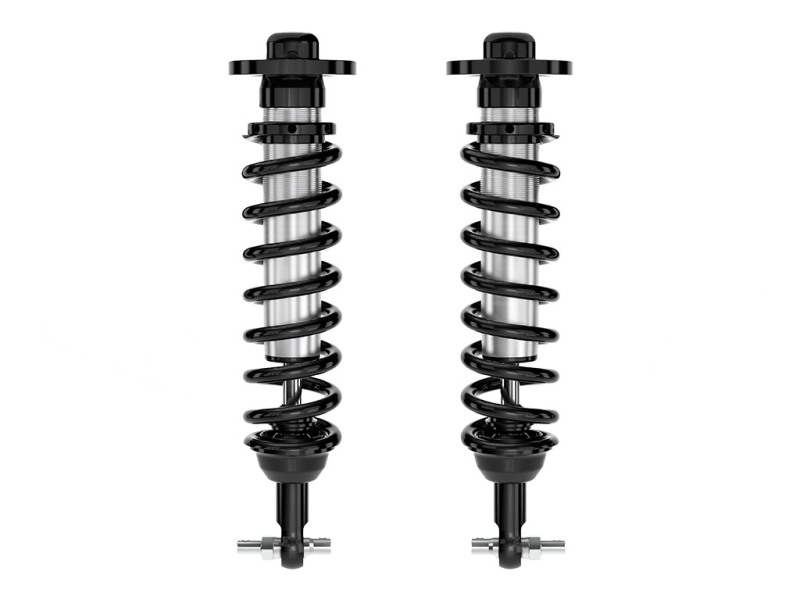

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of 2021-2026 Ford F-150 2WD trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 0-3” lift height adjustability over stock allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.
ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of 2021-UP Ford F-150 2WD trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 0-3” lift height adjustability over stock allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.
ICON 2.5 Series coilovers with internal reservoirs provide ride height adjustability from 0-3" of lift over stock. The larger 2.5” shock body and piston area over stock components provides improved damping ability and ride quality.
APPLICATION NOTE #179: Only compatible with stock or original ICON Delta Joint UCAs. Not compatible with ICON Delta Joint Pro UCAs.
Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
APPLICATION NOTE #649: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.5" over stock
APPLICATION NOTE #648: Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.75" over stock
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
APPLICATION NOTE #129: Will not work with factory installed electronically controlled suspension.
TECH NOTE: Not compatible with models equipped with Continuously Controlled Damping (CCD) system
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
100% Bolt-on - no drilling,cutting or welding necessary for installation
ICON 2021+ Ford F-150 2WD 0-3in 2.5 Series Shocks VS IR Coilover Kit
FK rod end bearings for extended longevity and minimal deflection
2021-UP F150 2WD 0-3" LIFT 2.5 VS INTERNAL RESERVOIR COILOVER KIT
Vehicle specific tuned for superior shock damping and control
APPLICATION NOTE #7: Only fits rear-wheel drive (2WD) models
Corrosion resistant CAD plated shock bodies with 7/8" shafts
6061 Aircraft grade aluminum CNC machined components
Increased wheel travel and ride quality over stock
High strength alloy CNC machined lower bar pin
21-UP F150 2WD 0-3" 2.5 VS IR COILOVER KIT
21-26 F150 2WD 0-3" 2.5 VS IR COILOVER KIT
Adjustable 0-3" lift height over stock
Factory Wheels & Tires Fitment: Yes
F150 2WD 2.5 VS IR COILOVER KIT
ICON engineered coil springs
F150 COILOVER KIT
COILOVER KIT
Coilover Set
91717
