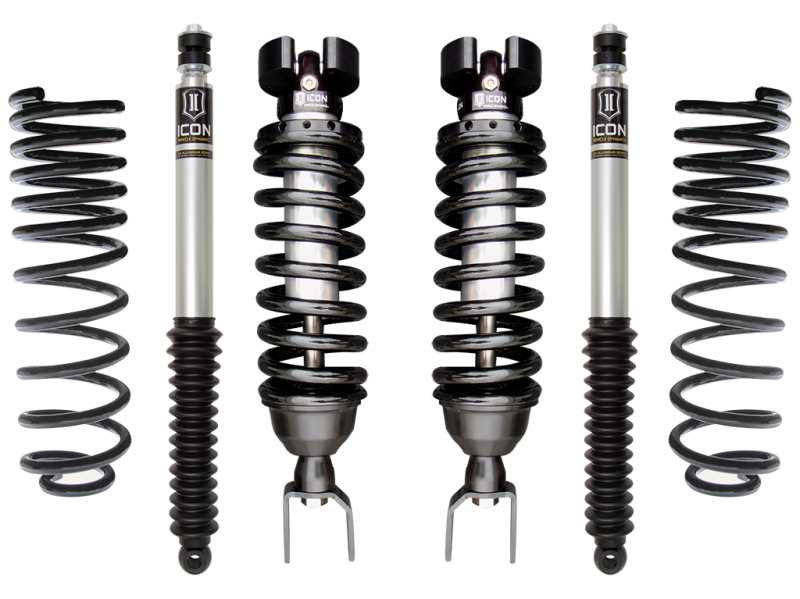

ICON Vehicle Dynamics Dodge Ram 1500 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 2 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-1.5” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks paired with 1.5:" lift, dual rate rear coil springs balance the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-UP Ram 1500 Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
With several changes being made to the 2019 RAM 1500 platform including an all-new frame, increased chassis rigidity, and a lighter overall weight, ICON’s R&D department went above and beyond to make sure the new RAM truck was properly analyzed. With these changes made by the factory, the development of new ICON rear shocks (and revised front coilover tuning) was necessary to optimize fitment and performance on this new platform.
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
1.5" lift, dual rate rear coil springs offer incredible ride quality and increased suspension performance
Adjustable coilovers from 0-1.5" of lift height allow for fitment of larger and more aggressive tires
APPLICATION NOTE #99: AIR BAGS RECOMMENDED WITH PERFORMANCE REAR SPRINGS IF VEHICLE USED FOR TOWING
TECH NOTE: 2019-Up Ram Rebel lift height range 0-.75" over stock (front) and 1" over stock (rear)
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
ICON shocks feature vehicle specific tune for superior performance and ride quality
100% Bolt-on system - no drilling, cutting, or welding necessary for install
APPLICATION NOTE #100: SPRINGS NOT RATED FOR ECO DIESEL EQUIPPED TRUCKS
APPLICATION NOTE #105: NOT FOR VEHICLES WITH REAR FACTORY AIR RIDE
TECH NOTE: Not compatible with 2019-2022 Ram 1500 Classic models
ICON 2019+ Ram 1500 2/4WD .75-2.5in Stage 2 Suspension System
2019-UP RAM 1500 4WD 0-1.5" LIFT STAGE 2 SUSPENSION SYSTEM
TECH NOTE: Not compatible with 2021-UP Ram 1500 TRX trim
19-UP RAM 1500 2/4WD 0-1.5" STAGE 2 SUSPENSION SYSTEM
6061 Aircraft grade aluminum CNC machined components
Shocks are fully rebuildable and revalvable
09-18 RAM 1500 4WD 0-1.5" STAGE 2
OEM Wheels & Tires Fitment: Yes
Fits 2WD & 4WD applications
Ships in Multiple Boxes
Suspension Lift Kit
RAM SUSP SYS STG 2
