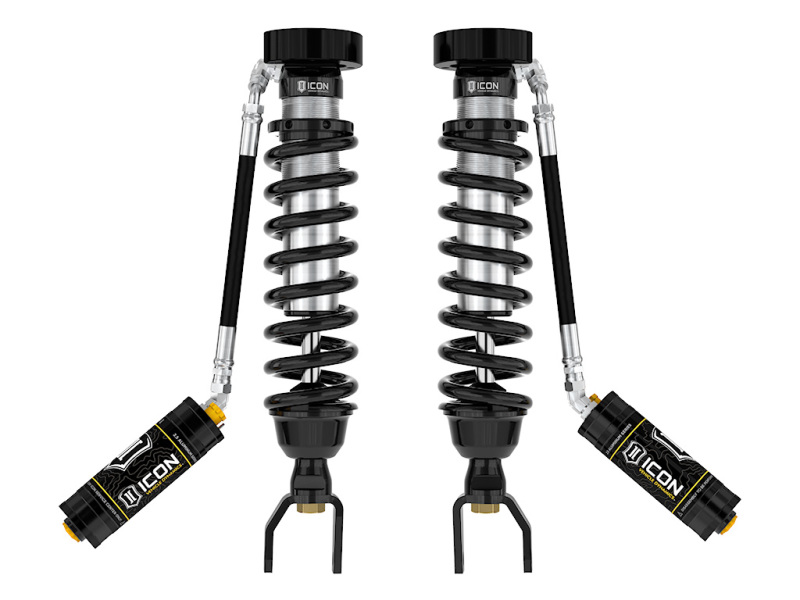

ICON Vehicle Dynamics V.S. 2.5 Series coilover shocks are an incredible upgrade for the front end of 2019-2026 Ram 1500 trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2-3” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components and application specific length to maximize wheel travel provide improved damping ability and outstanding ride characteristics across varying types of terrain. These remote reservoir coilovers will maintain lower operating temperatures and offer more consistent operation during extended or aggressive off-road use compared to internal reservoir versions. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings of compression damping adjustment, from soft to hard. When paired with ICON 2.0 Aluminum Series or 2.5 Aluminum Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ram 1500 truck.
ICON Vehicle Dynamics V.S. 2.5 Series coilover shocks are an incredible upgrade for the front end of 2019-UP Ram 1500 trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2-3” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components and application specific length to maximize wheel travel provide improved damping ability and outstanding ride characteristics across varying types of terrain. These remote reservoir coilovers will maintain lower operating temperatures and offer more consistent operation during extended or aggressive off-road use compared to internal reservoir versions. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings of compression damping adjustment, from soft to hard. When paired with ICON 2.0 Aluminum Series or 2.5 Aluminum Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ram 1500 truck.
ICON 2.5 Series coilovers are an incredible upgrade for the front of 2019-2026 Ram 1500 trucks. ICON’s Vehicle-specific valving provides a sport tuned feel while 2-3” of lift allows the use of larger, more aggressive wheel and tire combos.
Remote reservoirs maintain cooler operating temperatures and consistent operation during extended off-road use
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
Recommended Aftermarket Tires: 35" x 12.50" (fender trimming and modifications will be required.)
APPLICATION NOTE #653: 2019-2026 Ram 1500 Rebel will have lift height range 1.25-2.25" over stock
Unique valving developed for the lighter weight and chassis dynamics of the 2019-2026 Ram 1500
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
100% Bolt-on - no drilling, cutting or welding necessary for installation
APPLICATION NOTE #100: Spring not rated for EcoDiesel equipped trucks
APPLICATION NOTE #131: Will not fit 2019-2024 Ram 1500 Classic models
2019-UP RAM 1500 2-3" LIFT 2.5 VS CDCV REMOTE RESERVOIR COILOVER KIT
Corrosion resistant CAD plated shock body with 7/8" diameter shaft
APPLICATION NOTE #105: Not for vehicles with rear factory air ride
FK rod end bearings for extended longevity and minimal deflection
APPLICATION NOTE #184: Will not fit Ram 1500 TRX or Ram 1500 RHO
Vehicle specific tuned for superior shock damping and control
ICON CDCV equipped for external tuneability of your shocks
TECH NOTE: Not compatible with 2020-Up Ram 1500 TRX trims
High strength alloy CNC machined lower mounting clevis
Adjustable from 2-3" of front lift height over stock
6061 Aircraft grade aluminum CNC machined components
ICON 2019+ Ram 1500 2-3in. 2.5 VS CDCV Coilover Kit
Increased wheel travel and ride quality over stock
19-26 RAM 1500 2-3" 2.5 VS CDCV COILOVER KIT
19-UP RAM 1500 2-3" 2.5 VS CDCV COILOVER KIT
RAM 1500 2.5 VS CDCV COILOVER KIT
OEM Wheels & Tires Fitment: Yes
ICON engineered coil springs
COILOVER KIT
Coilover Set
211015C
