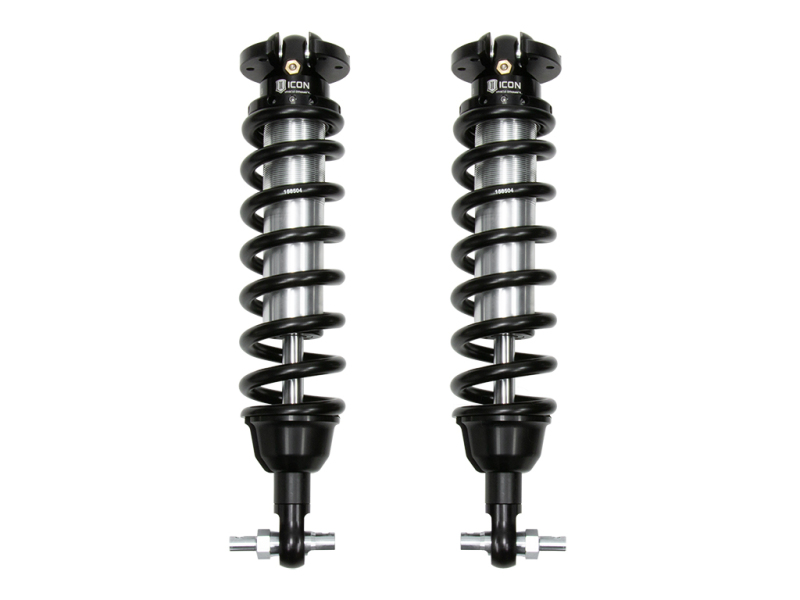

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2019-2023 Ford Ranger. These adjustable coilovers allow up to 0-3.5” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible with OE front upper control arms along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Ranger.
ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable
ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.
TECH NOTE: 2021-UP ford Ranger XLT or Lariat models equipped with Tremor package have front lift height range of 0-2.5" over stock.
Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
Recommended Aftermarket Tires: 33"x11.25" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
TECH NOTE: Ranger XLT or Lariat models equipped with Tremor package have front lift height range of 0-2.5" over stock.
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset
Superior low speed control reduces body roll and increases on-road stability
APPLICATION NOTE #110: MINOR TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE
Corrosion resistant CAD plated shock body with 7/8" diameter shaft
Bolt-in design makes for an easy install into OEM shock location
2019-UP FORD RANGER 4WD 2.5 VS INTERNAL RESERVOIR COILOVER KIT
ICON 2019+ Ford Ranger 2.5 Series Shocks VS IR Coilover Kit
Adjustable coilovers yield 0-3.5” of front lift height
TECH NOTE: Not compatible with Ranger Raptor
2019-UP RANGER 4WD 2.5 VS IR COILOVER KIT
Factory Wheels & Tires Fitment: Yes
19-23 RANGER 2.5 VS IR COILOVER KIT
2019-UP RANGER 4WD IR COILOVER KIT
COILOVER KIT
Coilover Set
91250
