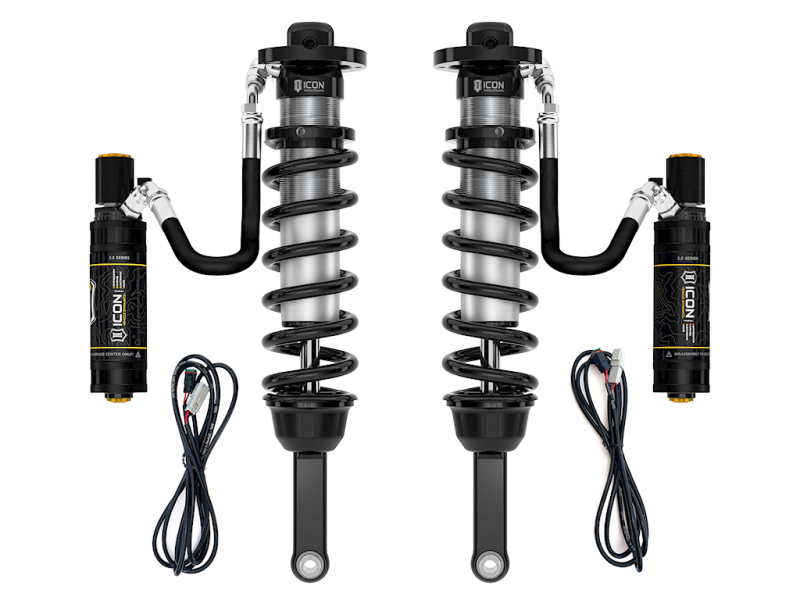

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDEV are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5" of lift height adjustability on 2005-2015 Tacomas or 0-2.75” of lift height adjustment on 2016-2023 models for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.
Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
These extended length ICON VS 2.5 Series coilovers offer increased wheel travel but also require the addition of aftermarket upper control arms. They feature remote reservoirs, are vehicle specific, 100% rebuildable, and 100% revalveable.
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25” Beyond Maximum
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock
Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
Adjustable for 0-3.5" (2005-2015 models) or 0-2.75" (2016-UP models) of lift height over stock
APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control app
APPLICATION NOTE #203: Also requires installation of applicable IIC kit and CDEV rear shocks
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
TECH NOTE: 2005-2015 Toyota Tacoma will have front lift height range of 0-3.5" over stock
External reservoirs to attain cooler operating temperatures during extended off-road use
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
APPLICATION NOTE #47: 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
2005-UP TOYOTA TACOMA EXTENDED TRAVEL 2.5 VS REMOTE RESERVOIR CDEV COILOVER KIT
TECH NOTE: Not compatible with 2005-2015 2WD 5-Lug Toyota Tacoma models
ICON 2016+ Toyota Tacoma 2.5 Series Ext Travel VS RR CDEV Coilover Kit
APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
FK rod end bearings for extended longevity and minimal deflection
APPLICATION NOTE #109: 2016-2023 Tacoma Lift Range Is 0-2.75”
Bolt-on kit - no cutting or welding necessary for installation
Vehicle specific tuned for superior shock damping and control
6061 Aircraft grade aluminum CNC machined components
05-23 TACOMA EXT TRAVEL 2.5 VS RR CDEV COILOVER KIT
05-UP TACOMA EXT TRAVEL 2.5 VS RR CDEV COILOVER KIT
Increased wheel travel and ride quality over stock
05-UP TACOMA EXT TRAVEL 2.5 CDEV CO KIT
OEM Wheels & Tires Fitment: Yes
ICON engineered Eibach Springs
CDEV COILOVER KIT
100% Revalveable
100% Rebuildable
Coilover Set
58735E
