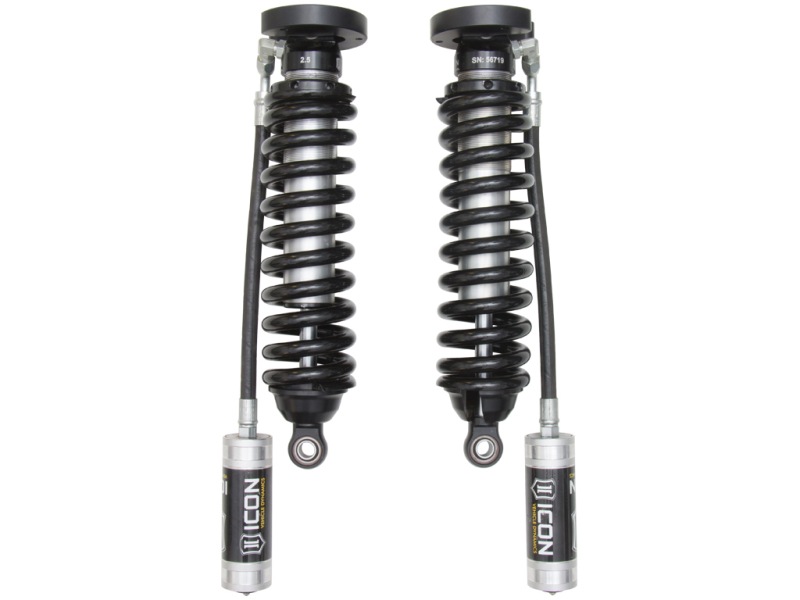

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2016-2023 Nissan Titan XD. These adjustable coilovers allow up to 2.5-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON 2.0 or 2.5 Aluminum Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Nissan Titan XD.
Adjustable coilovers allow up to 2.5-3” of lift allowing the use of larger wheel and tire combos. ICON’s Vehicle-specific shock length and valving along with the 2.5” shock body yield max travel with superior ride quality and performance.
Recommended Aftermarket Tires: 33 x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
Remote reservoirs maintain cooler operating temperatures during extended off-road use
Approximately 32% increased front wheel travel and improved ride quality over stock
Height-adjustable coilovers offer 2.5-3 of front lift height adjustment
Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
FK rod end bearings for extended longevity and minimal deflection
Vehicle specific tuned for superior shock damping and control
ICON 2016+ Nissan Titan XD 2.5 Series Shocks RR Coilover Kit
6061 Aircraft grade aluminum CNC machined components
2016-UP TITAN XD 2.5 REMOTE RESERVOIR COILOVER KIT
2016-UP TITAN XD 2.5 RR COILOVER KIT
16-23 TITAN XD 2.5 RR COILOVER KIT
Fully rebuildable and re-tunable
OEM Wheels & Tires Fitment: Yes
16-UP TITAN XD 2.5 RR CO KIT
ICON engineered coil springs
TITAN XD COILOVERS
Coilover Set
81521
