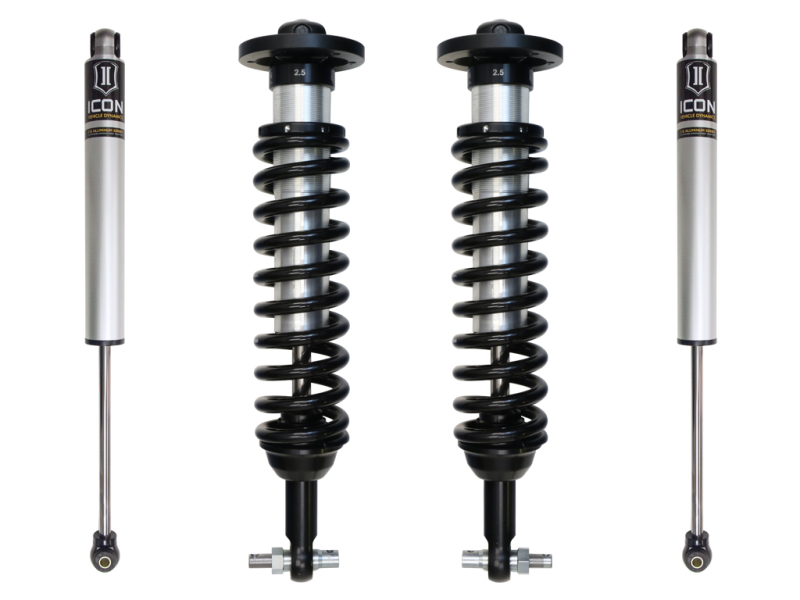

ICON Vehicle Dynamics 2015-2020 Ford F-150 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-2.63” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2015-2020 F-150 4WD Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
TECH NOTE: Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.13" over stock
TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift over stock on most models
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Vehicle specific tuned front and rear shocks for superior damping and vehicle control
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
Increased wheel travel and ride quality over stock with no change in towing capacity
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
100% Bolt-on system - no drilling, cutting, or welding necessary for install
Unique valving developed for the lighter weight of the 2015-2020 F-150
FK rod end bearings for extended longevity and minimal deflection
Corrosion resistant CAD plated coilover shock body with 7/8 shaft
2015-2020 FORD F-150 4WD 0-2.63" LIFT STAGE 1 SUSPENSION SYSTEM
ICON 2015+ Ford F-150 4WD 0-2.63in Stage 1 Suspension System
2015-2020 FORD F-150 4WD 0-2.63" STAGE 1 SUSPENSION SYSTEM
TECH NOTE: Only compatible with 4-wheel drive (4WD) models
2.0 aluminum body rear IFP shock with 5/8" polished shaft
6061 Aircraft grade aluminum CNC machined components
Adjustable coilovers from 0-2.63" of lift height
High strength alloy CNC machined lower bar pin
15-20 F-150 4WD 0-2.63" STG 1 SUSP SYS
OEM Wheels & Tires Fitment: Yes
Ships in multiple boxes
Suspension Lift Kit
SUSPENSION SYSTEM
