ICON engineers’ primary focus for the GM Colorado / Canyon was to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. Researching each component of the GM platform’s suspension and addressing any areas where performance could be extracted, a 25% increase in overall wheel travel was achieved. The Stage 3 system includes vehicle specific tuned 2.5” coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 1.75-3” of lift over stock allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series piggyback reservoir rear shocks utilize a vehicle specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2015-2022 GM Colorado/Canyon Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
ICON suspension systems lift your Colorado/Canyon while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Recommended Aftermarket Tires: 32" x 11.00" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Vehicle specific tuned front and rear shocks for superior shock damping and control
TECH NOTE: Included rear shocks are compatible with 0-2" of rear lift over stock
100% Bolt-on system - no drilling or welding necessary for install
TECH NOTE: Canyon AT4 front lift height range is .75-2" over stock
Improved ride quality over stock with no change in towing capacity
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
FK Rod End bearings for extended longevity and minimal deflection

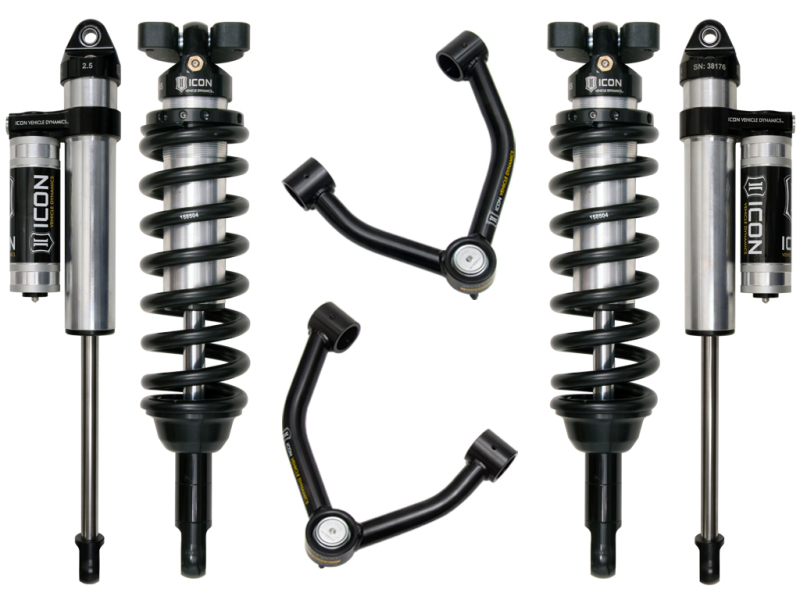

ICON 2015+ Chevrolet Colorado 1.75-3in Stage 3 Suspension System
Height-adjustable coilovers offer 1.75-3" of lift height
6061 Aircraft grade aluminum CNC machined components
15-UP COLORADO 1.75-3" STAGE 3 SUSPENSION SYSTEM
15-22 COLORADO 1.75-3" STAGE 3 SUSPENSION SYSTEM
Tubular steel Delta Joint upper control arms
TECH NOTE: Not compatible with Colorado ZR2
25% increase in wheel travel over stock
15-UP COLORADO 1.75-3" STAGE 3 SYSTEM
OEM Wheels & Tires Fitment: Yes
Compatible with diesel models
Ships in multiple boxes
Fits 2WD and 4WD models
Suspension Lift Kit
SUSPENSION SYSTEM
K73053
