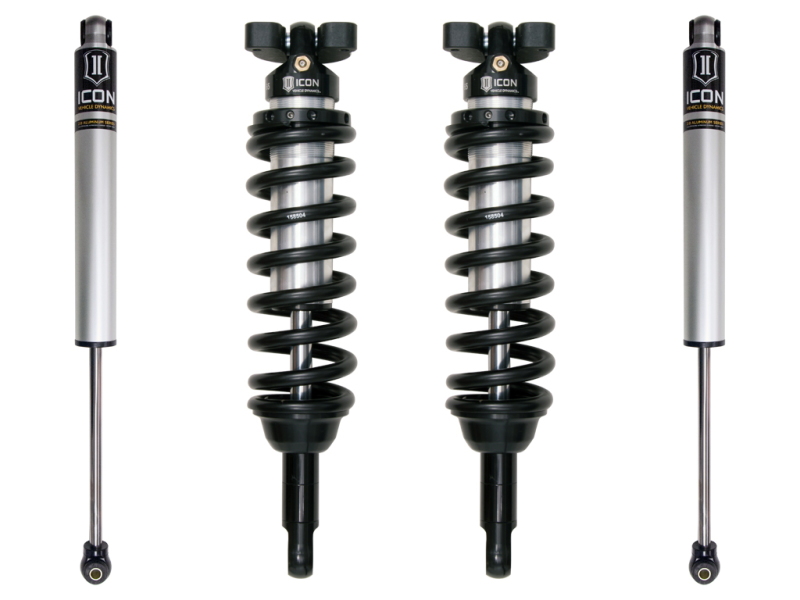

ICON engineers’ primary focus for the GM Colorado / Canyon was to increase wheel travel and damping ability to provide outstanding vehicle control and ride quality both on and off-road. Researching each component of the GM platform’s suspension and addressing any areas where performance could be extracted, a 25% increase in overall wheel travel was achieved. The Stage 1 system includes vehicle specific tuned 2.5 coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 1.75-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2015-2022 GM Colorado/Canyon Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
ICON engineers’ primary focus for the GM Colorado / Canyon was to increase wheel travel and damping ability to provide outstanding vehicle control and ride quality both on and off-road. Researching each component of the GM platform’s suspension and addressing any areas where performance could be extracted, a 25% increase in overall wheel travel was achieved. The Stage 1 system includes vehicle specific tuned 2.5 coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 1.75-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2015-UP GM Colorado/Canyon Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
ICON suspension systems lift your Colorado/Canyon while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
Recommended Aftermarket Tires: 32" x 11.00" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Vehicle specific tuned front and rear shocks for superior shock damping and control
TECH NOTE: Included rear shocks are compatible with 0-2" of rear lift over stock
100% Bolt-on system - no drilling or welding necessary for install
Improved ride quality over stock with no change in towing capacity
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
TECH NOTE: Canyon AT4 front lift height range is .75-2" over stock
FK Rod End bearings for extended longevity and minimal deflection
ICON 2015+ Chevrolet Colorado 1.75-3in Stage 1 Suspension System
2.0 Aluminum Series rear IFP shocks with 5/8" shock shafts
Height-adjustable coilovers offer 1.75-3" of lift height
6061 Aircraft grade aluminum CNC machined components
15-UP COLORADO 1.75-3" STAGE 1 SUSPENSION SYSTEM
15-22 COLORADO 1.75-3" STAGE 1 SUSPENSION SYSTEM
TECH NOTE: Not compatible with Colorado ZR2
25% increase in wheel travel over stock
15-UP COLORADO 1.75-3" STAGE 1 SYSTEM
OEM Wheels & Tires Fitment: Yes
Compatible with diesel models
Ships in multiple boxes
Fits 2WD and 4WD models
Suspension Lift Kit
SUSPENSION SYSTEM
K73051
