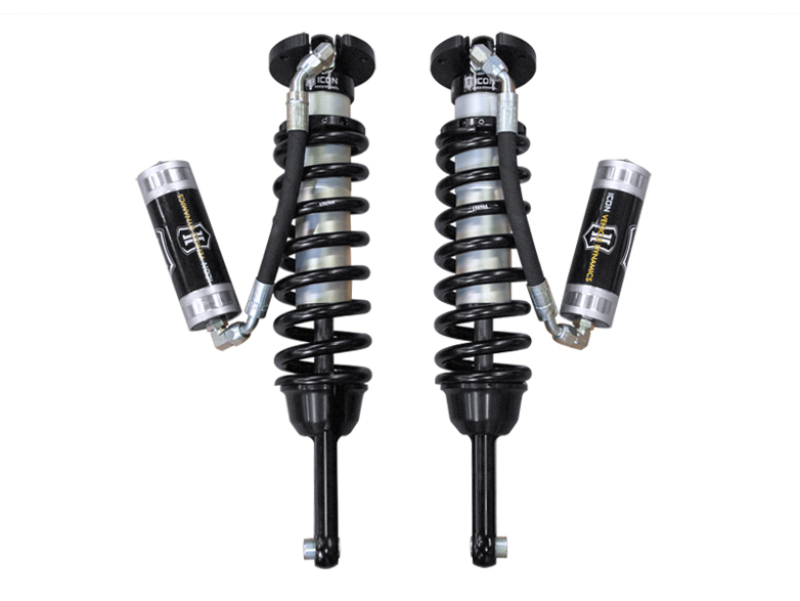

The ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover shocks are an incredible upgrade for the front end of the Toyota FJ Cruiser, 4Runner, and Lexus GX platforms. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. These extended length versions offer increased wheel travel but also require the installation of aftermarket upper control arms in conjunction with the coilovers. When paired with ICON 2.0 Aluminum Series or 2.5 Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Toyota or Lexus SUV.
These extended-travel ICON VS 2.5 Series coilovers offer increased wheel travel but also require the installation of aftermarket upper control arms. They are vehicle specific, 100% rebuildable, and 100% revalveable.
When paired with ICON 2.0 Aluminum Series or 2.5 Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Toyota or Lexus SUV.
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only.
High quality ICON-engineered coil springs guaranteed for life against sagging or breaking
Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
External reservoir to attain cooler operating temperatures during extended off-road use
Extended Travel length requires installation of aftermarket front upper control arms
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset
APPLICATION NOTE #47: 700lb coil spring available for heavier equipped vehicles.
Recommended Aftermarket Wheels: ICON Alloys - 20x9 w/ 5" Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 w/ 5" Backspace / 0mm Offset
ICON 2010+ Toyota FJ/4Runner Ext Travel 2.5 Series Shocks VS RR Coilover Kit
Superior low speed control reduces body roll and increases on-road stability
TECH NOTE: Aftermarket front upper control arms required for installation
FK Rod End bearings provide extended longevity and minimal deflection
2010-UP FJ/4RUNNER EXT TRAVEL 2.5 VS REMOTE RESERVOIR COILOVER KIT
Bolt-in design makes for an easy install into OEM shock location
10-14 FJ/10-24 4RNR/10-23 GX EXT TRAVEL 2.5 VS RR COILOVER KIT
Corrosion resistant CAD plated shock body with 7/8" shaft
10-UP FJ/4RNR/10-UP GX EXT TRAVEL 2.5 VS RR COILOVER KIT
Adjustable coilovers yield 0-3.5" of front lift height
10-UP FJ/T4R/GX EXT 2.5 VS RR CO KIT
Factory Wheels & Tires Fitment: Yes
FJ/T4R/GX COILOVERS
COILOVER KIT
Coilover Set
58747
