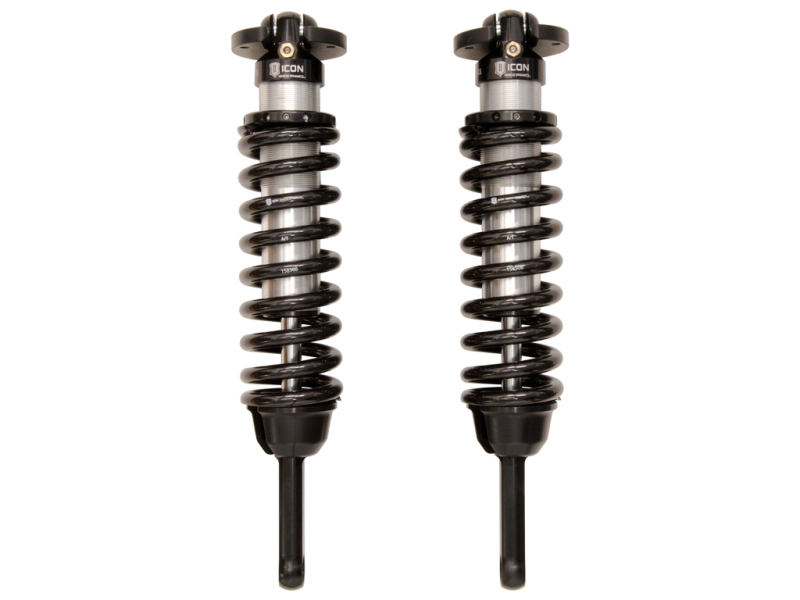

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460. These adjustable coilovers allow up to 0-3.5” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. Their extended travel shock length yields the maximum travel possible with aftermarket front upper control arms and ICON’s Vehicle-specific valving along with the larger 2.5” shock body and increased piston area over stock components provide superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota 4Runner, FJ Cruiser or Lexus GX460.
ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. These extended length versions offer increased wheel travel but also require the installation of aftermarket upper control arms in conjunction with the coilovers. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable.
These extended length ICON VS 2.5 Series coilovers offer increased wheel travel but also require the installation of aftermarket upper control arms. They are vehicle specific, 100% rebuildable, and 100% revalveable.
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
2010-2014 FJ CRUSIER/2010-UP 4RUNNER/2010-UP GX460 EXTENDED TRAVEL 2.5 VS INTERNAL RESERVOIR COILOVER KIT
High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only.
Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset
Extended Travel length requires installation of aftermarket front upper control arms
APPLICATION NOTE #47: 700lb coil spring available for heavier equipped vehicles.
Recommended Aftermarket Wheels: ICON Alloys - 20x9 w/ 5" Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 w/ 5" Backspace / 0mm Offset
ICON 2010+ Toyota FJ/4Runner Ext Travel 2.5 Series Shocks VS IR Coilover Kit
Superior low speed control reduces body roll and increases on-road stability
TECH NOTE: Aftermarket front upper control arms required for installation
FK Rod End bearings provide extended longevity and minimal deflection
Bolt-in design makes for an easy install into OEM shock location
10-14 FJ/10-24 4RNR/10-23 GX EXT TRAVEL 2.5 VS IR COILOVER KIT
Corrosion resistant CAD plated shock body with 7/8" shaft
10-UP FJ/4RNR/10-UP GX EXT TRAVEL 2.5 VS IR COILOVER KIT
Adjustable coilovers yield 0-3.5" of front lift height
10-UP FJ/T4R/GX EXT 2.5 VS IR CO KIT
Factory Wheels & Tires Fitment: Yes
FJ/T4R/GX COILOVERS
COILOVER KIT
Coilover Set
58647
