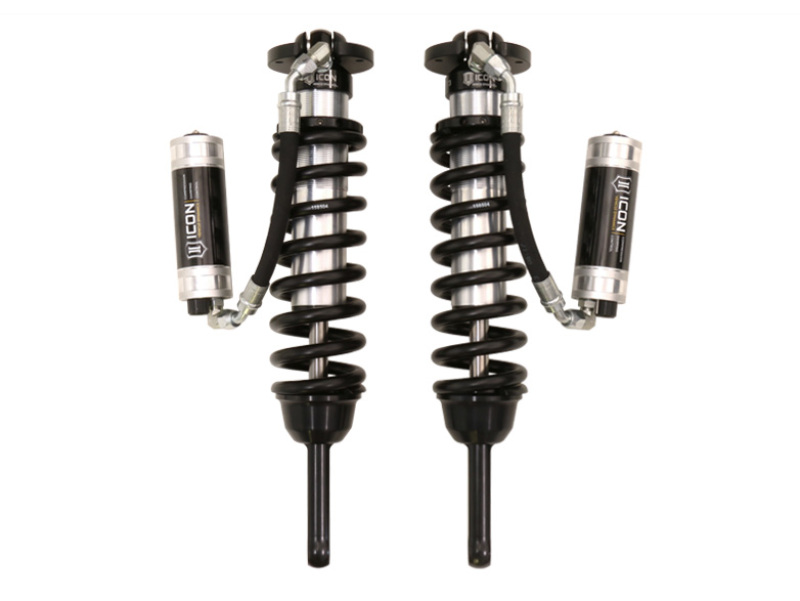

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460. These adjustable coilovers allow up to 0-3.5” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible, while still being compatible with the vehicle’s stock front upper control arms, along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota 4Runner, FJ Cruiser or Lexus GX460.
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride quality across varying types of terrain.
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
TECH NOTE: Standard travel length coilovers are compatible with stock front upper control arms
Remote reservoirs maintain cooler operating temperatures during extended off-road use
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset
APPLICATION NOTE #47: 700lb coil spring available for heavier equipped vehicles.
Recommended Aftermarket Wheels: ICON Alloys - 18x9 w/ 5" Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 w/ 5" Backspace / 0mm Offset
ICON CDCV equipped for 10 settings of external compression damping adjustment
100% Bolt-on - no drilling, cutting or welding necessary for installation
ICON 2010+ Toyota FJ/4Runner 2.5 Series Shocks VS RR CDCV Coilover Kit
Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
Adjustable ride height for 0-3.5" of front lift height over stock
FK rod end bearings for extended longevity and minimal deflection
Vehicle specific tuned for superior shock damping and control
2010-UP FJ/4RUNNER 2.5 VS REMOTE RESERVOIR CDCV COILOVER KIT
Increased wheel travel and improved ride quality over stock
6061 Aircraft grade aluminum CNC machined components
10-14 FJ/10-24 4RUNNER 2.5 VS RR CDCV COILOVER KIT
10-UP FJ/4RUNNER 2.5 VS RR CDCV COILOVER KIT
10-UP FJ/4RUNNER VS RR CDCV COILOVER KIT
Factory Wheels & Tires Fitment: Yes
Fully rebuildable and re-tunable
ICON engineered coil springs
FJ/T4R COILOVERS
COILOVER KIT
Coilover Set
58746C
