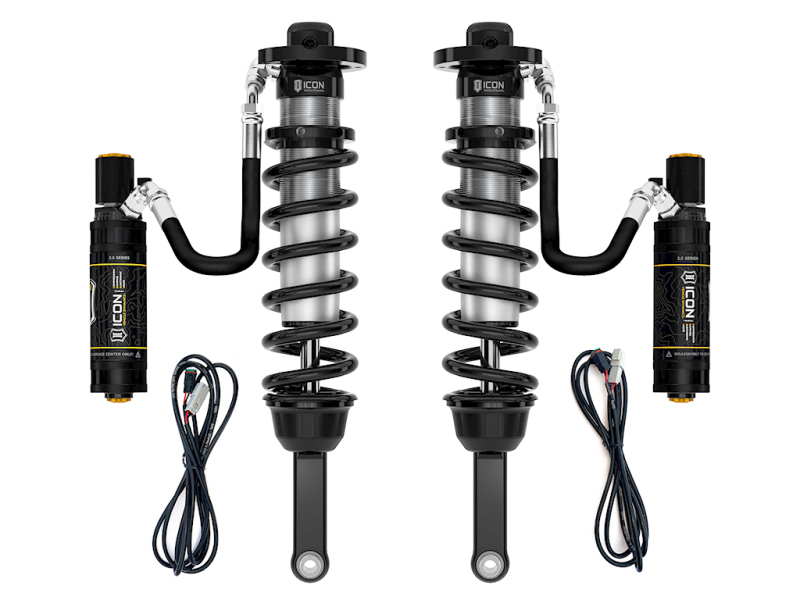

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDEV are an incredible upgrade for the front end of the 2010-2024 Toyota 4runner. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.
Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
These extended-travel ICON VS 2.5 Series coilovers offer increased wheel travel but also require the installation of aftermarket upper control arms. They are vehicle specific, 100% rebuildable, and 100% revalveable.
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
TECH NOTE: Also requires installation of IIC kit (Part # 53504) and CDEV rear shocks (Part # 57810EP)
Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only.
External reservoirs to attain cooler operating temperatures during extended off-road use
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset
TECH NOTE: An iOS operated device is required to run ICON Intelligent Control App
2010-UP TOYOTA 4RUNNER EXTENDED TRAVEL 2.5 VS REMOTE RESERVOIR CDEV COILOVER KIT
APPLICATION NOTE #47: 700lb coil spring available for heavier equipped vehicles.
Recommended Aftermarket Wheels: ICON Alloys - 18x9 w/ 5" Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 w/ 5" Backspace / 0mm Offset
ICON 2010+ Toyota 4Runner 2.5 Series Ext Travel VS RR CDEV Coilover Kit
TECH NOTE: Only compatible with models equipped with 4.0L V6 engine
FK rod end bearings for extended longevity and minimal deflection
Bolt-on kit - no cutting or welding necessary for installation
Vehicle specific tuned for superior shock damping and control
10-UP 4RUNNER EXT TRAVEL 2.5 VS RR CDEV COILOVER KIT
10-24 4RUNNER EXT TRAVEL 2.5 VS RR CDEV COILOVER KIT
6061 Aircraft grade aluminum CNC machined components
Increased wheel travel and ride quality over stock
Adjustable for 0-3.5" of lift height over stock
10-UP 4RUNNER EXT 2.5 RR CDEV CO KIT
Factory Wheels & Tires Fitment: Yes
ICON engineered Eibach Springs
CDEV COILOVER KIT
100% Revalveable
100% Rebuildable
COILOVER KIT
Coilover Set
58747E
