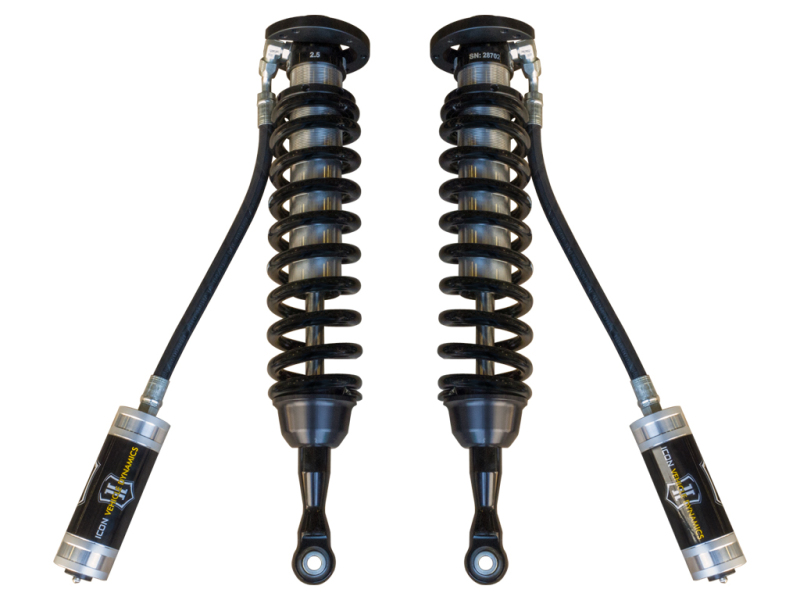

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2007-2021 Toyota Tundra and 2008-2022 Toyota Sequoia. These adjustable coilovers allow up 1-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.
ICON Vehicle Dynamics has taken their already perfect performing coil-over shocks and given it the heat dissipation and long lasting performance of a full blown race shock. All of this has been developed to bolt on and install with ease. They increase suspension travel and dramatically increase the capabilities of your Tundra's front suspension. These coil-over’s come complete with all the hardware necessary to complete the installation.
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride quality across varying types of terrain.
APPLICATION NOTE #24: Factory UCA's will not align properly past 2.5” of lift. Above 2.5” of lift an aftermarket UCA is recommended.
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset
Remote reservoirs maintain cooler operating temperatures during extended off-road use
Height-adjustable coilovers offer 1.-3" of lift height adjustment over stock
Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
APPLICATION NOTE #110: Trimming required for recommended tire size
FK rod end bearings for extended longevity and minimal deflection
ICON 2007+ Toyota Tundra 2.5 Series Shocks VS RR Coilover Kit
2007-2021 TOYOTA TUNDRA 2.5 VS REMOTE RESERVOR COILOVER KIT
Vehicle specific shock length yields maximum wheel travel
6061 Aircraft grade aluminum CNC machined components
Hose Length Optimized for Increased Fluid Transfer
07-21 TUNDRA/08-22 SEQUOIA 2.5 VS RR COILOVER KIT
2.5" diameter shock bodies with remote reservoirs
07-21 TUNDRA 2.5 VS RR COILOVER KIT
Fully rebuildable and re-tunable
OEM Wheels & Tires Fitment: Yes
TUNDRA 2.5 VS RR COILOVER KIT
ICON engineered coil springs
COILOVER KIT
Coilover Set
58750
