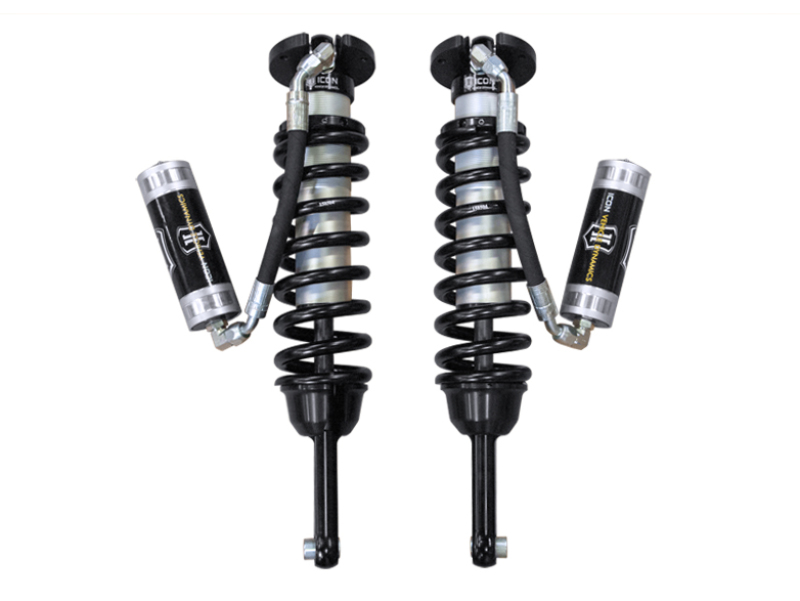

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
ICON Vehicle Dynamics has taken their already perfect performing coilover shocks and given it the heat dissipation and long lasting performance of a full blown race shock. All of this has been developed to bolt on and install with ease. They increase suspension travel and dramatically increase the capabilities of your Tacoma's front suspension. These coilovers come complete with all the hardware necessary to complete the installation as well as a sway bar relocation bracket kit to adjust the location of the sway bar to clear the larger shock. These coil-over’s are meant to be installed with an aftermarket uniball upper control arm kit to ensure the proper amount of wheel travel and to prevent premature ball joint wear.
These extended length ICON VS 2.5 Series coilovers offer increased wheel travel but also require the addition of aftermarket upper control arms. They feature remote reservoirs, are vehicle specific, 100% rebuildable, and 100% revalveable.
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25” Beyond Maximum
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock
TECH NOTE: 2017-UP Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
TECH NOTE: 2005-2015 Toyota Tacoma will have front lift height range of 0-3.5" over stock
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
APPLICATION NOTE #47: 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
Extended Travel length requires installation of aftermarket front upper control arms
ICON 2005+ Toyota Tacoma Ext Travel 2.5 Series Shocks VS RR Coilover Kit
Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
APPLICATION NOTE #109: 2016-2023 Tacoma Lift Range Is 0-2.75”
2005-UP TACOMA EXT TRAVEL 2.5 VS REMOTE RESERVOIR COILOVER KIT
Vehicle specific tuned for superior shock damping and control
Hose Length Optimized for Increased Fluid Transfer
05-UP TACOMA EXT TRAVEL 2.5 VS RR COILOVER KIT
05-23 TACOMA EXT TRAVEL 2.5 VS RR COILOVER KIT
250 PSI nitrogen-charged internal reservoir
External Reservoirs Ensures Maximum Cooling
Kit Includes Sway bar relocation brackets
05-UP TACOMA EXT 2.5 VS RR CO KIT
5/8" PTFE-lined spherical bearing
OEM Wheels & Tires Fitment: Yes
ICON engineered coil springs
Billet aluminum upper mount
CAD-plated threaded body
Completely re-buildable
TACOMA COILOVERS
Coilover Set
58735
