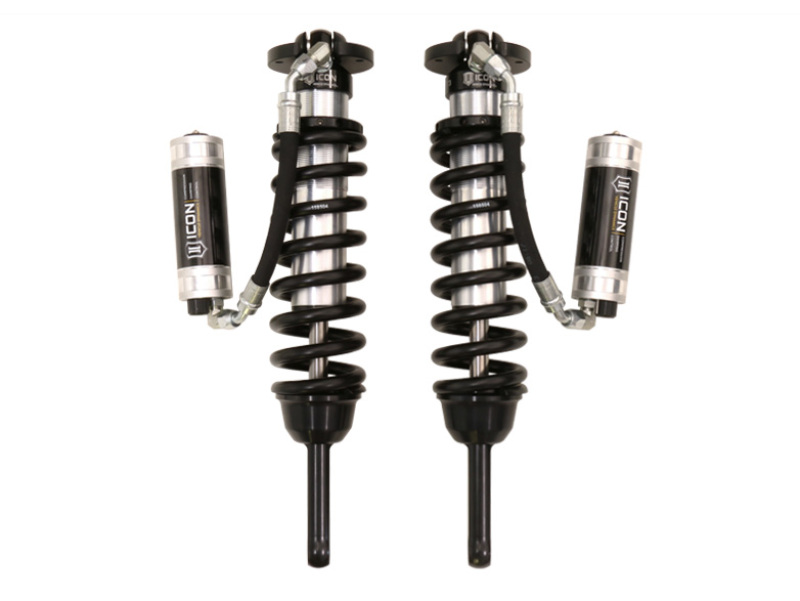

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
These ICON extended-travel coilovers feature 2.5 Series shocks with remote reservoirs and coil springs optimized per application. These hardcore units are outfitted with ICON’s CDCV which offers 10 points of adjustability.
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25” Beyond Maximum
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock
TECH NOTE: 2017-UP Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
TECH NOTE: 2005-2015 Toyota Tacoma will have front lift height range of 0-3.5" over stock
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
APPLICATION NOTE #47: 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
Extended Travel length requires installation of aftermarket front upper control arms
ICON 2005+ Toyota Tacoma Ext Travel 2.5 Series Shocks VS RR CDCV Coilover Kit
ICON CDCV equipped for 10 settings of external compression damping adjustment
Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
2005-UP TACOMA EXT TRAVEL 2.5 VS REMOTE RESERVOIR CDCV COILOVER KIT
APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
APPLICATION NOTE #109: 2016-2023 Tacoma Lift Range Is 0-2.75”
Vehicle specific tuned for superior shock damping and control
05-UP TACOMA EXT TRAVEL 2.5 VS RR CDCV COILOVER KIT
05-23 TACOMA EXT TRAVEL 2.5 VS RR CDCV COILOVER KIT
Hose Length Optimized for Increased Fluid Transfer
External Reservoirs Ensures Maximum Cooling
Kit Includes Sway bar relocation brackets
05-UP TACO EXT 2.5 RR CDCV COILOVER KIT
5/8" PTFE-lined spherical bearings
OEM Wheels & Tires Fitment: Yes
ICON engineered coil springs
Billet aluminum upper mount
CAD-plated threaded body
Completely re-buildable
TACOMA COILOVERS
COILOVER KIT
Coilover Set
58735C
